Engine-Carburettor, Tank

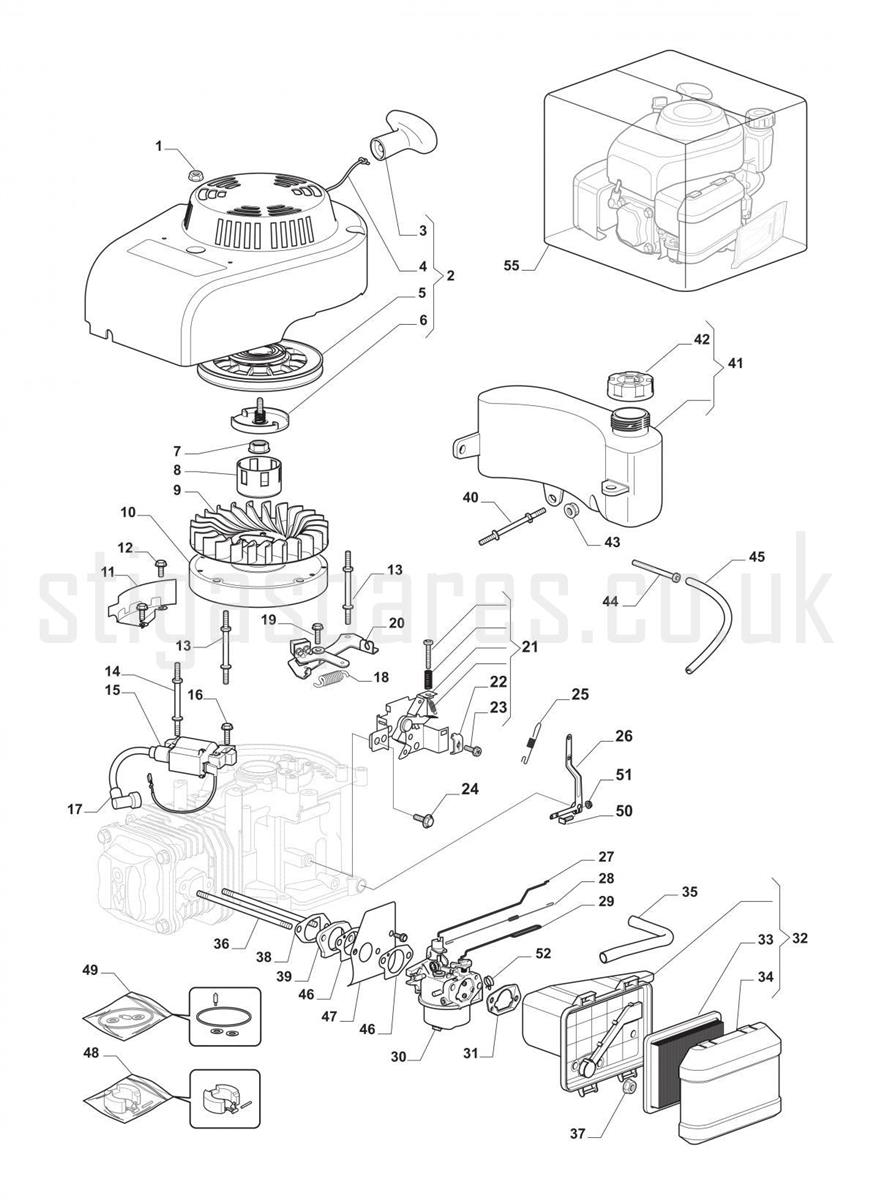

Engine-Carburettor, Tank assembly details for Stiga MULTIMOWER 53 S 295536148 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
002118550276/1RECOIL ASSEMBLY 140/160cc [WBE]£53.42 Add to
003118550274/0RECOIL HANDLE£15.81 Add to
004118550779/0RECOIL ROPE£7.63 Add to
005118550778/0RECOIL PULLEY & SPRING£27.27 Add to
006118550275/1STARTER PAWL KIT£12.68 Add to
007118550336/0NUT£6.42 Add to
008118550335/0STARTER CUP£22.61 Add to
009118550254/0FLYWHEEL FAN£21.26 Add to
010118550253/0FLYWHEEL£90.98 Add to
011118550774/0GUARD£7.92 Add to
012112791213/1SCREW M6 X 18£1.74 Add to
013118550302/0STUD BOLT (OBSOLETE)N/A
014118550301/0STUD BOLT£7.10 Add to
015118550255/1IGNITION COIL£54.79 Add to
016112791500/0SCREW TE M6x25 UNI 5739 ACC.8.8£2.06 Add to
017118551274/0SPARK PLUG CAP (OBSOLETE) (OBSOLETE)N/A
018118551288/0TENSION SPRING£2.00 Add to
019112791500/0SCREW TE M6x25 UNI 5739 ACC.8.8£2.06 Add to
020118551205/0FLYWHEEL BRAKE/STOP ASSEMBLY£32.99 Add to
021118550259/0THROTTLE CONTROL ASSEMBLY£31.42 Add to
022118550337/0CASING CLAMP£12.37 Add to
023118550338/0SCREW£7.36 Add to
024112791213/1SCREW M6 X 18£1.74 Add to
025118550260/0SPRING£4.37 Add to
026118550266/0GOVERNOR ARM£14.82 Add to
027118550397/0GOVERNOR LINK£2.87 Add to
028118550263/0SPRING£3.15 Add to
029118550264/0CHOKE CONTROL ROD£3.83 Add to
030118550390/0CARBURETTOR£77.95 Add to
031118550738/0CARBURETTOR GASKET£6.69 Add to
032118550737/0AIR FILTER ASSEMBLY£21.12 Add to
033118550257/0PAPER AIR FILTER£9.24 Add to
034118550739/0AIR FILTER COVER£7.92 Add to
035118550377/0BREATHER FUEL PIPE£4.91 Add to
036118550930/0STUD BOLT£5.92 Add to
037112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
038118550929/0GASKET£2.06 Add to
039118550928/0CARBURETTOR INSULATOR£3.41 Add to
040118550315/0STUD BOLT£8.04 Add to
041118550316/1FUEL TANK£42.53 Add to
042118550339/1FUEL TANK CAP£7.24 Add to
043118550806/0NUT£2.14 Add to
044118550314/0FUEL FILTER£4.78 Add to
045118550340/0FUEL PIPE£8.32 Add to
046118551264/0CARBURETTOR GASKET£4.43 Add to
047118551266/0GUARD£6.73 Add to
048118550388/0CARBURETTOR FLOAT KIT£14.89 Add to
049118550743/0ENGINE GASKET SET (WBE0701-02)£16.94 Add to
050118550805/0BOLT£4.01 Add to
051118550806/0NUT£2.14 Add to
052118550918/0PIPE CLIP£2.06 Add to
055118550408/0ENGINE ASSEMBLY 160cc WBE0701£279.08 Add to
