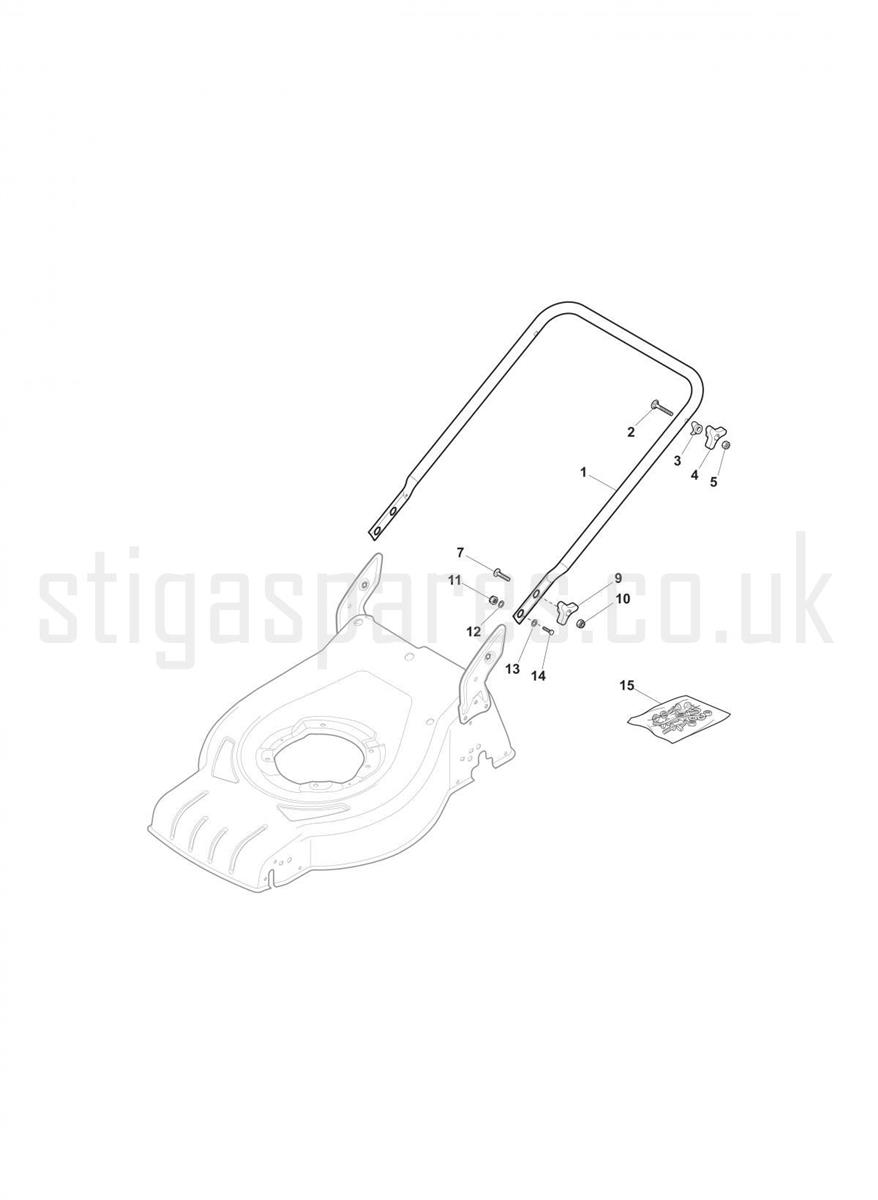

Handle, Lower Part

Handle, Lower Part assembly details for Stiga COMBI 53 S 295536048 2016 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	381007538/0	LOWER HANDLE CR53 [YELLOW]	£25.67	Add to
002	112819110/0	CARRIAGE BOLT M8 x 50	£2.02	Add to
003	122671651/0	WASHER 8.3 x 22 x 2	£2.32	Add to
004	122399900/0	3 SPOKE HANDWHEEL [BLACK]	£2.06	Add to
005	112293200/0	HEXAGON NUT M8 UNI 5588 ACC.6S	£1.86	Add to
007	112818900/0	SCREW TTDQ M8 x 35	£1.97	Add to
009	122399900/0	3 SPOKE HANDWHEEL [BLACK]	£2.06	Add to
010	112293200/0	HEXAGON NUT M8 UNI 5588 ACC.6S	£1.86	Add to
011	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
012	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
013	112369500/0	SPRING WASHER D=8	£1.79	Add to
014	112760605/0	SCREW TBEI M8 X 20MM	£2.53	Add to
015	381008691/0	SCREWS ASSEMBLY KIT	£9.00	Add to
