Handle, Lower Part

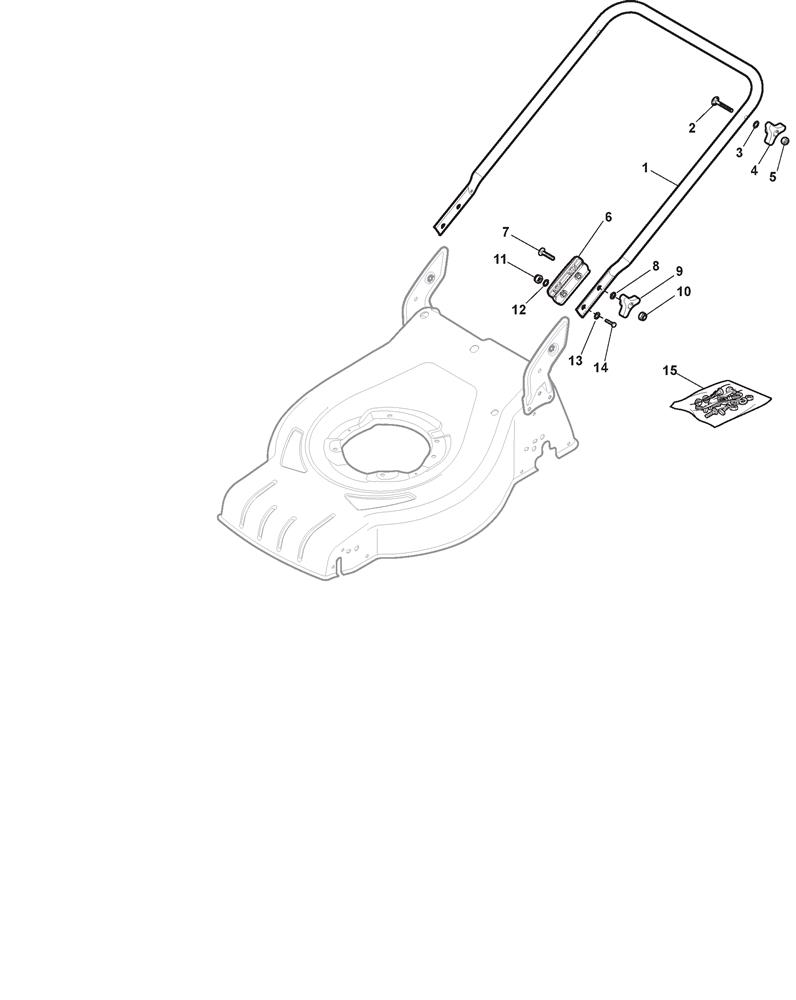

Handle, Lower Part assembly details for Stiga Combi 48 E (295487068/S14) 2021 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	381006735/0	LOWER HANDLE [BLACK] CR ELECTRIC	£16.79	Add to
002	112819110/0	CARRIAGE BOLT M8 x 50	£2.02	Add to
003	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
004	122399900/0	3 SPOKE HANDWHEEL [BLACK]	£2.06	Add to
005	112293200/0	HEXAGON NUT M8 UNI 5588 ACC.6S	£1.86	Add to
006	322551582/0	HANDLE INSULATOR	£2.06	Add to
007	112819110/0	CARRIAGE BOLT M8 x 50	£2.02	Add to
008	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
009	122399900/0	3 SPOKE HANDWHEEL [BLACK]	£2.06	Add to
010	112293200/0	HEXAGON NUT M8 UNI 5588 ACC.6S	£1.86	Add to
011	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
012	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
013	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
014	112793701/0	HEX-HEAD SCREW M8 x 30	£1.76	Add to
015	381008698/0	SCREW ASSEMBLY KIT	£10.91	Add to
