Deck

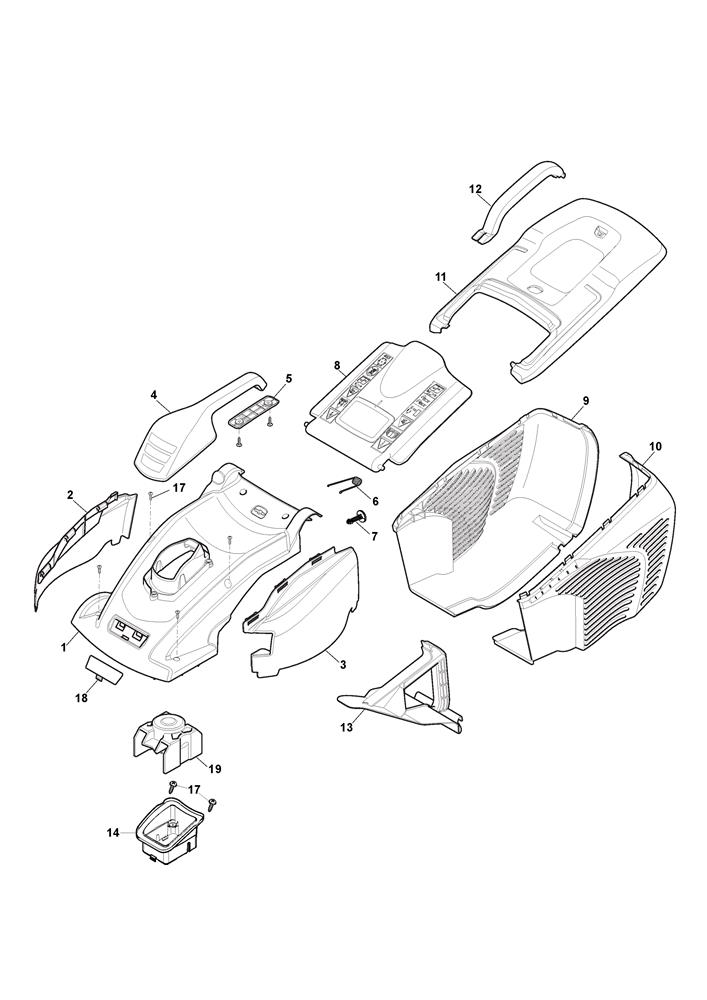

Deck assembly details for Stiga Combi 40 E (294380068/ST1) 2021 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322055175/0DELTA COVER EL 380 STIGA YELLOW£23.72 Add to
002322109565/0RIGHT SIDE COVER [GREY]£6.95 Add to
005322393659/0LOWER HANDLE COVER£7.92 Add to
006122450470/0SPRING£2.87 Add to
007322524356/0DEFLECTOR SECURITY PIN£1.79 Add to
008322600288/0DEFLECTOR [GREY]£14.86 Add to
009322486404/0LOWER R/H GRASSBOX EL380 [GREY]£22.45 Add to
010322486403/0LOWER L/H GRASSBOX EL380 [GREY]£22.45 Add to
011322486320/0GRASSCATCHER TOP [RED]£17.26 Add to
012322393718/0GRASSCATCHER HANDLE [GREY]£4.78 Add to
013322140242/0MULCHING PLUG [EL380]£13.77 Add to
014322393672/0MOTOR CASE£9.00 Add to
017112728714/0SELF-TAP SCREW K50 x 20£2.40 Add to
018322055252/0COVER PLATE [GREY]£2.06 Add to
019322393774/0BRUSH COVER X KINGLEAN MOTORS£2.74 Add to
