Controls

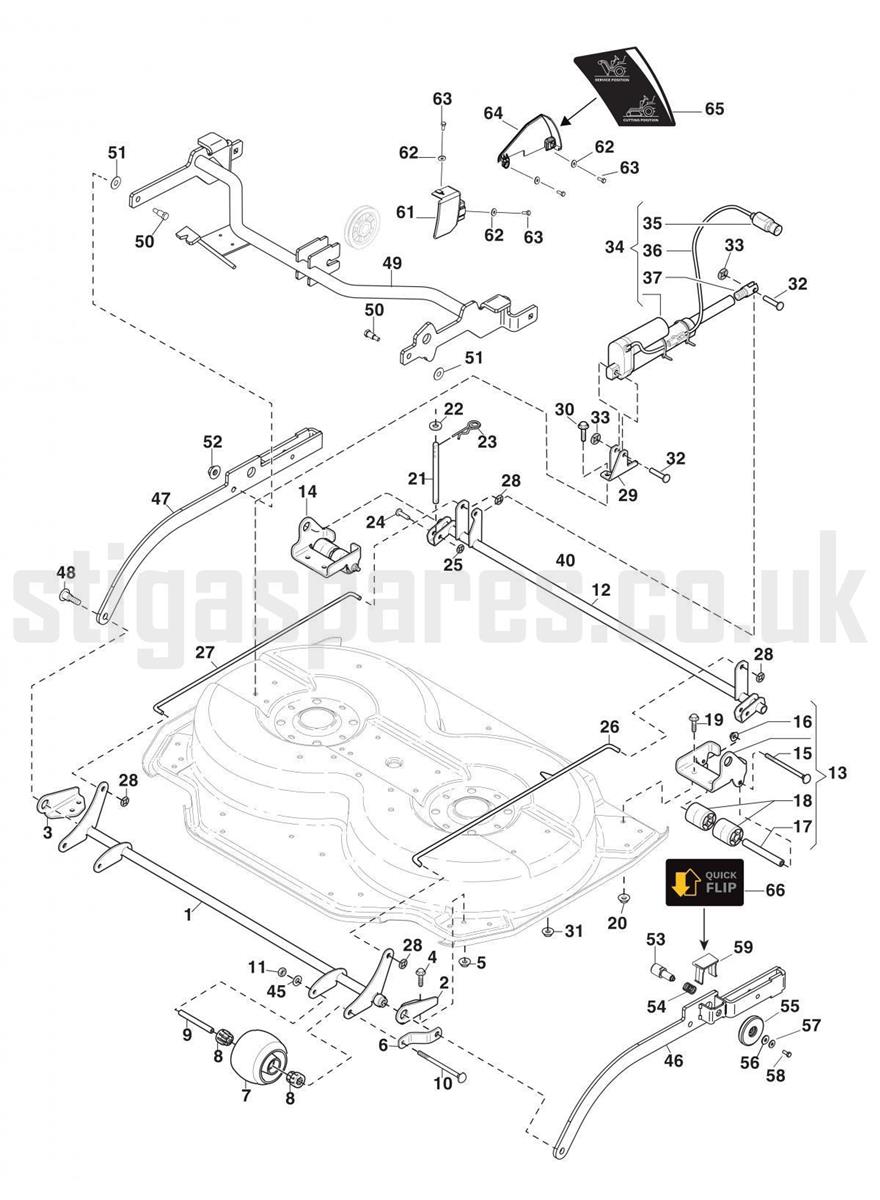

Controls assembly details for Stiga Stiga Deck Park 95 Combi EL QF 2D5809521 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-6275-01	FRONT AXLE [YELLOW]	£107.51	Add to
002	1134-6214-01	BRACKET FRONT-LH [YELLOW]	£12.61	Add to
003	1134-6214-02	BRACKET FRONT-RH [YELLOW]	£12.69	Add to
004	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
005	1137-0155-01	SPACER	£4.52	Add to
006	387318275/0	LEVER ARM	£4.35	Add to
007	1134-4284-01	WHEEL	£32.99	Add to
008	1134-4319-01	PLASTIC BUSH	£7.10	Add to
009	1134-4318-01	SPACER TUBE	£10.50	Add to
010	9897-0813-02	SCREW M8 x 130	£5.06	Add to
011	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
012	1134-6197-01	REAR AXLE [YELLOW]	£90.21	Add to
013	1134-6282-01	ROLLER ASSEMBLY L/H	£57.52	Add to
014	1134-6282-02	ROLLER ASSEMBLY R/H	£57.52	Add to
015	9897-0813-02	SCREW M8 x 130	£5.06	Add to
016	1137-0155-01	SPACER	£4.52	Add to
017	1134-4318-01	SPACER TUBE	£10.50	Add to
018	1134-9126-01	SUPPORT ROLLERS [2 PCS]	£43.89	Add to
019	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
020	1137-0155-01	SPACER	£4.52	Add to
021	137510321/0	DECK BRACKET PIN	£8.32	Add to
022	112521390/0	WASHER M16 17 x 30 x 3	£1.91	Add to
023	9598-2001-02	SPRING PIN	£5.19	Add to
024	9646-0098-22	RIVET 8 x 32	£2.87	Add to
025	112604899/0	STARLOCK WASHER RPCO 308 D=8	£2.06	Add to
026	387000311/0	PUSH ROD L/H HEIGHT ADJUST	£39.80	Add to
027	137033107/0	PUSH ROD R/H	£24.95	Add to
028	112604903/0	STARLOCK WASHER D=10	£2.06	Add to
029	1134-6192-01	BRACKET	£11.05	Add to
030	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
031	1137-0155-01	SPACER	£4.52	Add to
032	9646-0098-22	RIVET 8 x 32	£2.87	Add to
033	112604899/0	STARLOCK WASHER RPCO 308 D=8	£2.06	Add to
034	118001004/2	ELECTRIC LIFTER CD 95-100-105	£401.85	Add to
035	1134-6182-01	MALE TERMINAL	£28.12	Add to
036	387149301/0	ACTUATOR CABLE L=490	£23.72	Add to
037	1134-6373-01	ROD END (OBSOLETE)	N/A
045	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
046	387785237/0	MOWER DECK ARM LH 95 [GREY]	£116.11	Add to
047	387785235/0	MOWER DECK ARM RH 95 [GREY]	£124.82	Add to
048	1134-6279-01	SHOULDER BOLT	£2.74	Add to
049	387800021/1	REAR AXLE [GREY]	£480.54	Add to
050	137510305/0	SHOULDER BOLT	£5.29	Add to
051	322672151/0	ANTI-FRICTION WASHER 12.2 x 30 x 0.8	£1.91	Add to
052	112154210/0	SELF-LOCK WINGED NUT M8 DIN 6927	£2.06	Add to
053	137510306/0	SPRING GUIDE PIN	£8.19	Add to
054	137430104/0	DECK SPRING	£4.52	Add to
055	337394207/0	QF FM-CD ROTATION RELEASE KNOB	£6.27	Add to
056	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
057	112582101/0	WASHER M6	£2.06	Add to
058	112727802/0	SCREW TCB TORX M6 x 16	£2.06	Add to
059	337394202/0	Plugg Cap	£4.99	Add to
061	337060026/0	BACK SIDE COVER 85-95 DECK	£6.95	Add to
062	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
063	9893-0616-16	SCREW M6 x 16	£2.47	Add to
064	337060025/0	Belt cover	N/A	POA
065	114369577/0	SERVICE POSITION DECAL	£5.91	Add to
066	114369309/0	DECAL "QUICK FLIP" (OBSOLETE) (OBSOLETE)	N/A
