Transmission and Blades

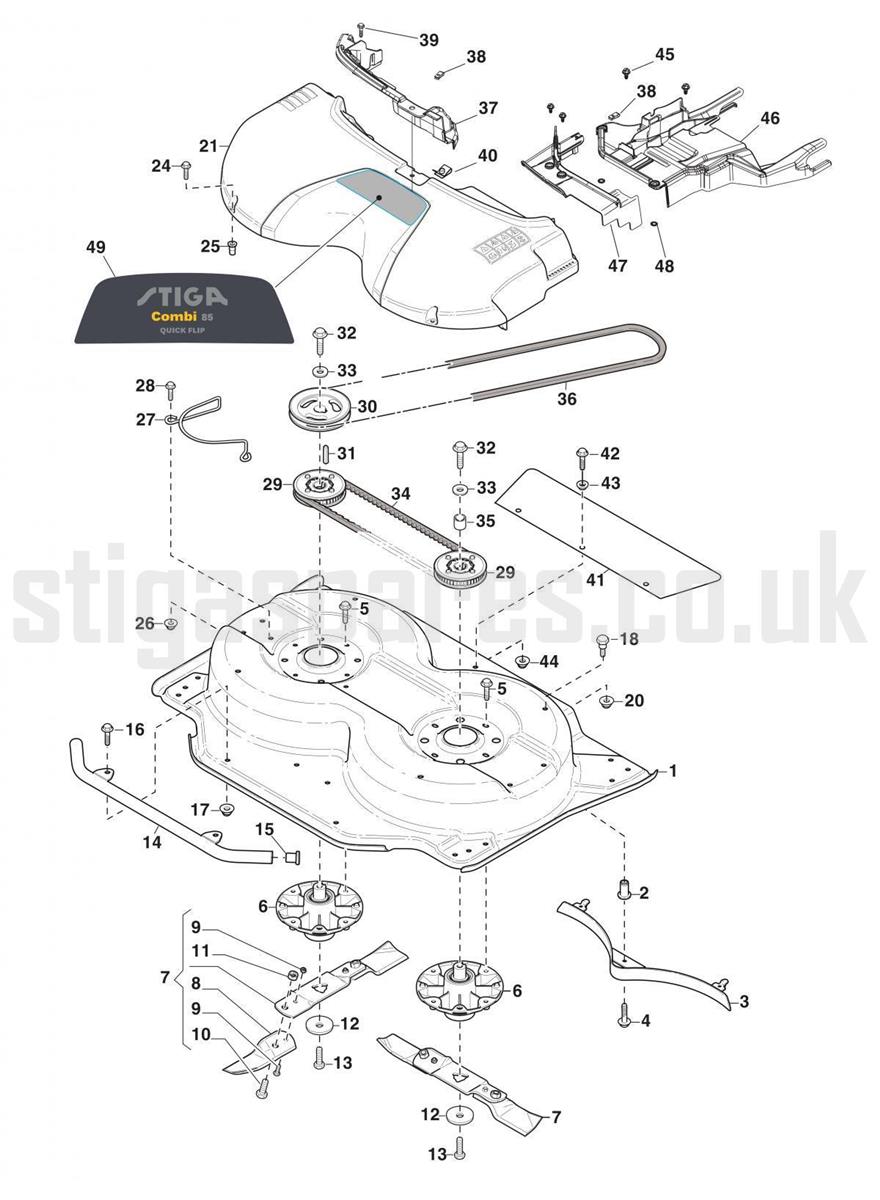

Transmission and Blades assembly details for Stiga Stiga Deck Park 85 Combi QF 2D5808511 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-6189-01	DECK CASING 85C [YELLOW] (OBSOLETE)	N/A
002	1134-5595-01	BLIND RIVET NUT	£8.32	Add to
003	1134-6227-01	MULCHING PLUG 85C	£41.97	Add to
004	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
005	9945-0825-16	SCREW M6SF M8 x 25	£2.32	Add to
006	387203000/0	SHORT BLADE SHAFT ASSEMBLY	£115.14	Add to
007	1134-9116-01	BLADE BAR ASSEMBLY 85C [2 PCS]	£95.67	Add to
008	1134-9119-01	BLADE TIP KIT [2 PCS]	£35.15	Add to
009	1134-9054-01	SHEAR BOLT KIT [6 x Bolts & Nuts]	£8.84	Add to
010	1134-6311-01	BOLT 7/16" UNF	£3.24	Add to
011	1134-6312-01	LOCK NUT 7/16" UNF	£2.87	Add to
012	1134-6211-01	BLADE WASHER	£3.55	Add to
013	112692395/1	SCREW M10 X 60 L=60MM	£3.64	Add to
014	387869259/0	FRONT GUARD TUBE [GREY]	£46.61	Add to
015	9403-0025-80	END PLUG [GREY]	£2.87	Add to
016	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
017	1137-0155-01	SPACER	£4.52	Add to
018	1134-0240-00	SCREW	£9.14	Add to
020	1137-0155-01	SPACER	£4.52	Add to
021	337060024/0	TRANSMISSION COVER	£42.53	Add to
024	9945-0825-16	SCREW M6SF M8 x 25	£2.32	Add to
025	1134-5595-01	BLIND RIVET NUT	£8.32	Add to
026	112154210/0	SELF-LOCK WINGED NUT M8 DIN 6927	£2.06	Add to
027	1134-6429-01	BELT GUIDE	£15.54	Add to
028	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
029	1134-9127-01	TOOTHED BELT PULLEY [2 PCS]	£47.48	Add to
030	1137-0010-01	PULLEY	£38.44	Add to
031	9600-0168-01	KEY	£4.52	Add to
032	112692395/1	SCREW M10 X 60 L=60MM	£3.64	Add to
033	1134-5406-01	WASHER M10 10.5 x 35 x 5	£4.23	Add to
034	1134-9182-01	TOOTHED BELT	£35.71	Add to
035	1134-5400-04	SPACER	£5.32	Add to
036	1134-9186-01	PTO DECK BELT [85C QF]	£51.64	Add to
037	337060020/0	FRONT BELT COVER	£11.18	Add to
038	112437504/0	FIXING PLATE	£2.06	Add to
039	112728440/0	SELF-TAPPING SCREW 4.8 x 13	£1.79	Add to
040	1134-4620-02	SPRING NUT	£8.32	Add to
041	1134-6281-01	RUBBER GUARD	£18.67	Add to
042	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
043	1134-4185-01	FLANGE WASHER	£6.71	Add to
044	1137-0155-01	SPACER	£4.52	Add to
045	125943011/0	SCREW	£9.82	Add to
046	337060021/0	REAR BELT COVER	£27.27	Add to
047	337600038/0	CENTRAL BELT COVER	£9.41	Add to
048	112604899/0	STARLOCK WASHER RPCO 308 D=8	£2.06	Add to
049	114369310/0	DECAL "COMBI 85 QUICK FLIP"	£9.54	Add to
