Transmission and Blades

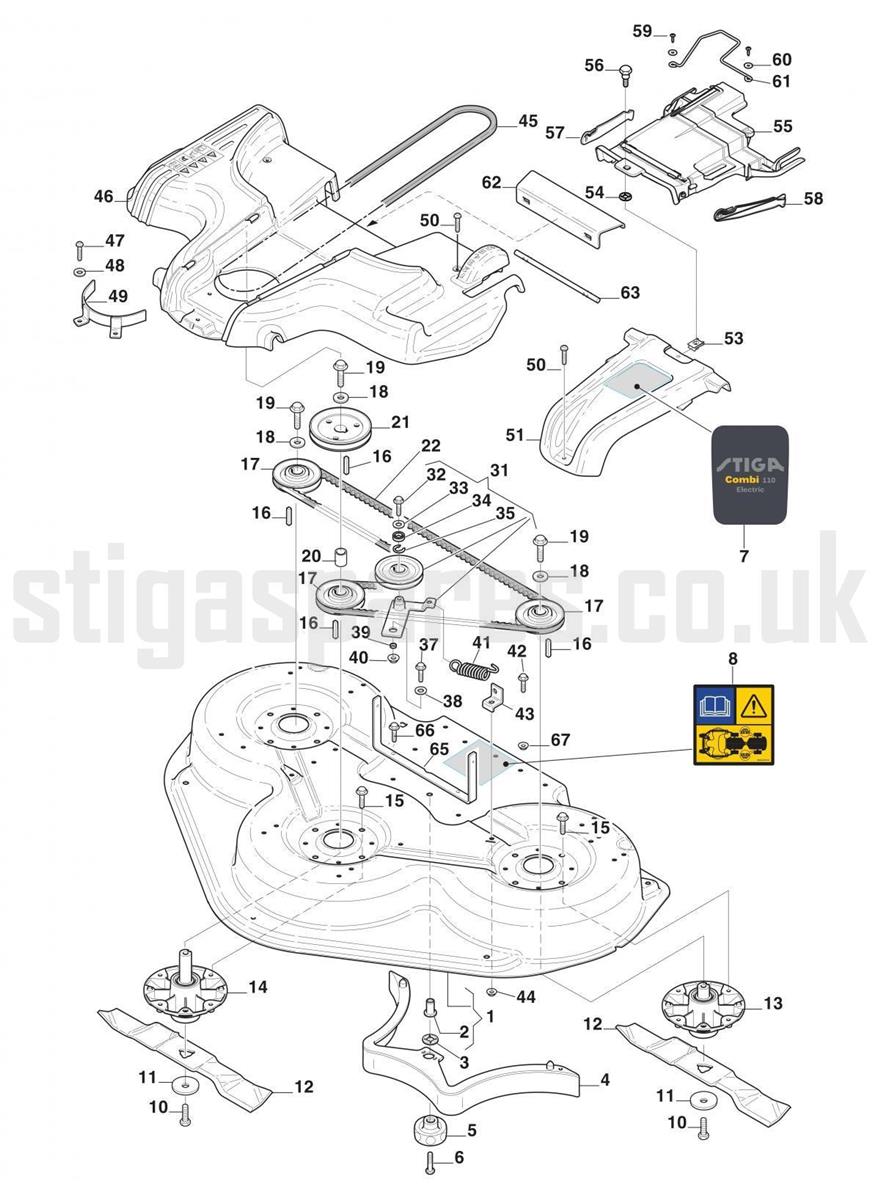

Transmission and Blades assembly details for Stiga Stiga Deck Park 125 C PRO EL 2D6312521 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-7750-01	DECK CASING 125C [GREY]	£616.83	Add to
002	1134-5595-01	BLIND RIVET NUT	£8.32	Add to
003	112604899/0	STARLOCK WASHER RPCO 308 D=8	£2.06	Add to
004	1134-5409-02	MULCH PLUG [BLACK]	£141.12	Add to
005	122399900/0	3 SPOKE HANDWHEEL [BLACK]	£2.06	Add to
006	112691115/0	HEX-HEAD SCREW M8 x 40	£2.06	Add to
007	114368553/0	DECAL "STIGA COMBI 125 EL"	£9.82	Add to
008	9402-3701-01	WARNING DECAL	£13.91	Add to
010	112692395/1	SCREW M10 X 60 L=60MM	£3.64	Add to
011	1134-6211-01	BLADE WASHER	£3.55	Add to
012	1134-9125-01	BLADE BAR ASSEMBLY-125C [3 PCS]	£101.13	Add to
013	387203000/0	SHORT BLADE SHAFT ASSEMBLY	£115.14	Add to
014	387203001/0	LONG BLADE SHAFT ASSEMBLY	£123.25	Add to
015	12	4 Grower (OBSOLETE)	N/A
016	9600-0171-01	FLAT KEY 6 x 6 x 25mm	£3.55	Add to
017	1137-0015-01	PULLEY D = 106mm	£28.90	Add to
018	1134-5406-01	WASHER M10 10.5 x 35 x 5	£4.23	Add to
019	112692395/1	SCREW M10 X 60 L=60MM	£3.64	Add to
020	1134-5400-03	SPACER (L=20mm)	£11.18	Add to
021	1137-0017-01	PULLEY D=150mm	£38.44	Add to
022	1134-9087-01	DECK BELT	£57.52	Add to
031	387605019/0	TENSION PULLEY ASSEMBLY	£111.34	Add to
032	1134-4242-01	SPACER WASHER	£4.78	Add to
033	1134-4176-01	CLIP	£5.19	Add to
034	9549-0061-01	Bearing	N/A	POA
035	9651-0035-04	Sparring Sgh 35 Circlip	N/A	POA
037	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
038	9699-0109-02	WASHER 10.5 x 40 x 2	£2.32	Add to
039	1134-7618-01	SPACER	£10.50	Add to
040	1137-0155-01	SPACER	£4.52	Add to
041	1134-0327-00	SPRING	£12.96	Add to
042	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
043	1134-5415-01	SPRING BRACKET	£14.45	Add to
044	1137-0155-01	SPACER	£4.52	Add to
045	1134-9103-01	DECK DRIVE BELT [KEVLAR] - 4WD	£54.79	Add to
045	1134-9152-01	DECK DRIVE BELT [KEVLAR] - 2WD	£52.13	Add to
046	337060013/0	TRANSMISSION COVER [DARK GREY]	£109.29	Add to
047	9893-0616-16	SCREW M6 x 16	£2.47	Add to
048	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
049	1134-6017-01	BELT GUIDE	£28.90	Add to
050	9893-0616-16	SCREW M6 x 16	£2.47	Add to
051	1137-0269-03	COVER [YELLOW]	£28.04	Add to
053	1134-4620-02	SPRING NUT	£8.32	Add to
054	9675-0016-02	STARLOCK WASHER D=11	£1.79	Add to
055	337060009/0	BELT COVER	£46.14	Add to
056	1134-0240-00	SCREW	£9.14	Add to
057	337785031/0	RIGHT BELT COVER SUPPORT	£5.87	Add to
058	337785033/0	LEFT BELT COVER SUPPORT	£5.87	Add to
059	112728699/0	SELF-TAPPING SCREW K60 x 22	£2.06	Add to
060	112521460/0	WASHER M6 6.5 x 22 x 1.5	£0.79	Add to
061	137294102/0	BELT GUIDE	£27.27	Add to
063	1137-1090-01	BELT GUIDE ROD	£15.06	Add to
064	1134-6103-01	WEAR PROTECTION PLATE	£35.71	Add to
065	1137-1080-01	DECK STOP BAR ASSEMBLY	£60.24	Add to
066	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
067	1137-0155-01	SPACER	£4.52	Add to
