Transmission and Blades

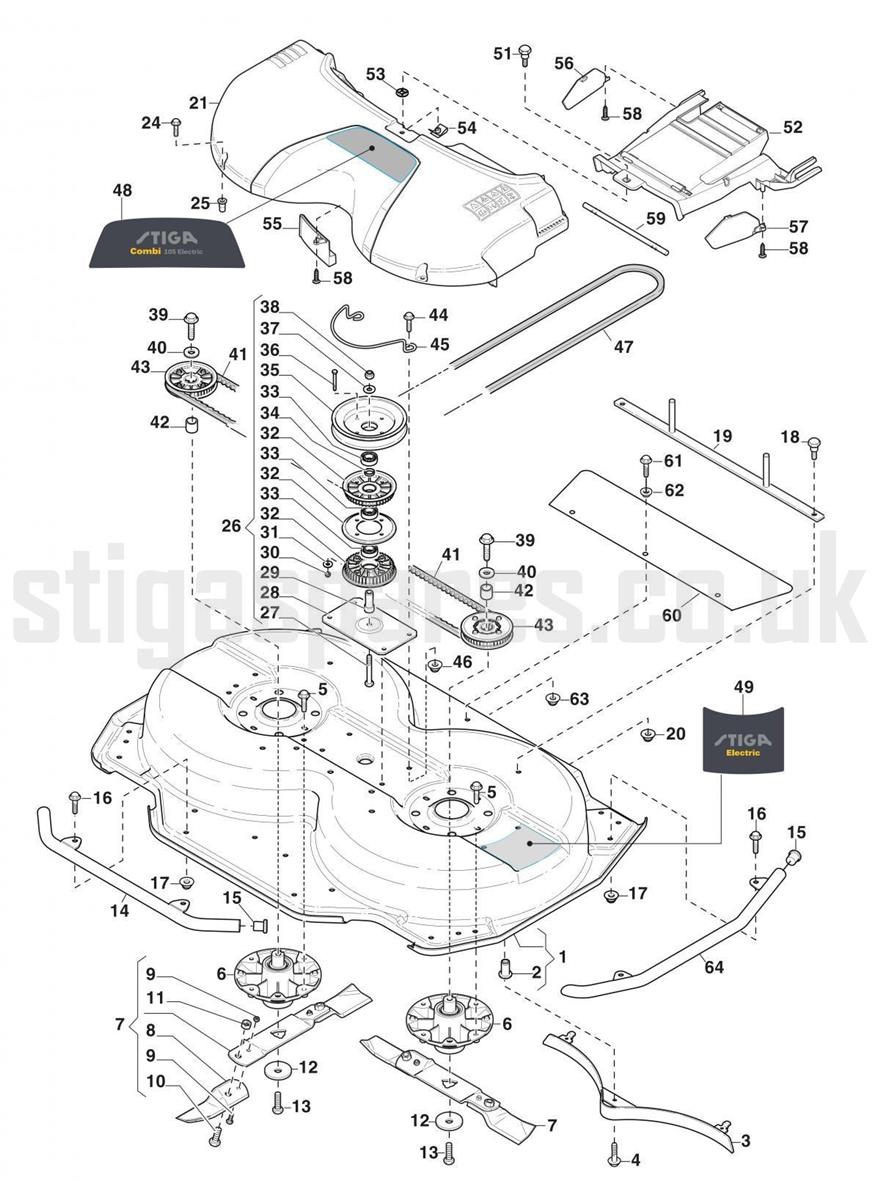

Transmission and Blades assembly details for Stiga Stiga Deck Park 105 Combi EL 2D6210521 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	387561521/0	DECK CASING 105C [YELLOW]	£593.05	Add to
002	1134-5595-01	BLIND RIVET NUT	£8.32	Add to
003	1134-6231-01	MULCH PLUG 105C	£44.72	Add to
004	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
005	9945-0825-16	SCREW M6SF M8 x 25	£2.32	Add to
006	387203000/0	SHORT BLADE SHAFT ASSEMBLY	£115.14	Add to
007	1134-9118-01	BLADE BAR ASSEMBLY-105C [2 PCS]	£115.38	Add to
008	1134-9119-01	BLADE TIP KIT [2 PCS]	£35.15	Add to
009	1134-9054-01	SHEAR BOLT KIT [6 x Bolts & Nuts]	£8.84	Add to
010	1134-6311-01	BOLT 7/16" UNF	£3.24	Add to
011	1134-6312-01	LOCK NUT 7/16" UNF	£2.87	Add to
012	1134-6211-01	BLADE WASHER	£3.55	Add to
013	9997-1060-12	SCREW M6S M10 x 60	£2.54	Add to
014	387869259/0	FRONT GUARD TUBE [GREY]	£46.61	Add to
015	9403-0025-80	END PLUG [GREY]	£2.87	Add to
016	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
017	1137-0155-01	SPACER	£4.52	Add to
018	1134-0240-01	SCREW	£9.82	Add to
019	1137-1082-01	DECK STOP BAR ASSEMBLY	£74.31	Add to
020	1137-0155-01	SPACER	£4.52	Add to
021	337060024/0	TRANSMISSION COVER	£42.53	Add to
024	9945-0825-16	SCREW M6SF M8 x 25	£2.32	Add to
025	1134-5595-01	BLIND RIVET NUT	£8.32	Add to
026	1137-0116-02	Toothed Pulley Assy (P105C) Inkl. pos 31 - 42	N/A	POA
027	9997-1070-12	SCREW M6S (M10 X 70)	£3.81	Add to
028	1134-6209-01	BRACKET	£46.61	Add to
029	1134-6205-02	SHAFT	£35.71	Add to
030	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
031	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
032	1134-9128-02	TOOTHED BELT PULLEY (95C-105C)	£69.49	Add to
033	120001215/0	BEARING 6203 2RS C3	£32.57	Add to
034	1134-3725-06	SPACER	£9.68	Add to
035	1137-0118-01	PULLEY	£109.88	Add to
036	9997-0650-12	SCREW M6S M6 x 50	£2.47	Add to
037	9699-0030-02	WASHER (10 X 26 X 2)	£2.14	Add to
038	9731-1031-22	LOCK NUT M6MF M10	£2.47	Add to
039	9997-1060-12	SCREW M6S M10 x 60	£2.54	Add to
040	1134-5406-01	WASHER M10 10.5 x 35 x 5	£4.23	Add to
041	1134-9189-02	TOOTHED BELT [105C]	£50.70	Add to
042	1134-5400-04	SPACER	£5.32	Add to
043	1134-9127-01	TOOTHED BELT PULLEY [2 PCS]	£47.48	Add to
044	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
045	1134-6431-01	BELT GUIDE	£16.91	Add to
046	1137-0155-01	SPACER	£4.52	Add to
047	1134-9149-01	DECK DRIVE BELT [KEVLAR]	£50.70	Add to
047	1134-9150-01	DECK DRIVE BELT [KEVLAR]	£62.97	Add to
048	114368551/0	DECAL "STIGA COMBI 105 EL"	£10.42	Add to
049	114368564/0	DECAL "STIGA ELECTRIC"	£10.42	Add to
051	1134-0240-00	SCREW	£9.14	Add to
052	337600002/0	BELT COVER [BLACK]	£23.58	Add to
053	9675-0016-02	STARLOCK WASHER D=11	£1.79	Add to
054	1134-4620-02	SPRING NUT	£8.32	Add to
055	337600006/0	FRONT BELT COVER [BLACK]	£6.71	Add to
056	337600004/0	RIGHT BELT COVER [BLACK]	£6.14	Add to
057	337600005/0	LEFT BELT COVER [BLACK]	£5.71	Add to
058	9838-8822-19	SCREW K60 x 22	£2.06	Add to
059	1137-1090-01	BELT GUIDE ROD	£15.06	Add to
060	1134-6281-03	RUBBER GUARD	£22.22	Add to
061	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
062	1134-4185-01	FLANGE WASHER	£6.71	Add to
063	1137-0155-01	SPACER	£4.52	Add to
064	387869263/0	SIDE GUARD TUBE [GREY]	£60.24	Add to
