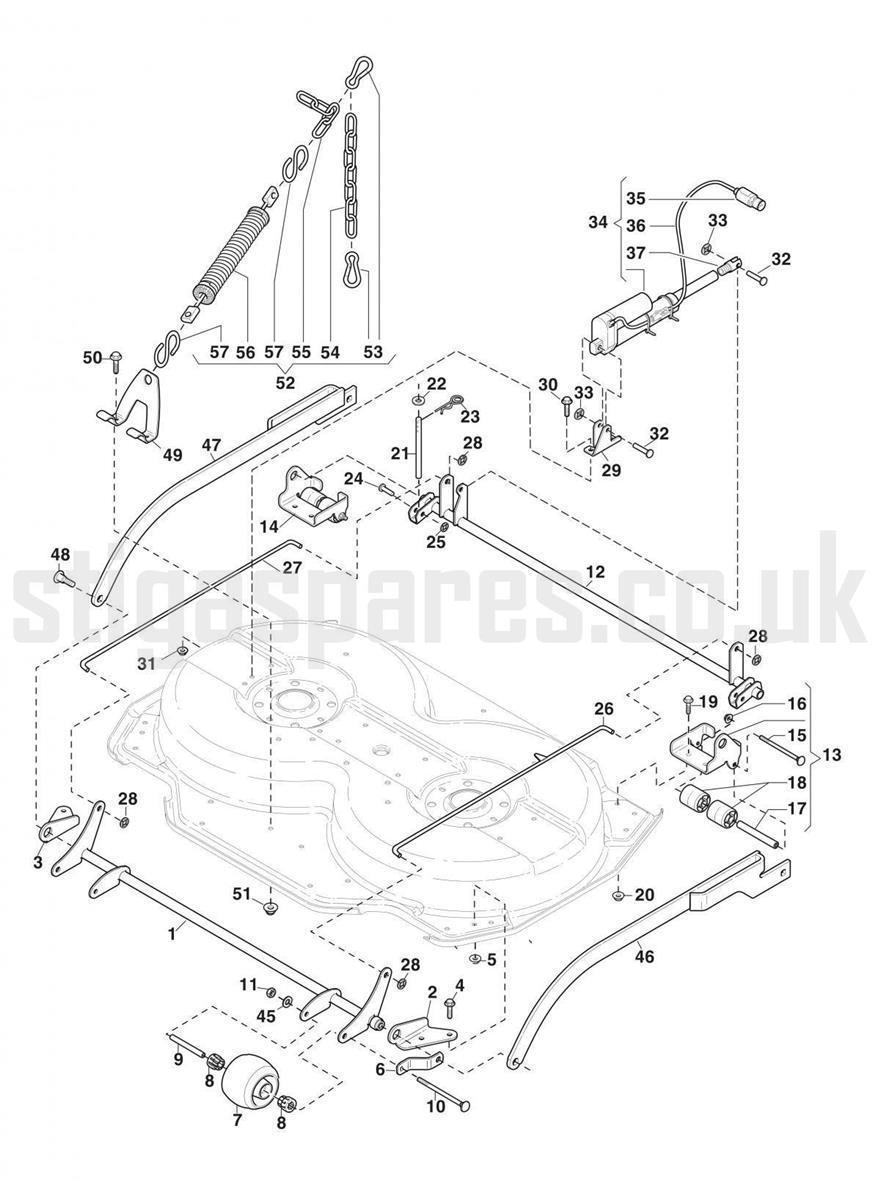

Controls assembly details for Stiga Stiga Deck Park 105 Combi EL 2D6210521 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

0011134-6275-01FRONT AXLE [YELLOW]£100.41 Add to
0021134-6215-01BRACKET FRONT-LH [YELLOW]£14.74 Add to
0031134-6215-02BRACKET FRONT-RH [YELLOW]£14.74 Add to
004112800815/0SCREW TE FL M8 x 16£2.90 Add to
0051137-0155-01SPACER£5.17 Add to
006387318275/0LEVER ARM£5.02 Add to
0071134-4284-01WHEEL£31.50 Add to
0081134-4319-01PLASTIC BUSH£7.56 Add to
0091134-4318-01SPACER TUBE£10.71 Add to
0109897-0813-02SCREW M8 x 130£5.68 Add to
011112154220/0SELF-LOCK NUT M8£2.90 Add to
0121134-6197-01REAR AXLE [YELLOW]£84.41 Add to
0131134-6282-01ROLLER ASSEMBLY L/H£54.18 Add to
0141134-6282-02ROLLER ASSEMBLY R/H£54.18 Add to
0159897-0813-02SCREW M8 x 130£5.68 Add to
0161137-0155-01SPACER£5.17 Add to
0171134-4318-01SPACER TUBE£10.71 Add to
0181134-9126-01SUPPORT ROLLERS [2 PCS]£41.58 Add to
019112800815/0SCREW TE FL M8 x 16£2.90 Add to
0201137-0155-01SPACER£5.17 Add to
0211134-6198-01STUD£18.33 Add to
022112521390/0WASHER M16 17 x 30 x 3£2.77 Add to
0239598-2001-02SPRING PIN£5.80 Add to
0249646-0098-22RIVET 8 x 32£3.65 Add to
025112604899/0STARLOCK WASHER RPCO 308 D=8£2.90 Add to
0261134-6250-01PUSH ROD-LH£21.42 Add to
0271134-6246-01PUSH ROD-RH£15.62 Add to
028112604903/0STARLOCK WASHER D=10£2.90 Add to
0291134-6192-01BRACKET£11.21 Add to
0309959-0820-16SCREW M6SF M8 x 20 TL£2.90 Add to
0311137-0155-01SPACER£5.17 Add to
0329646-0098-22RIVET 8 x 32£3.65 Add to
033112604899/0STARLOCK WASHER RPCO 308 D=8£2.90 Add to
034118001004/2ELECTRIC LIFTER CD 95-100-105£372.56 Add to
0351134-6182-01MALE TERMINAL£24.07 Add to
036387149301/0ACTUATOR CABLE L=490£22.93 Add to
0371134-6373-01ROD END£35.51 Add to
046387106269/0L/H LIFTING DECK ARM 105C£99.54 Add to
047387106267/0R/H LIFTING DECK ARM 105C£99.54 Add to
0481134-6279-01SHOULDER BOLT£3.53 Add to
050112800815/0SCREW TE FL M8 x 16£2.90 Add to
0511137-0155-01SPACER£5.17 Add to
0521134-6362-01LIFT SPRING ASSEMBLY£125.16 Add to
0531134-5528-01SNAP HOOK£5.17 Add to
0541134-6368-02CHAIN [7 LINKS]£24.07 Add to
0551134-6368-01CHAIN [4 LINKS]£11.57 Add to
0561134-6365-03LIFT SPRING£41.84 Add to
