Controls

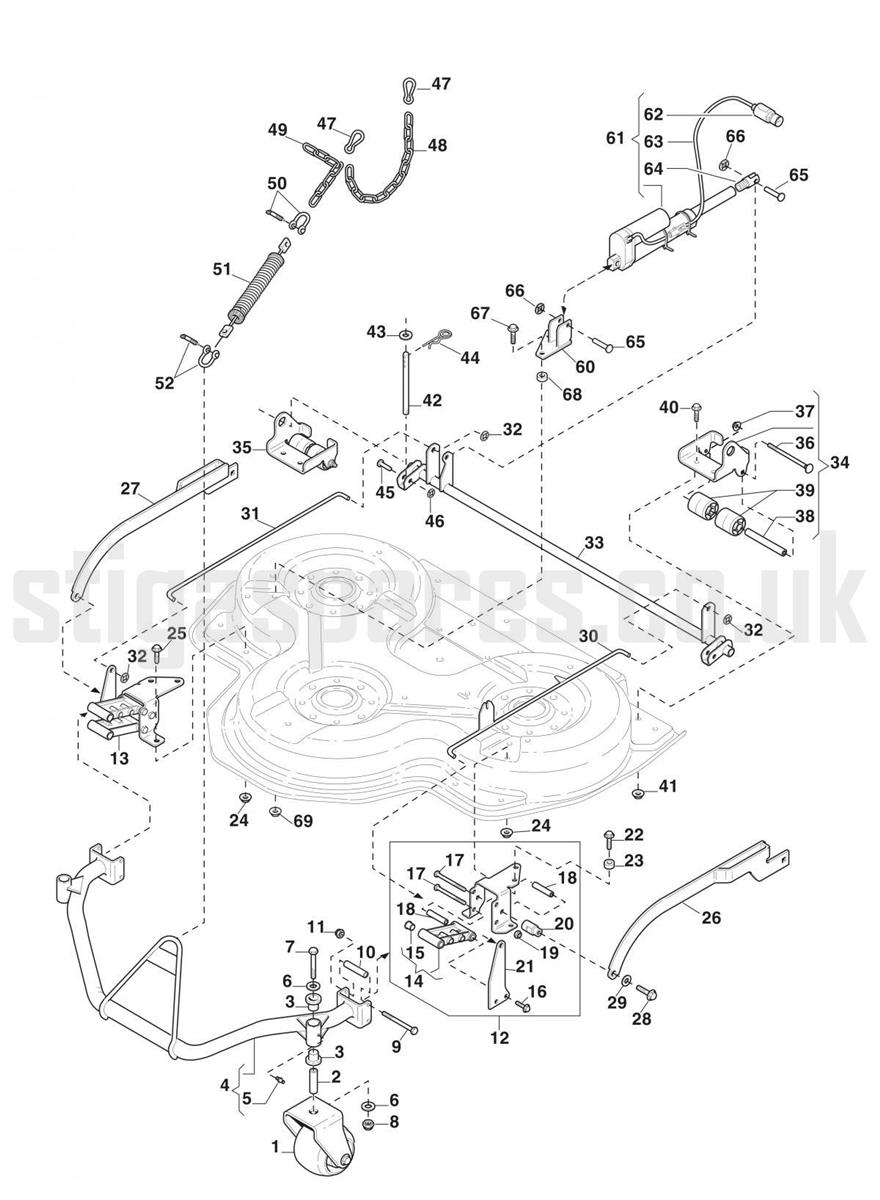

Controls assembly details for Stiga Stiga Deck 100 Combi 3 EL 2D6210021 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
004	387869265/0	FRONT GUARD TUBE ASSEMBLY [GREY]	£347.77	Add to
005	112379511/0	STRAIGHT GREASE NIPPLE M6 x 1	£2.06	Add to
006	9699-0030-02	WASHER (10 X 26 X 2)	£2.14	Add to
007	112794970/0	HEX-HEAD SCREW M10 x 90	£3.15	Add to
008	112156602/0	LOW SELF-LOCKING NUT M10	£1.79	Add to
009	9997-0880-16	Screw	N/A	POA
010	1137-0151-01	SHAFT	£3.00	Add to
011	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
012	387001015/0	LINKAGE ASSEMBLY L/H	£129.74	Add to
013	387001013/0	LINKAGE ASSEMBLY R/H	£129.74	Add to
014	1137-0199-01	SLEWING BRACKET ASSEMBLY	£57.95	Add to
015	387773539/0	BRACKET ROTATION PLATE LH/RH	£49.06	Add to
016	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
017	9997-0880-16	Screw	N/A	POA
018	1137-0151-01	SHAFT	£3.00	Add to
019	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
020	1137-0154-01	SPACER	£34.35	Add to
021	1137-0200-01	PIVOT PLATE	£39.53	Add to
022	112691115/0	HEX-HEAD SCREW M8 x 40	£2.06	Add to
023	1137-0155-01	SPACER	£4.52	Add to
024	1137-0155-01	SPACER	£4.52	Add to
025	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
026	387106265/0	L/H LIFTING DECK ARM 100C	£115.38	Add to
027	387106263/0	R/H LIFTING DECK ARM 100C	£112.02	Add to
028	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
029	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
030	1137-0162-01	PUSH ROD L/H	£19.77	Add to
031	1137-0160-01	PUSH ROD R/H	£12.96	Add to
032	112604903/0	STARLOCK WASHER D=10	£2.06	Add to
033	1134-6197-01	REAR AXLE [YELLOW]	£90.21	Add to
034	1134-6282-01	ROLLER ASSEMBLY L/H	£57.52	Add to
035	1134-6282-02	ROLLER ASSEMBLY R/H	£57.52	Add to
036	9897-0813-02	SCREW M8 x 130	£5.06	Add to
037	1137-0155-01	SPACER	£4.52	Add to
038	1134-4318-01	SPACER TUBE	£10.50	Add to
039	1134-9126-01	SUPPORT ROLLERS [2 PCS]	£43.89	Add to
040	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
041	1137-0155-01	SPACER	£4.52	Add to
042	1134-6198-01	STUD	£20.66	Add to
043	112521390/0	WASHER M16 17 x 30 x 3	£1.91	Add to
044	9598-2001-02	SPRING PIN	£5.19	Add to
045	9646-0098-22	RIVET 8 x 32	£2.87	Add to
046	112604899/0	STARLOCK WASHER RPCO 308 D=8	£2.06	Add to
047	1134-5528-01	SNAP HOOK	£4.52	Add to
048	1134-6368-03	CHAIN [12 LINKS]	£20.99	Add to
049	1134-6368-02	CHAIN [7 LINKS]	£24.95	Add to
050	1134-2629-01	LIFT LINK	£15.69	Add to
051	387432003/0	110/125 DECK LIFT SPRING	£47.97	Add to
052	1134-2629-01	LIFT LINK	£15.69	Add to
060	1137-0168-01	BRACKET ASSEMBLY	£38.43	Add to
061	118001004/2	ELECTRIC LIFTER CD 95-100-105	£401.85	Add to
062	1134-6182-01	MALE TERMINAL	£28.12	Add to
063	387149301/0	ACTUATOR CABLE L=490	£23.72	Add to
064	1134-6373-01	ROD END (OBSOLETE)	N/A
065	9646-0098-22	RIVET 8 x 32	£2.87	Add to
066	112604899/0	STARLOCK WASHER RPCO 308 D=8	£2.06	Add to
067	112691115/0	HEX-HEAD SCREW M8 x 40	£2.06	Add to
069	1137-0155-01	SPACER	£4.52	Add to
