HEIGHT ADJUST

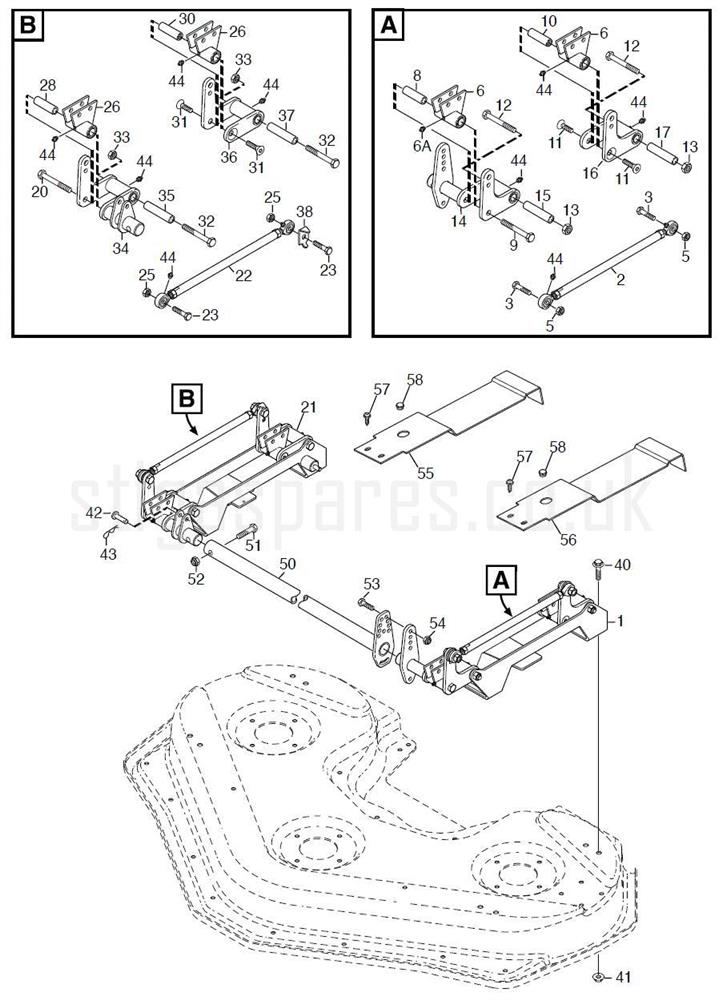

HEIGHT ADJUST assembly details for Stiga 13-7825-24 TITAN RM155H COMBI DECK 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	387743553/0	ATTACHMENT ASSEMBLY L/H	£960.58	Add to
002	1134-6904-01	PARALLEL ROD	£167.33	Add to
003	9997-1240-16	SCREW	£3.64	Add to
005	112156603/0	SELF-LOCKING NUT M12	£2.06	Add to
006	1134-6907-01	BRACKET ASSEMBLY	£79.98	Add to
008	1134-6900-02	AXLE (L=63)	£56.15	Add to
009	9997-1211-02	SCREW M6S M12 x 110	£6.01	Add to
010	1134-6900-03	AXLE (L=63 THREADED)	£56.15	Add to
011	9924-1235-19	SCREW MF6S M12 x 35	£4.23	Add to
012	9997-1211-02	SCREW M6S M12 x 110	£6.01	Add to
013	112156603/0	SELF-LOCKING NUT M12	£2.06	Add to
014	1134-7799-01	PIVOT PLATE	£127.45	Add to
015	1134-6900-01	AXLE (L=84)	£62.97	Add to
016	1134-6859-01	PIVOT PLATE	£121.70	Add to
017	1134-6900-01	AXLE (L=84)	£62.97	Add to
021	387743551/0	ATTACHMENT ASSEMBLY R/H	£832.52	Add to
022	1134-6904-01	PARALLEL ROD	£167.33	Add to
023	9997-1240-16	SCREW	£3.64	Add to
025	112156603/0	SELF-LOCKING NUT M12	£2.06	Add to
026	1134-6907-01	BRACKET ASSEMBLY	£79.98	Add to
028	1134-6900-02	AXLE (L=63)	£56.15	Add to
029	9997-1211-02	SCREW M6S M12 x 110	£6.01	Add to
030	1134-6900-03	AXLE (L=63 THREADED)	£56.15	Add to
031	9924-1235-19	SCREW MF6S M12 x 35	£4.23	Add to
032	9997-1211-02	SCREW M6S M12 x 110	£6.01	Add to
033	112156603/0	SELF-LOCKING NUT M12	£2.06	Add to
034	1134-7650-01	PIVOT PLATE	£183.07	Add to
035	1134-6900-01	AXLE (L=84)	£62.97	Add to
036	1134-6860-01	PIVOT PLATE	£121.70	Add to
037	1134-6900-01	AXLE (L=84)	£62.97	Add to
038	1134-7239-01	POINTER	£12.14	Add to
040	9997-1230-16	SCREW M6S M12 x 30	£2.47	Add to
041	9739-1241-22	NUT	£3.64	Add to
042	1134-7400-01	PIN	£22.08	Add to
043	9598-0002-02	SPRING PIN 2.5mm L=47mm	£2.06	Add to
044	112379511/0	STRAIGHT GREASE NIPPLE M6 x 1	£2.06	Add to
050	1134-7797-01	FRONT AXLE ASSEMBLY	£143.37	Add to
051	9997-1255-12	Screw, Lock	£4.01	Add to
052	112156603/0	SELF-LOCKING NUT M12	£2.06	Add to
053	112794300/0	SCREW TE M10 x 30	£1.91	Add to
054	112156602/0	LOW SELF-LOCKING NUT M10	£1.79	Add to
055	1137-1154-01	GUARD L/H	£29.75	Add to
056	1137-1154-02	GUARD R/H	£29.75	Add to
057	112735664/0	SCREW M6 x 16	£2.02	Add to
058	1134-7518-01	PLASTIC PLUG	£3.55	Add to
