CONTROL HYDRAULICS

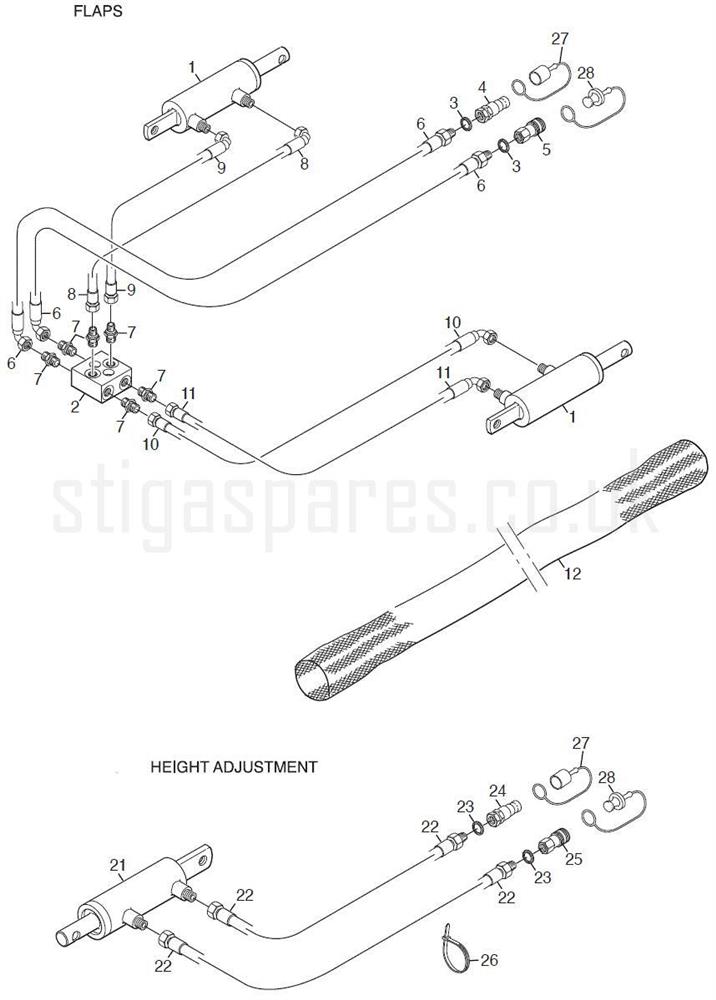

CONTROL HYDRAULICS assembly details for Stiga 13-7825-24 TITAN RM155H COMBI DECK 2015 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-7052-01	HYDRAULIC CYLINDER	£300.07	Add to
002	1134-7332-01	DISTRIBUTION BLOCK	£103.85	Add to
003	1134-4948-01	SEAL WASHER 1/4"	£2.59	Add to
004	1134-6042-01	QUICK COUPLING-MALE 1/4"	£32.08	Add to
005	1135-2498-01	KNOB	£7.78	Add to
006	387869514/0	HYDRAULIC TUBE 1/4"	£69.64	Add to
007	1134-7165-01	HYDRAULIC CONNECTOR	£8.60	Add to
008	1137-0185-05	HYDRAULIC HOSE 1/4"	£43.71	Add to
009	1137-0185-07	HYDRAULIC HOSE 1/4"	£47.97	Add to
010	1137-0185-01	HYDRAULIC HOSE 90° ¼"	£59.00	Add to
011	1137-0185-08	HYDRAULIC HOSE 1/4"	£40.80	Add to
012	1134-7627-01	HOSE GUARD	£60.56	Add to
021	1134-7052-01	HYDRAULIC CYLINDER	£300.07	Add to
022	387869515/0	HYDRAULIC TUBE 1/4"	£66.98	Add to
023	1134-4948-01	SEAL WASHER 1/4"	£2.59	Add to
024	1134-6042-01	QUICK COUPLING-MALE 1/4"	£32.08	Add to
025	1135-2498-01	KNOB	£7.78	Add to
026	9579-0016-01	CABLE TIE (YELLOW)	£5.58	Add to
027	1134-7175-01	PLASTIC CAP	£8.87	Add to
028	1134-7173-01	PLASTIC PLUG 1/4"	£13.95	Add to
