HEIGHT ADJUST

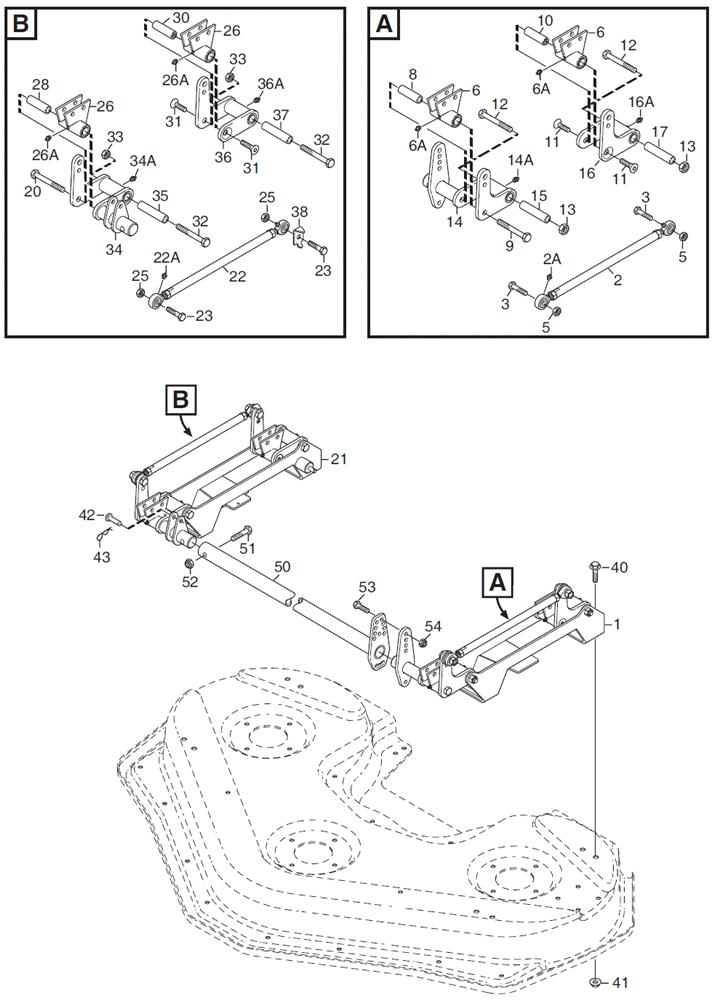

HEIGHT ADJUST assembly details for Stiga 13-7823-24 TITAN RM135H COMBI DECK 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-7800-01ATTACHMENT ASSEMBLY L/H£809.15 Add to
002112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.90 Add to
0021134-6904-01PARALLEL ROD£155.72 Add to
0039997-1240-16SCREW£4.37 Add to
0059747-1231-02NUT£2.90 Add to
006112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.90 Add to
0061134-6907-01BRACKET ASSEMBLY£74.95 Add to
0081134-6900-02AXLE (L=63)£52.92 Add to
0099997-1211-02SCREW M6S M12 x 110£6.55 Add to
0101134-6900-03AXLE (L=63 THREADED)£52.92 Add to
0119924-1235-19SCREW MF6S M12 x 35£4.91 Add to
0129997-1211-02SCREW M6S M12 x 110£6.55 Add to
0139747-1231-02NUT£2.90 Add to
014112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.90 Add to
0141134-7799-01PIVOT PLATE£118.84 Add to
0151134-6900-01AXLE (L=84)£59.22 Add to
016112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.90 Add to
0161134-6859-01PIVOT PLATE£113.52 Add to
0171134-6900-01AXLE (L=84)£59.22 Add to
0211134-7651-01ATTACHMENT ASSEMBLY R/H£721.83 Add to
022112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.90 Add to
0221134-6904-01PARALLEL ROD£155.72 Add to
0239997-1240-16SCREW£4.37 Add to
0259747-1231-02NUT£2.90 Add to
026112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.90 Add to
0261134-6907-01BRACKET ASSEMBLY£74.95 Add to
0281134-6900-02AXLE (L=63)£52.92 Add to
0299997-1211-02SCREW M6S M12 x 110£6.55 Add to
0301134-6900-03AXLE (L=63 THREADED)£52.92 Add to
0319924-1235-19SCREW MF6S M12 x 35£4.91 Add to
0329997-1211-02SCREW M6S M12 x 110£6.55 Add to
0339747-1231-02NUT£2.90 Add to
034112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.90 Add to
0341134-7650-01PIVOT PLATE£170.27 Add to
0351134-6900-01AXLE (L=84)£59.22 Add to
036112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.90 Add to
0361134-6860-01PIVOT PLATE£113.52 Add to
0371134-6900-01AXLE (L=84)£59.22 Add to
0381134-7239-01POINTER£12.22 Add to
0409997-1230-16SCREW M6S M12 x 30£3.28 Add to
0419739-1241-22NUT£4.37 Add to
0421134-7400-01PIN£21.42 Add to
0439598-0002-02SPRING PIN 2.5mm L=47mm£2.90 Add to
0501134-7797-01FRONT AXLE ASSEMBLY£133.56 Add to
0519997-1255-12Screw, Lock£4.71 Add to
0529747-1231-02NUT£2.90 Add to
0539997-1030-16SCREW M6S M10 x 30£3.78 Add to
054112156602/0LOW SELF-LOCKING NUT M10 UNI7474 ACC.6S£2.65 Add to
