CASING

CASING assembly details for Stiga 13-7822-24 TITAN RM125H COMBI DECK 2014 model

Parts list

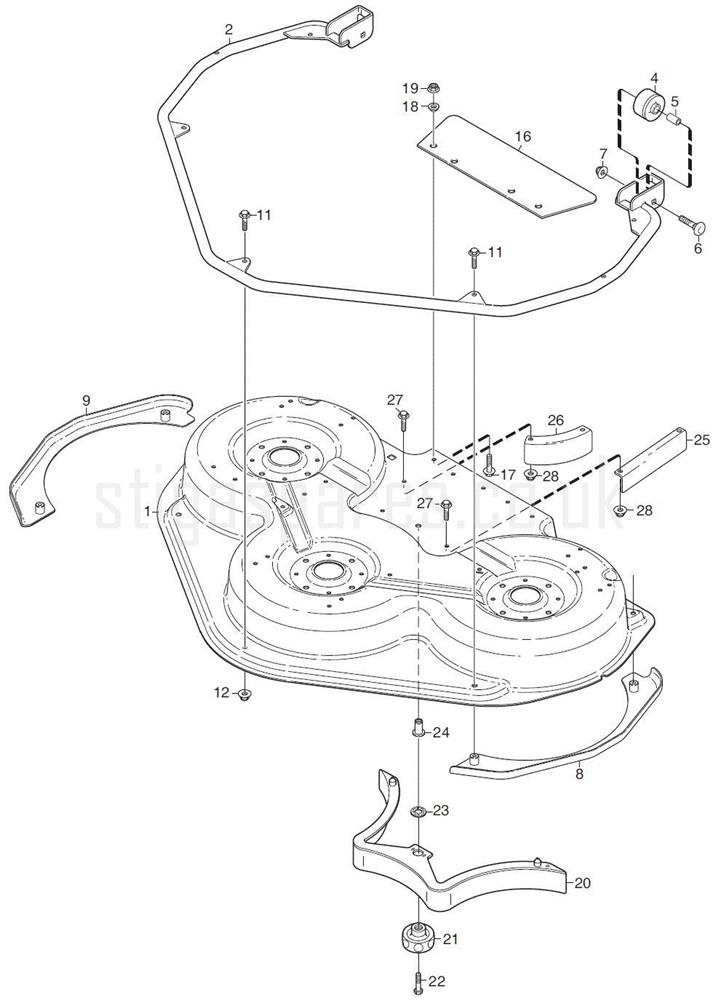

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-7750-01DECK CASING 125C [YELLOW]£571.35 Add to
0021134-6110-03PROTECTION FRAME [GREY]£445.33 Add to
0041134-3434-01ROLLER£13.73 Add to
0051134-0041-04BUSH£11.59 Add to
0069897-1060-12SCREW M10 x 60£4.03 Add to
0079739-1031-22NUT M10£3.15 Add to
0081134-7520-01WEAR PLATE L/H£85.86 Add to
0091134-7520-02WEAR PLATE R/H£85.86 Add to
0119959-0820-16SCREW M6SF M8 x 20 TL£2.90 Add to
0121137-0155-01SPACER£5.17 Add to
0161134-5885-01RUBBER FLAP£12.08 Add to
0179959-0825-16SCREW FLANGED TE M6SF M8 x 25£2.90 Add to
0181134-4185-01FLANGE WASHER£7.20 Add to
0191137-0155-01SPACER£5.17 Add to
0201134-5409-02MULCH PLUG [BLACK]£109.62 Add to
021322399804/1HANDWHEEL w/o NUT M8 [BLACK]£4.91 Add to
022112691115/0HEX-HEAD SCREW M8 x 40£2.90 Add to
023112604899/0STARLOCK WASHER RPCO 308 D=8£2.90 Add to
0241134-5595-01BLIND RIVET NUT£8.69 Add to
0251134-5553-02GUIDE PLATE (STRAIGHT)£34.02 Add to
0261134-5554-02GUIDE PLATE (CURVED)£36.54 Add to
0279959-0820-16SCREW M6SF M8 x 20 TL£2.90 Add to
0281137-0155-01SPACER£5.17 Add to
