FRAME

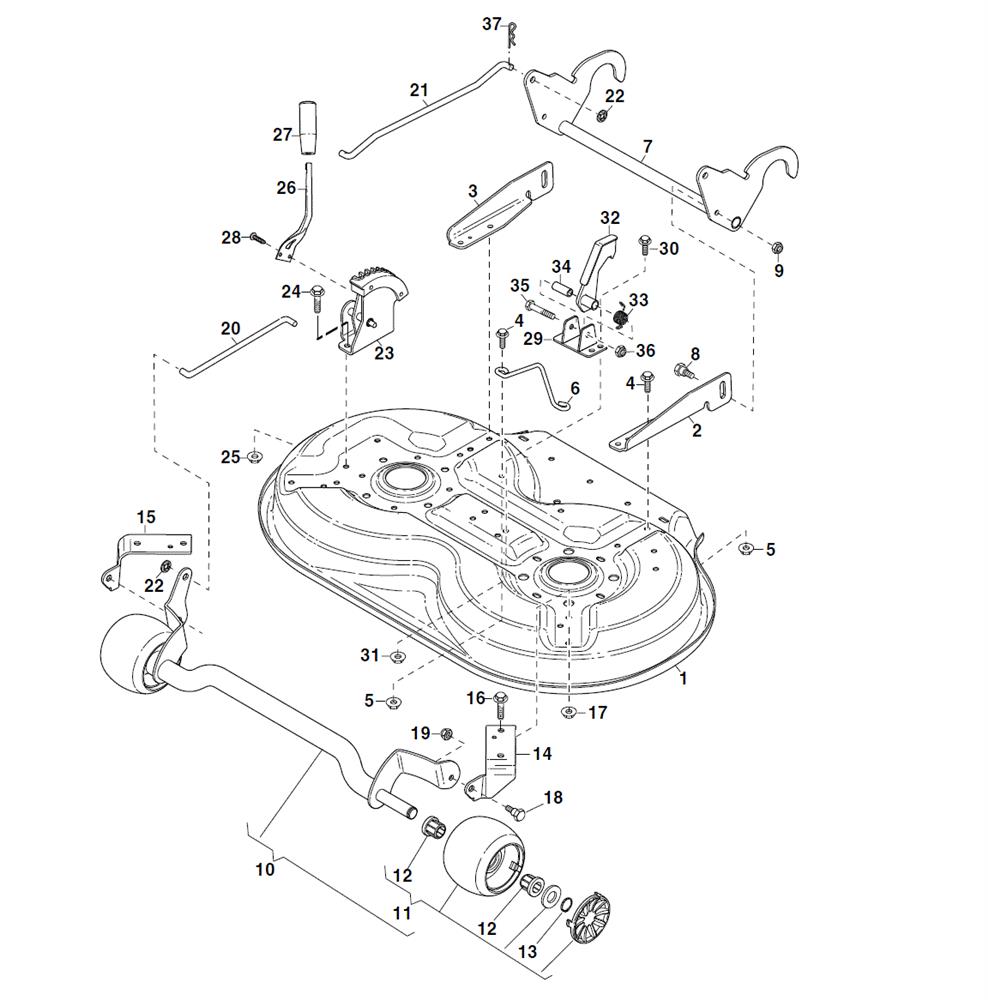

FRAME assembly details for Stiga 13-5811-51 VILLA 78cm (320 HST) DECK 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011137-0994-01DECK CASING [VILLA 320] (OBSOLETE) (OBSOLETE)N/A
0021137-0942-01HOLDER LH£11.93 Add to
0031137-0942-02HOLDER RH£11.93 Add to
0049959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£1.96 Add to
0051137-0155-01SPACER£4.30 Add to
0061137-0929-01LIFTING WIRE BRACKET£6.22 Add to
0071137-0943-01MOUNTING BRACKET£59.67 Add to
0081134-0240-00SCREW£8.70 Add to
009112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£1.96 Add to
0101134-6735-02FRONT WHEEL AXLE£95.37 Add to
0111134-9139-01SUPPORT WHEEL KIT£73.61 Add to
0121134-0068-00BUSH£4.55 Add to
013112609260/0CIRCLIP D=20£1.92 Add to
0141134-6594-01BRACKET-LH£15.34 Add to
0151134-6594-02BRACKET-RH£15.34 Add to
0169959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£1.96 Add to
0171137-0155-01SPACER£4.30 Add to
0181134-0240-00SCREW£8.70 Add to
019112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£1.96 Add to
0201134-6599-01Strut (OBSOLETE)N/A
0211137-0949-01STRUT£9.36 Add to
022112604903/0STARLOCK WASHER D=10£1.96 Add to
0231134-6755-01LEVEL BRACKET ASSEMBLY£50.53 Add to
0249959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£1.96 Add to
0251137-0155-01SPACER£4.30 Add to
0261111-2816-01HEIGHT ADJUST LEVER£10.00 Add to
0279403-0063-01LEVER KNOB£4.94 Add to
0289893-0616-16SCREW M6 x 16£2.35 Add to
0291137-1019-01BRACKET£7.65 Add to
0309959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£1.96 Add to
0311137-0155-01SPACER£4.30 Add to
0321137-1022-01FASTENER PLATE£10.03 Add to
0331137-1025-01SPRING£4.30 Add to
0341134-1565-16SPACER£7.01 Add to
035112691400/0HEX-HEAD SCREW M8 X 50£1.68 Add to
036112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£1.96 Add to
0379599-0054-02SPLIT PIN£2.21 Add to
