ELECTRIC CONTROL

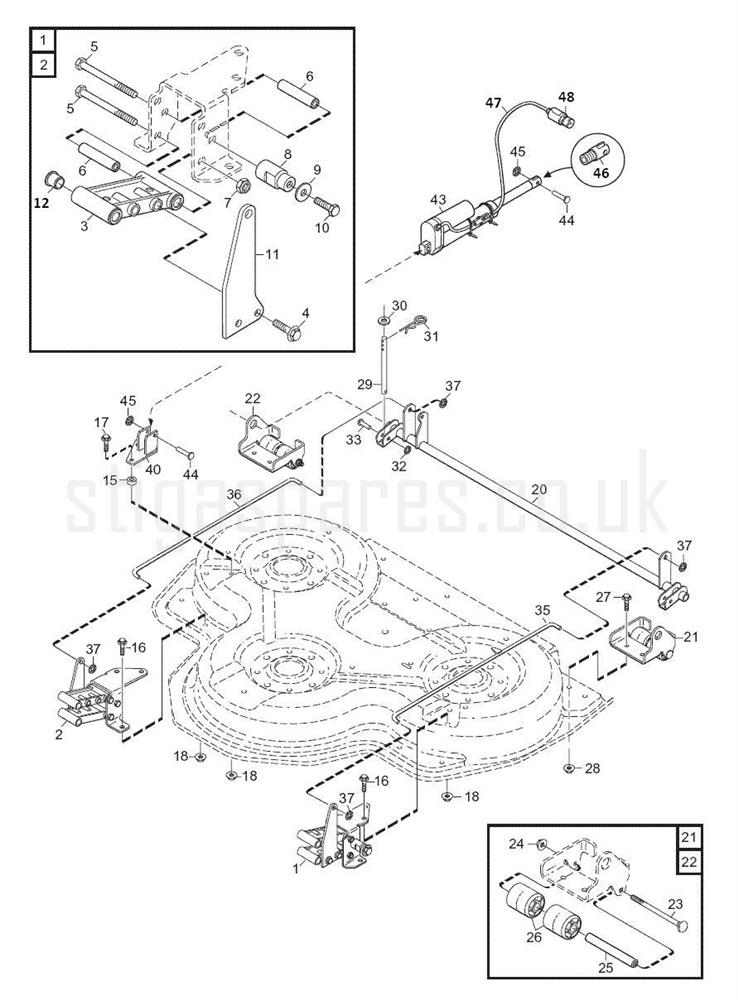

ELECTRIC CONTROL assembly details for Stiga 13-2978-31 PARK 100 COMBI 3 EL DECK 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	387001015/0	LINKAGE ASSEMBLY L/H	£129.74	Add to
002	387001013/0	LINKAGE ASSEMBLY R/H	£129.74	Add to
003	1137-0199-01	SLEWING BRACKET ASSEMBLY	£57.95	Add to
004	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
005	112692050/0	HEX-HEAD SCREW	£1.91	Add to
006	1137-0151-01	SHAFT	£3.00	Add to
007	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
008	1137-0154-01	SPACER	£34.35	Add to
009	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
010	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
011	1137-0200-01	PIVOT PLATE	£39.53	Add to
012	387773539/0	BRACKET ROTATION PLATE LH/RH	£49.06	Add to
015	1137-0155-01	SPACER	£4.52	Add to
016	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
017	9997-0840-16	SCREW M6S M8 x 40	£2.06	Add to
018	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
020	1134-6197-01	REAR AXLE [YELLOW]	£90.21	Add to
021	1134-6282-01	ROLLER ASSEMBLY L/H	£57.52	Add to
022	1134-6282-02	ROLLER ASSEMBLY R/H	£57.52	Add to
023	9897-0813-02	SCREW M8 x 130	£5.06	Add to
024	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
025	1134-4318-01	SPACER TUBE	£10.50	Add to
026	1134-6206-01	ROLLER (SINGLE)	£23.47	Add to
027	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
028	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
029	1134-6198-01	STUD	£20.66	Add to
030	112521390/0	WASHER M16 17 x 30 x 3	£1.91	Add to
031	9598-2001-02	SPRING PIN	£5.19	Add to
032	112604899/0	STARLOCK WASHER RPCO 308 D=8	£2.06	Add to
033	9646-0098-22	RIVET 8 x 32	£2.87	Add to
035	1137-0162-01	PUSH ROD L/H	£19.77	Add to
036	1137-0160-01	PUSH ROD R/H	£12.96	Add to
037	MX585	PUSH ON FIXING	£3.64	Add to
040	1137-0168-01	BRACKET ASSEMBLY	£38.43	Add to
043	118001004/2	ELECTRIC LIFTER CD 95-100-105	£401.85	Add to
044	9646-0098-22	RIVET 8 x 32	£2.87	Add to
045	112604899/0	STARLOCK WASHER RPCO 308 D=8	£2.06	Add to
046	1134-6373-01	ROD END (OBSOLETE)	N/A
047	387149301/0	ACTUATOR CABLE L=490	£23.72	Add to
048	1134-6182-01	MALE TERMINAL	£28.12	Add to
