FRAME

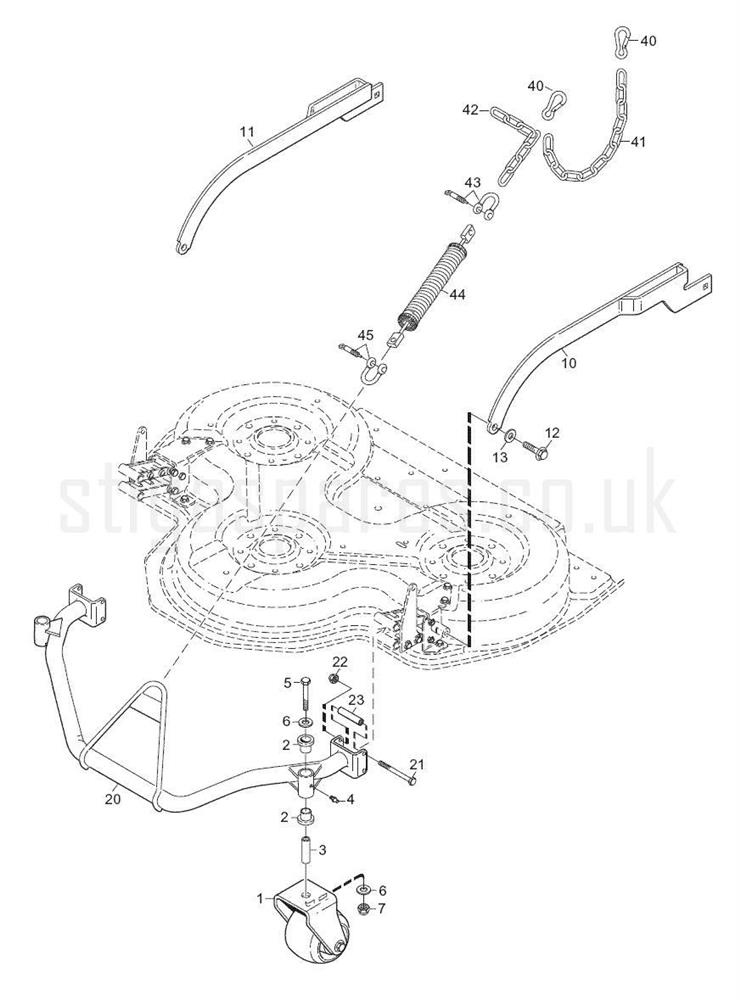

FRAME assembly details for Stiga 13-2977-31 PARK 100 COMBI 3 DECK 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-5884-01PIVOT WHEEL ASSEMBLY£56.07 Add to
002137038009/0WHEEL BUSH£5.80 Add to
0031134-5677-01SPACER£17.85 Add to
004112379511/0STRAIGHT GREASE NIPPLE M6 x 1£1.96 Add to
005112794970/0HEX-HEAD SCREW M10 x 90£3.00 Add to
0069699-0030-02WASHER (10 X 26 X 2)£2.04 Add to
007112156602/0LOW SELF-LOCKING NUT M10£1.70 Add to
0101137-0166-01CUTTING DECK ARM L/H£88.16 Add to
0111137-0166-02CUTTING DECK ARM R/H£88.16 Add to
012112800815/0SCREW TE FL M8 x 16£1.96 Add to
013112523060/0WASHER M8 8.4 X 24 X 2£1.96 Add to
0201137-0141-01FRONT TUBE ASSEMBLY£337.70 Add to
021112692050/0HEX-HEAD SCREW£1.82 Add to
022112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£1.96 Add to
0231137-0151-01SHAFT£2.86 Add to
0401134-5528-01SNAP HOOK£4.30 Add to
0411134-6368-03CHAIN [12 LINKS]£19.99 Add to
0421134-6368-02CHAIN [7 LINKS]£23.76 Add to
0431134-2629-01LIFT LINK£14.94 Add to
044387432003/0110/125 DECK LIFT SPRING£45.69 Add to
0451134-2629-01LIFT LINK£14.94 Add to
