CASING

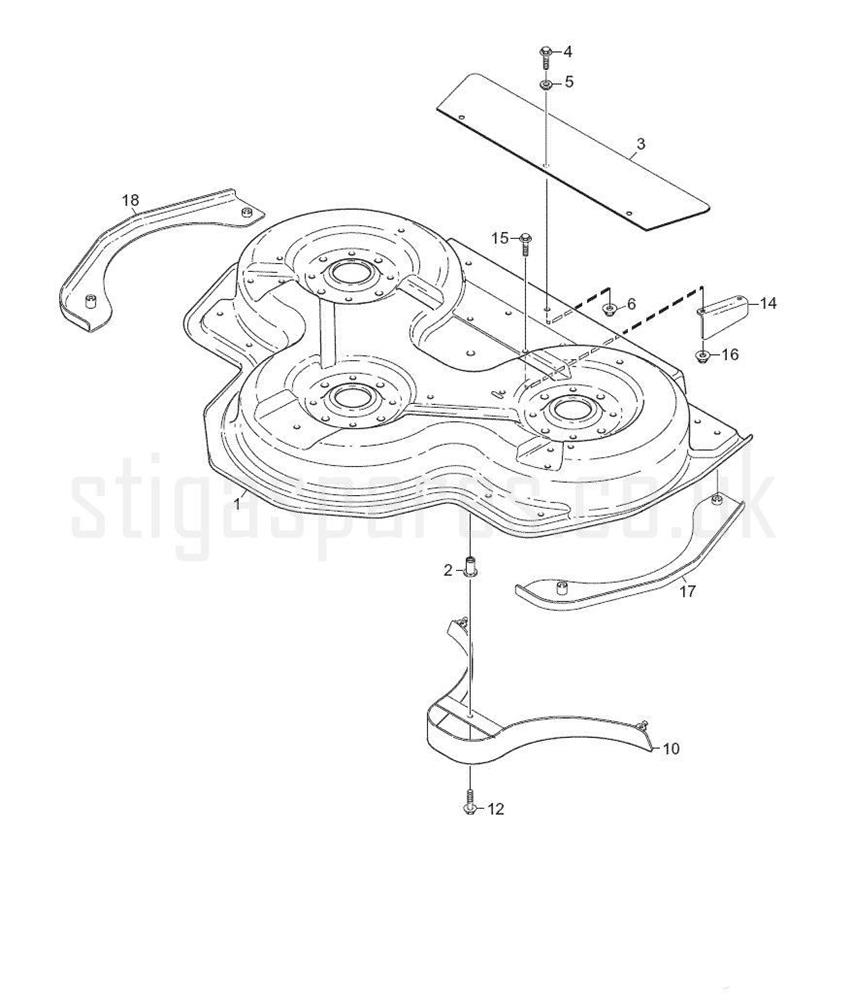

CASING assembly details for Stiga 13-2977-31 PARK 100 COMBI 3 DECK 2014 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1137-0140-01	DECK CASING 100C [GREY]	£669.11	Add to
002	1134-5595-01	BLIND RIVET NUT	£8.32	Add to
003	1134-6281-03	RUBBER GUARD	£22.22	Add to
004	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
005	1134-4185-01	FLANGE WASHER	£6.71	Add to
006	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
010	1137-0163-01	MULCHING PLUG	£104.28	Add to
012	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
014	1137-0244-01	GUIDE PLATE	£16.10	Add to
015	9945-0825-16	SCREW M6SF M8 x 25	£2.32	Add to
016	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
017	1137-0245-01	WEAR PLATE LH	£84.70	Add to
018	1137-0245-02	WEAR PLATE RH	£84.70	Add to
