ELECTRIC CONTROL

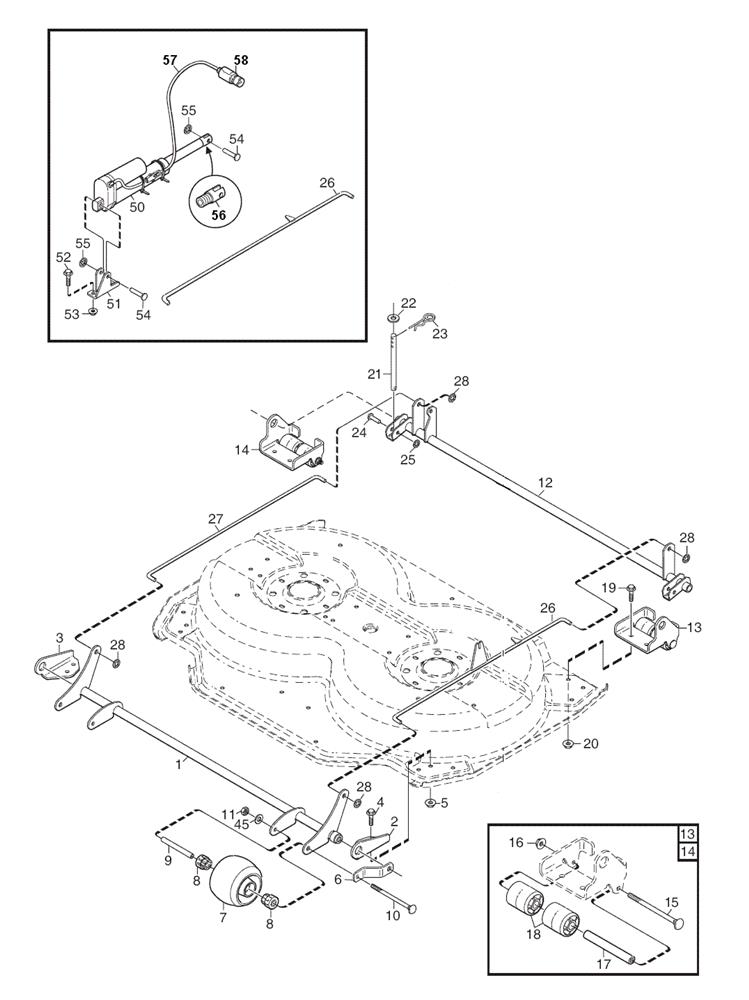

ELECTRIC CONTROL assembly details for Stiga 13-2965-15 VILLA 95 COMBI EL DECK 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-6275-01FRONT AXLE [YELLOW]£100.41 Add to
0021134-6214-01BRACKET FRONT-LH [YELLOW]£12.66 Add to
0031134-6214-02BRACKET FRONT-RH [YELLOW]£12.74 Add to
004112800815/0SCREW TE FL M8 x 16£2.90 Add to
005112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.90 Add to
0061134-6278-01SUPPORT BRACKET [GREY]£7.29 Add to
0071134-4284-01WHEEL£31.50 Add to
0081134-4319-01PLASTIC BUSH£7.56 Add to
0091134-4318-01SPACER TUBE£10.71 Add to
0109897-0813-02SCREW M8 x 130£5.68 Add to
011112154220/0SELF-LOCK NUT M8£2.90 Add to
0121134-6197-01REAR AXLE [YELLOW]£84.41 Add to
0131134-6282-01ROLLER ASSEMBLY L/H£54.18 Add to
0141134-6282-02ROLLER ASSEMBLY R/H£54.18 Add to
0159897-0813-02SCREW M8 x 130£5.68 Add to
016112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.90 Add to
0171134-4318-01SPACER TUBE£10.71 Add to
0181134-6206-01ROLLER (SINGLE)£22.70 Add to
019112800815/0SCREW TE FL M8 x 16£2.90 Add to
020112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.90 Add to
0211134-6198-01STUD£18.33 Add to
022112521390/0WASHER M16 17 x 30 x 3£2.77 Add to
0239598-2001-02SPRING PIN£5.80 Add to
0249646-0098-22RIVET 8 x 32£3.65 Add to
025112604899/0STARLOCK WASHER RPCO 308 D=8£2.90 Add to
0261134-6250-02PUSH ROD-LH£24.74 Add to
0271134-6246-02PUSH ROD R/H£15.62 Add to
028MX585PUSH ON FIXING£4.37 Add to
045112521350/0WASHER M8 8.4 x 16 x 1.6£2.90 Add to
050118001004/2ELECTRIC LIFTER CD 95-100-105£372.56 Add to
0511134-6192-01BRACKET£11.21 Add to
052112800815/0SCREW TE FL M8 x 16£2.90 Add to
053112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.90 Add to
0549646-0098-22RIVET 8 x 32£3.65 Add to
055112604899/0STARLOCK WASHER RPCO 308 D=8£2.90 Add to
0561134-6373-01ROD END£35.51 Add to
057387149301/0ACTUATOR CABLE L=490£22.93 Add to
0581134-6182-01MALE TERMINAL£24.07 Add to
