FRAME

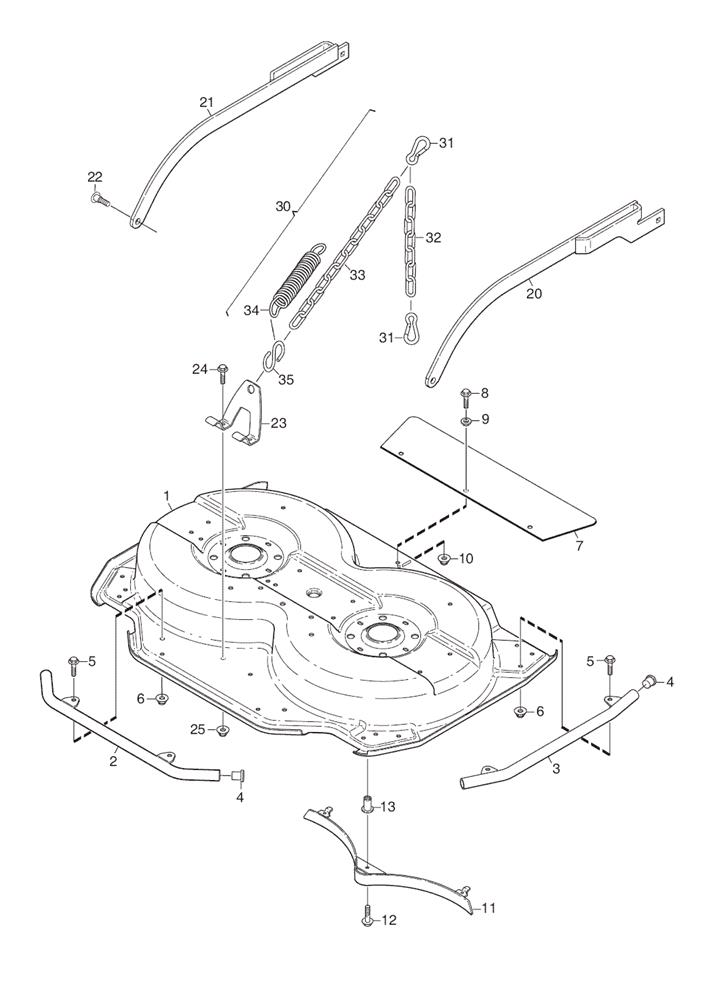

FRAME assembly details for Stiga 13-2963-15 VILLA 95 COMBI DECK 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001387561531/0DECK CASING 95C£467.46 Add to
0021134-6208-01FRONT GUARD TUBE [GREY]£47.30 Add to
0031134-6222-01SIDE GUARD TUBE [GREY]£38.93 Add to
0049403-0025-80END PLUG [GREY]£3.65 Add to
005112800815/0SCREW TE FL M8 x 16£2.90 Add to
006112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.90 Add to
0071134-6281-02RUBBER GUARD£19.15 Add to
008112800815/0SCREW TE FL M8 x 16£2.90 Add to
0091134-4185-01FLANGE WASHER£7.20 Add to
010112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.90 Add to
0111134-6229-01MULCH PLUG 95C£39.06 Add to
012112800815/0SCREW TE FL M8 x 16£2.90 Add to
0131134-5595-01BLIND RIVET NUT£8.69 Add to
0201134-6237-03MOWER DECK ARM-LH (GREY) 95C£102.06 Add to
0211134-6237-04MOWER DECK ARM-RH (GREY) 95C£102.06 Add to
0221134-6279-01SHOULDER BOLT£3.53 Add to
0231134-6315-01LIFT BRACKET [GREY]£18.85 Add to
024112800815/0SCREW TE FL M8 x 16£2.90 Add to
025112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.90 Add to
0301134-6363-01LIFT SPRING ASSEMBLY£45.36 Add to
0311134-5528-01SNAP HOOK£5.17 Add to
0321134-6368-02CHAIN [7 LINKS]£24.07 Add to
0331134-6368-03CHAIN [12 LINKS]£20.41 Add to
0341134-5625-01MOWER DECK SPRING£32.60 Add to
0351134-4623-01S-HOOK£5.42 Add to
