ELECTRIC CONTROL

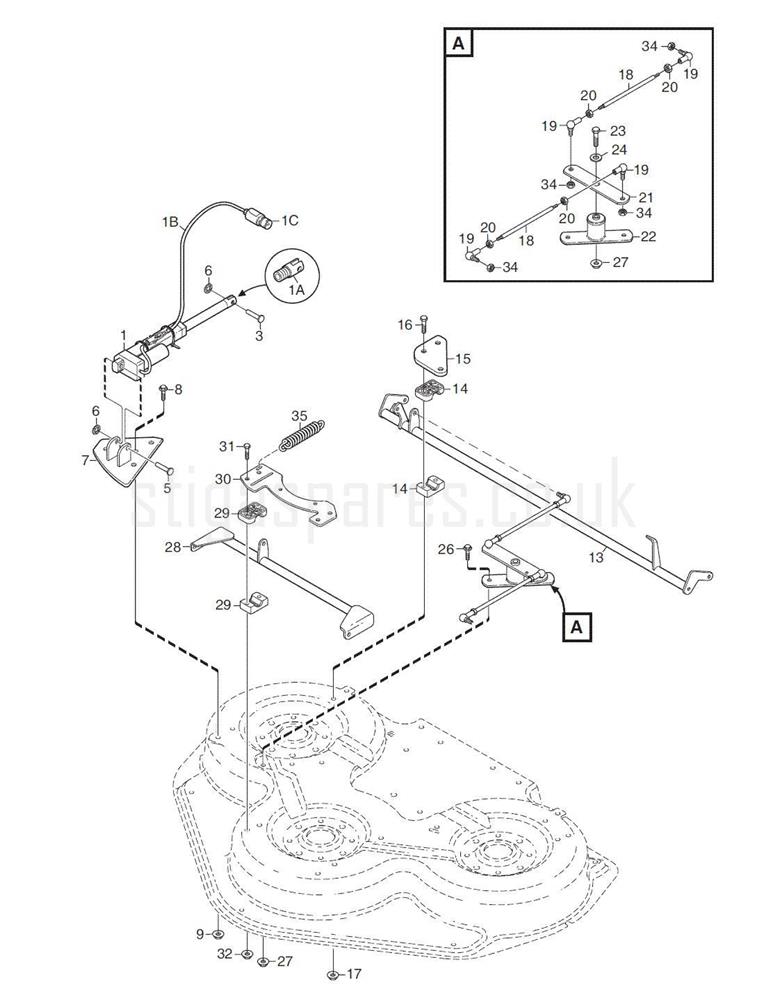

ELECTRIC CONTROL assembly details for Stiga 13-2932-44 PARK 110 COMBI PRO EL DECK 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118001003/1ELECTRIC LIFTER CD 110-125£365.28 Add to
0039646-0098-22RIVET 8 x 32£3.65 Add to
0051134-0041-04BUSH£11.59 Add to
006112604899/0STARLOCK WASHER RPCO 308 D=8£2.90 Add to
0079739-1031-22NUT M10£3.15 Add to
008112800815/0SCREW TE FL M8 x 16£2.90 Add to
009112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.90 Add to
0131134-7603-01REAR AXLE ASSEMBLY£213.93 Add to
0141134-5469-01BEARING HALF£12.10 Add to
0151134-5471-01BEARING PLATE-REAR£19.53 Add to
016112691200/0HEX-HEAD SCREW M8 x 45£2.90 Add to
017112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.90 Add to
0181134-5473-01Push Rod£18.09 Add to
0199570-0002-00ELBOW LINK£31.79 Add to
01A1134-6373-01ROD END£35.51 Add to
01B387149300/02 POLE FM MALE CONNECTOR ASSY L=835£30.64 Add to
01C1134-6182-01MALE TERMINAL£24.07 Add to
020112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.90 Add to
0211134-5855-01PIVOT ARM£32.76 Add to
0221134-5858-01PIVOT BRACKET£31.36 Add to
023112692050/0HEX-HEAD SCREW M8x80 UNI 5737 ACC.8.8£2.77 Add to
0241134-5127-01WASHER£5.17 Add to
026112800815/0SCREW TE FL M8 x 16£2.90 Add to
027112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.90 Add to
0281134-5427-01FRONT AXLE [GREY]£85.86 Add to
0291134-5469-01BEARING HALF£12.10 Add to
0301134-5846-01FRONT BEARING PLATE£34.71 Add to
031112691200/0HEX-HEAD SCREW M8 x 45£2.90 Add to
032112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.90 Add to
034112154220/0SELF-LOCK NUT M8£2.90 Add to
0351134-5847-01SPRING£19.40 Add to
