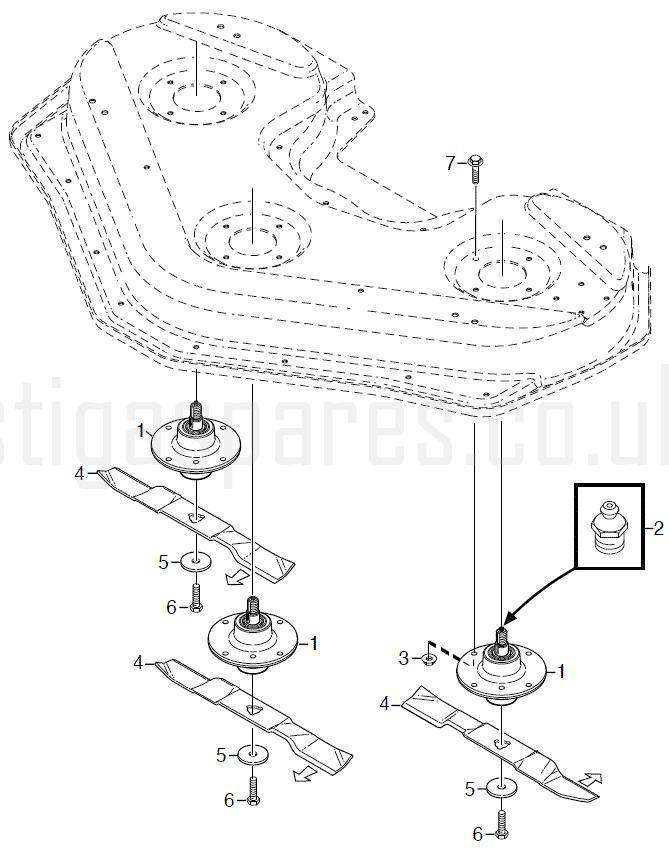

BLADES assembly details for Stiga 13-7825-24 TITAN RM155H COMBI DECK 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

0011137-0312-01BEARING BOX ASSEMBLY£119.33 Add to
002112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.90 Add to
0039739-1031-22NUT M10£3.15 Add to
0041134-9132-01BLADE BAR ASSEMBLY-TITAN 155 [3 PCS]£100.80 Add to
0051134-6211-01BLADE WASHER£4.28 Add to
006112692395/1SCREW M10 X 60 L=60MM£4.37 Add to
0079959-1025-16SCREW M6SF M10 x 25 TL£3.78 Add to
