FRAME

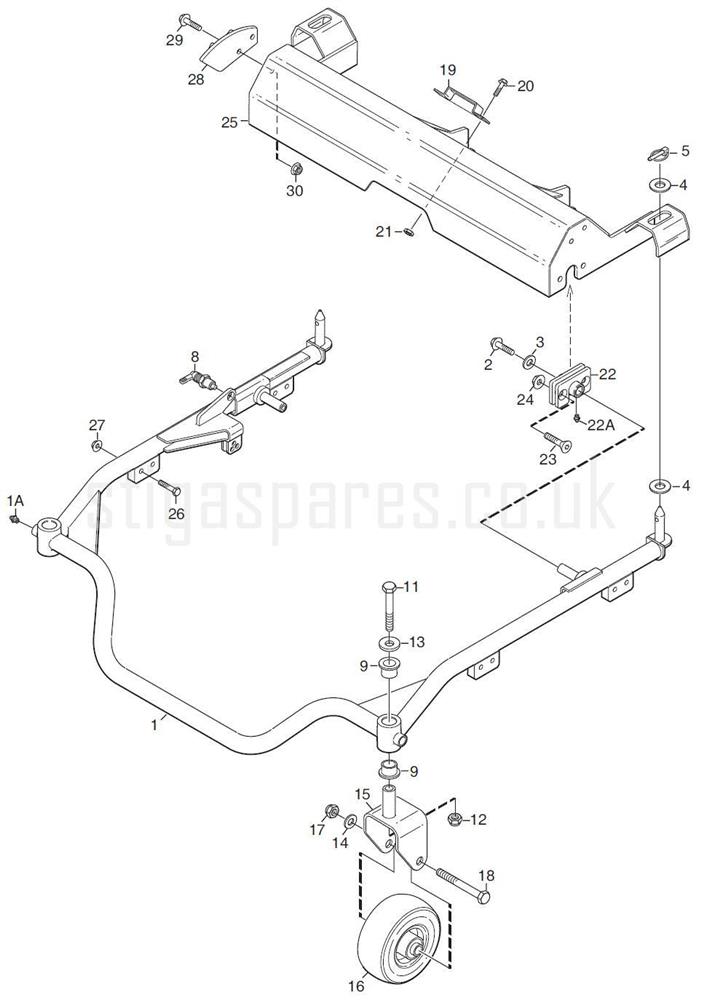

FRAME assembly details for Stiga 13-7823-24 TITAN RM135H COMBI DECK 2013 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	112379511/0	STRAIGHT GREASE NIPPLE M6 x 1	£2.06	Add to
001	1137-1146-01	CARRIER FRAME ASSEMBLY	£1,511.45	Add to
002	9959-1025-16	SCREW M6SF M10 x 25 TL	£3.00	Add to
003	1134-5406-01	WASHER M10 10.5 x 35 x 5	£4.23	Add to
004	1134-7411-01	WASHER	£3.55	Add to
005	1134-7345-01	LOCKING PIN	£2.06	Add to
008	1134-7330-01	CATCH BOLT	£116.11	Add to
009	1134-5686-01	BEARING BUSH D= 25.4mm	£14.58	Add to
011	9997-1211-02	SCREW M6S M12 x 110	£6.01	Add to
012	9747-1231-02	NUT	£2.06	Add to
013	1134-7410-01	WASHER	£3.55	Add to
014	112521390/0	WASHER M16 17 x 30 x 3	£1.91	Add to
015	1134-7477-01	WHEEL FORK	£124.29	Add to
016	1135-3394-01	PIVOT WHEEL	£129.74	Add to
017	9747-1631-02	NUT	£2.06	Add to
018	9997-1616-02	SCREW M6S M16 x 160	£5.45	Add to
019	1134-7333-01	CLAMP	£12.52	Add to
020	9959-1025-16	SCREW M6SF M10 x 25 TL	£3.00	Add to
021	9739-1031-22	NUT M10	£2.32	Add to
022	112379511/0	STRAIGHT GREASE NIPPLE M6 x 1	£2.06	Add to
022	1134-7002-01	SUPPORT PLATE	£84.77	Add to
023	9924-1240-16	SCREW	£2.06	Add to
024	9739-1241-22	NUT	£3.64	Add to
025	1137-1059-01	USE 387800033/0	N/A	POA
026	9997-1045-12	SCREW	£3.15	Add to
027	112156602/0	LOW SELF-LOCKING NUT M10	£1.79	Add to
028	1134-7435-01	CATCH	£83.40	Add to
029	9959-1025-16	SCREW M6SF M10 x 25 TL	£3.00	Add to
030	9739-1031-22	NUT M10	£2.32	Add to
099	1135-3156-02	LABEL KIT (TITAN 135H)	£60.53	Add to
099	1135-3156-04	LABEL KIT (TITAN 155H)	£82.33	Add to
