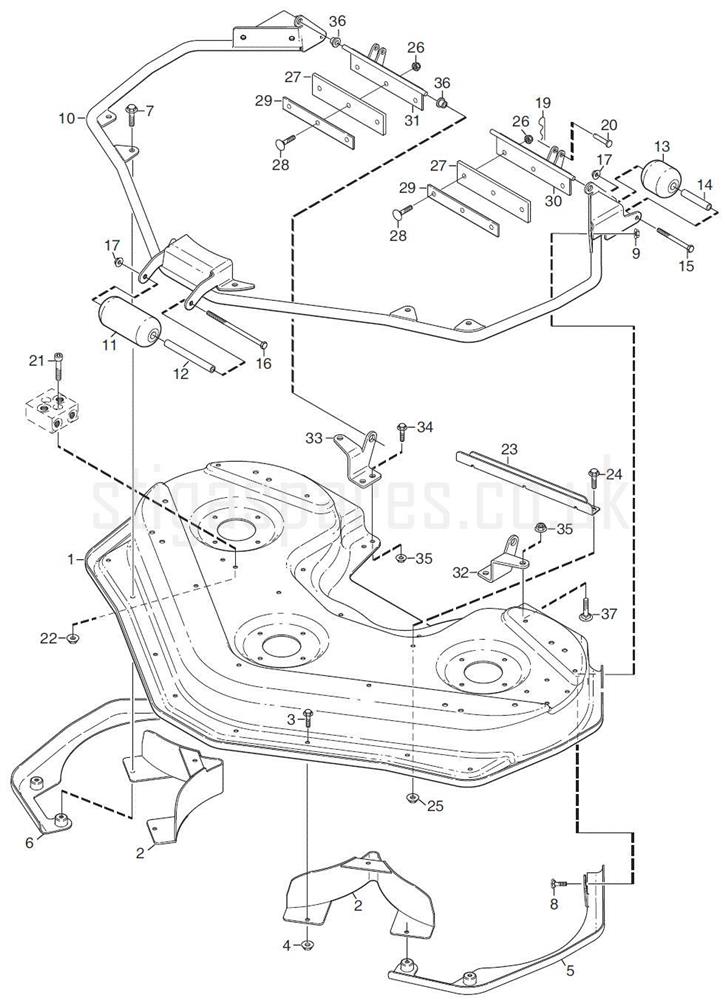

CASING assembly details for Stiga 13-7823-24 TITAN RM135H COMBI DECK 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-5595-01BLIND RIVET NUT£7.92 Add to
0011134-6737-01DECK CASING 135 [YELLOW]£1,611.86 Add to
0021134-7046-01GUIDE PLATE£84.41 Add to
0039959-1020-16SCREW M6SF M10 x 20 TL£2.73 Add to
0049739-1031-22NUT M10£2.21 Add to
0051134-6820-01WEAR SKID L/H£117.38 Add to
0061134-6820-02WEAR SKID R/H£117.38 Add to
0079959-1025-16SCREW M6SF M10 x 25 TL£2.86 Add to
0089898-1025-16SCREW£2.73 Add to
0099739-1031-22NUT M10£2.21 Add to
0101134-6951-01PROTECTION FRAME£454.50 Add to
0111134-7341-01ROLLER£78.14 Add to
0121134-0041-09BUSH (OBSOLETE) (OBSOLETE)N/A
0131134-7341-02ROLLER£48.29 Add to
0141134-0041-08BUSH£24.23 Add to
0159898-1011-02SCREW M10 x 110£1.82 Add to
0169997-1019-02SCREW M10 x 190£3.38 Add to
0179739-1031-22NUT M10£2.21 Add to
0199598-0002-02SPRING PIN 2.5mm L=47mm£1.96 Add to
0201134-7400-01PIN£21.03 Add to
0219939-0835-16SCREW£3.47 Add to
022112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£1.96 Add to
0231134-7334-01GUIDE PLATE£57.68 Add to
0249959-1020-16SCREW M6SF M10 x 20 TL£2.73 Add to
0259739-1031-22NUT M10£2.21 Add to
026112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£1.96 Add to
0271134-7256-01RUBBER GUARD£43.19 Add to
0289897-0825-16SCREW M8 x 25£3.00 Add to
0291134-7398-01PLATE£6.48 Add to
0301134-7252-01FLAP L/H£80.56 Add to
0311134-7252-02FLAP R/H£65.37 Add to
0321134-7254-01BRACKET-LH£34.78 Add to
0331134-7254-02BRACKET-RH£34.78 Add to
0349959-1020-16SCREW M6SF M10 x 20 TL£2.73 Add to
0359739-1031-22NUT M10£2.21 Add to
0369548-0016-00FLANGED BEARING£4.94 Add to
0379897-1025-16SCREW£3.47 Add to
