TRANSMISSION

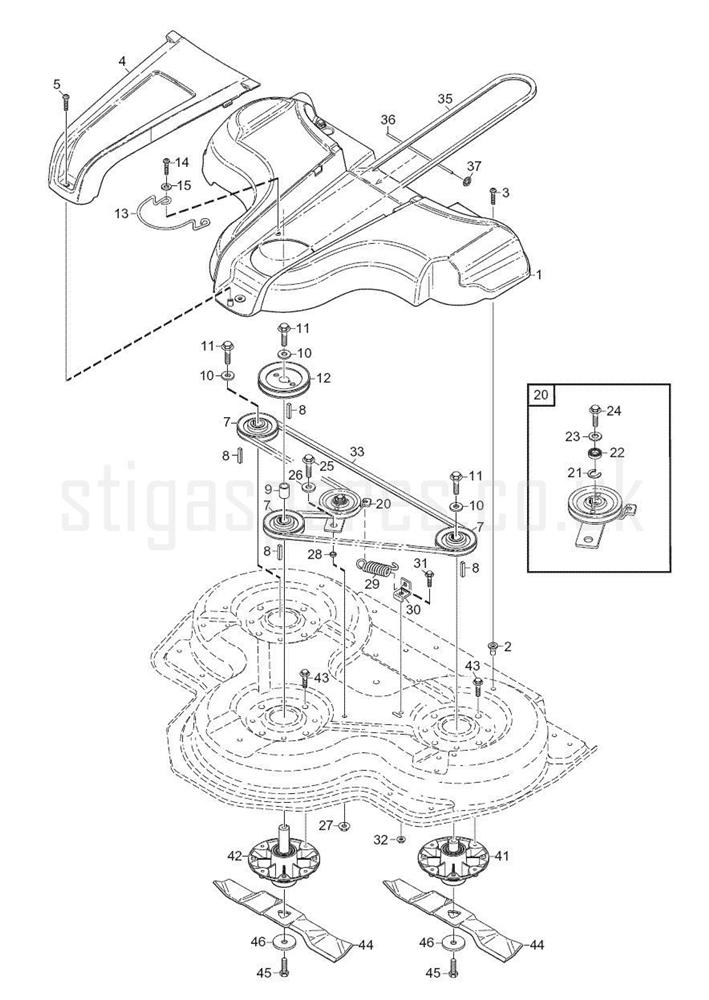

TRANSMISSION assembly details for Stiga 13-2978-31 PARK 100 COMBI 3 EL DECK 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1137-0156-02	TRANSMISSION COVER	£38.26	Add to
002	1134-5595-01	BLIND RIVET NUT	£8.32	Add to
003	9945-0825-16	SCREW M6SF M8 x 25	£2.32	Add to
004	1137-0157-02	TOP COVER	£22.37	Add to
005	9838-9516-12	SCREW K50 x 16	£2.47	Add to
007	1137-0015-01	PULLEY D = 106mm	£28.90	Add to
008	9600-0171-01	FLAT KEY 6 x 6 x 25mm	£3.55	Add to
009	1134-5400-03	SPACER (L=20mm)	£11.18	Add to
010	1134-5406-01	WASHER M10 10.5 x 35 x 5	£4.23	Add to
011	9997-1060-12	SCREW M6S M10 x 60	£2.54	Add to
012	1137-0016-01	PULLEY D = 140mm	£38.44	Add to
013	1137-0158-01	BELT GUIDE	£14.04	Add to
014	9838-9516-12	SCREW K50 x 16	£2.47	Add to
015	9699-0087-02	WASHER 5.3 x 16 x 2	£2.47	Add to
020	387605019/0	TENSION PULLEY ASSEMBLY	£111.34	Add to
021	112610800/0	CIRCLIP D=35	£2.06	Add to
022	9549-0062-01	BALL BEARING	£28.36	Add to
023	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
024	1134-4242-01	SPACER WASHER	£4.78	Add to
025	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
026	9699-0109-02	WASHER 10.5 x 40 x 2	£2.32	Add to
027	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
028	1134-7618-01	SPACER	£10.50	Add to
029	1134-0327-00	SPRING	£12.96	Add to
030	1134-5415-01	SPRING BRACKET	£14.45	Add to
031	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
032	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
033	1134-9066-01	DRIVE BELT	£42.53	Add to
035	1134-9244-01	PTO BELT (2WD PARK 100CD)	£71.56	Add to
035	1134-9157-01	DECK DRIVE BELT [KEVLAR] 4WD	£58.87	Add to
036	1137-0171-01	ROD	£9.28	Add to
037	112604896/0	STARLOCK WASHER D=6	£2.06	Add to
041	387203000/0	SHORT BLADE SHAFT ASSEMBLY	£115.14	Add to
042	387203001/0	LONG BLADE SHAFT ASSEMBLY	£123.25	Add to
043	9945-0825-16	SCREW M6SF M8 x 25	£2.32	Add to
044	1134-9158-01	BLADE BAR ASSEMBLY-100C [3 PCS]	£99.76	Add to
045	9997-1060-12	SCREW M6S M10 x 60	£2.54	Add to
046	1134-6211-01	BLADE WASHER	£3.55	Add to
