CONTROLS

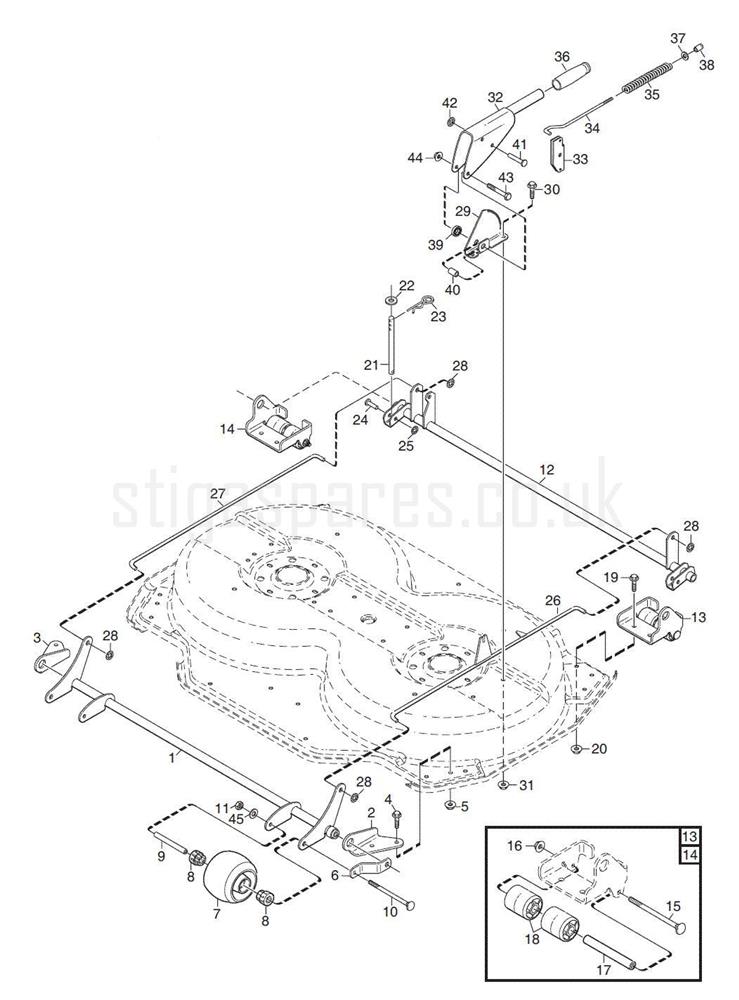

CONTROLS assembly details for Stiga 13-2964-34 PARK 95 COMBI DECK 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-6275-01	FRONT AXLE [YELLOW]	£107.51	Add to
002	1134-6214-01	BRACKET FRONT-LH [YELLOW]	£12.61	Add to
003	1134-6214-02	BRACKET FRONT-RH [YELLOW]	£12.69	Add to
004	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
005	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
006	1134-6278-01	SUPPORT BRACKET [GREY]	£6.80	Add to
007	1134-4284-01	WHEEL	£32.99	Add to
008	1134-4319-01	PLASTIC BUSH	£7.10	Add to
009	1134-4318-01	SPACER TUBE	£10.50	Add to
010	9897-0813-02	SCREW M8 x 130	£5.06	Add to
011	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
012	1134-6197-01	REAR AXLE [YELLOW]	£90.21	Add to
013	1134-6282-01	ROLLER ASSEMBLY L/H	£57.52	Add to
014	1134-6282-02	ROLLER ASSEMBLY R/H	£57.52	Add to
015	9897-0813-02	SCREW M8 x 130	£5.06	Add to
016	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
017	1134-4318-01	SPACER TUBE	£10.50	Add to
018	1134-6206-01	ROLLER (SINGLE)	£23.47	Add to
019	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
020	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
021	1134-6198-01	STUD	£20.66	Add to
022	112521390/0	WASHER M16 17 x 30 x 3	£1.91	Add to
023	9598-2001-02	SPRING PIN	£5.19	Add to
024	9646-0098-22	RIVET 8 x 32	£2.87	Add to
025	112604899/0	STARLOCK WASHER RPCO 308 D=8	£2.06	Add to
026	1134-6249-02	PUSH ROD-LH	£40.31	Add to
027	1134-6246-02	PUSH ROD R/H	£15.81	Add to
028	MX585	PUSH ON FIXING (OBSOLETE) (OBSOLETE)	N/A
029	1137-0259-01	HEIGHT ADJUST QUADRANT	£22.63	Add to
030	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
031	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
032	1134-6244-01	HEIGHT ADJUST LEVER [GREY]	£44.72	Add to
033	1134-6254-01	CATCH	£10.79	Add to
034	9739-1031-22	NUT M10	£2.32	Add to
035	9897-1060-12	SCREW M10 x 60	£3.28	Add to
036	1134-3434-01	ROLLER	£13.77	Add to
037	9699-0087-02	WASHER 5.3 x 16 x 2	£2.47	Add to
038	1134-0041-04	BUSH	£11.46	Add to
039	1134-6286-03	SPACER	£2.18	Add to
040	1134-1565-16	SPACER	£7.36	Add to
041	1134-0041-04	BUSH	£11.46	Add to
042	9672-0006-02	STARLOCK WASHER	£2.32	Add to
043	9997-0850-16	SCREW M6S M8 x 50	£4.52	Add to
044	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
045	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
