FRAME

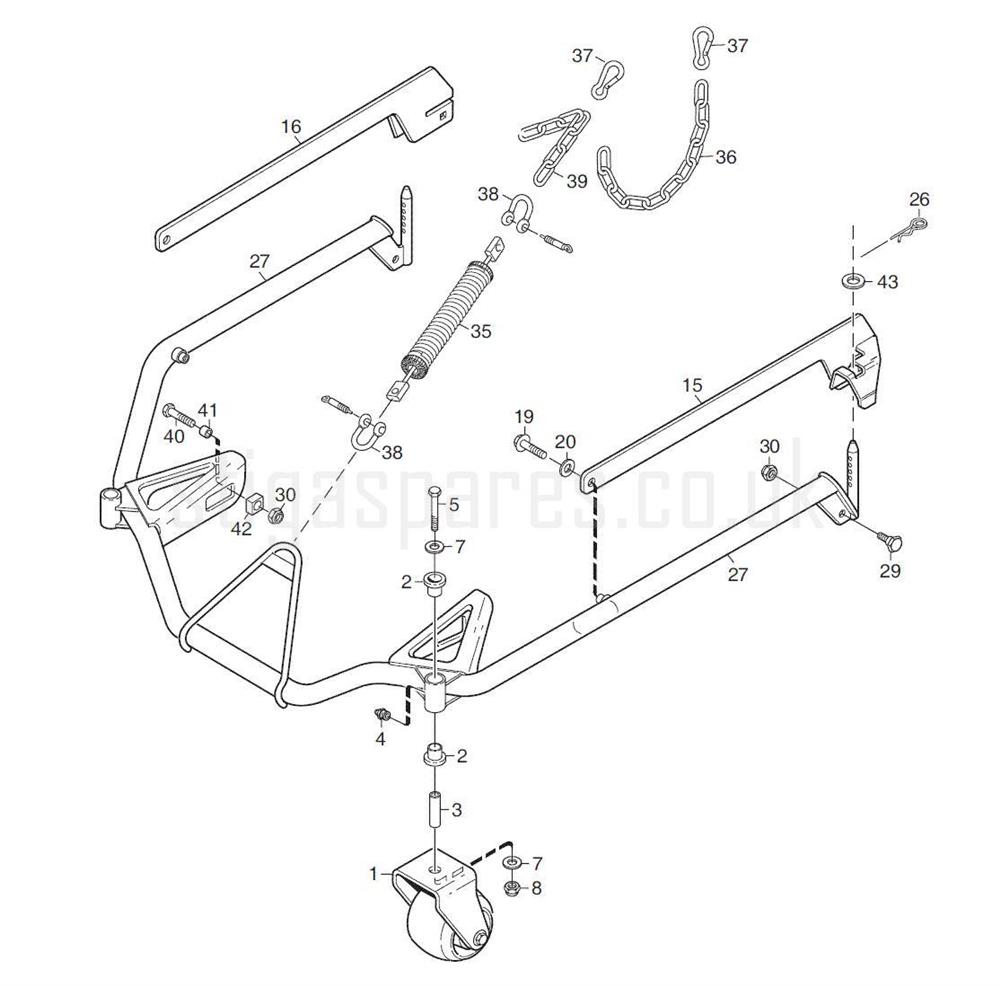

FRAME assembly details for Stiga 13-2938-43 PARK 125 COMBI PRO DECK 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-5884-01PIVOT WHEEL ASSEMBLY£67.57 Add to
002137038009/0WHEEL BUSH£6.09 Add to
0031134-5677-01SPACER£18.74 Add to
004112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.06 Add to
005112794970/0HEX-HEAD SCREW M10 x 90£3.15 Add to
0079699-0030-02WASHER (10 X 26 X 2)£2.14 Add to
008112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
0151134-6141-01MOWER DECK ARM-LH [GREY]£129.74 Add to
0161134-6141-02MOWER DECK ARM-RH [GREY]£129.74 Add to
019112800815/0SCREW TE FL M8 x 16£2.06 Add to
020112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
0269598-2001-02SPRING PIN£5.19 Add to
0271134-5843-01DECK FRAME [GREY]£551.36 Add to
0291134-0240-01SCREW£9.82 Add to
030112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
035387432003/0110/125 DECK LIFT SPRING£57.52 Add to
0361134-6368-03CHAIN [12 LINKS]£20.99 Add to
0371134-5528-01SNAP HOOK£4.52 Add to
0381134-2629-01LIFT LINK£15.69 Add to
0391134-6368-02CHAIN [7 LINKS]£24.95 Add to
040112793301/0HEX-HEAD SCREW M8 x 25£2.06 Add to
0411134-5626-01SPACER£9.28 Add to
0421134-7595-01SPACER£5.32 Add to
0439699-0123-02WASHER 17 x 40 x 6£4.75 Add to
