FRAME

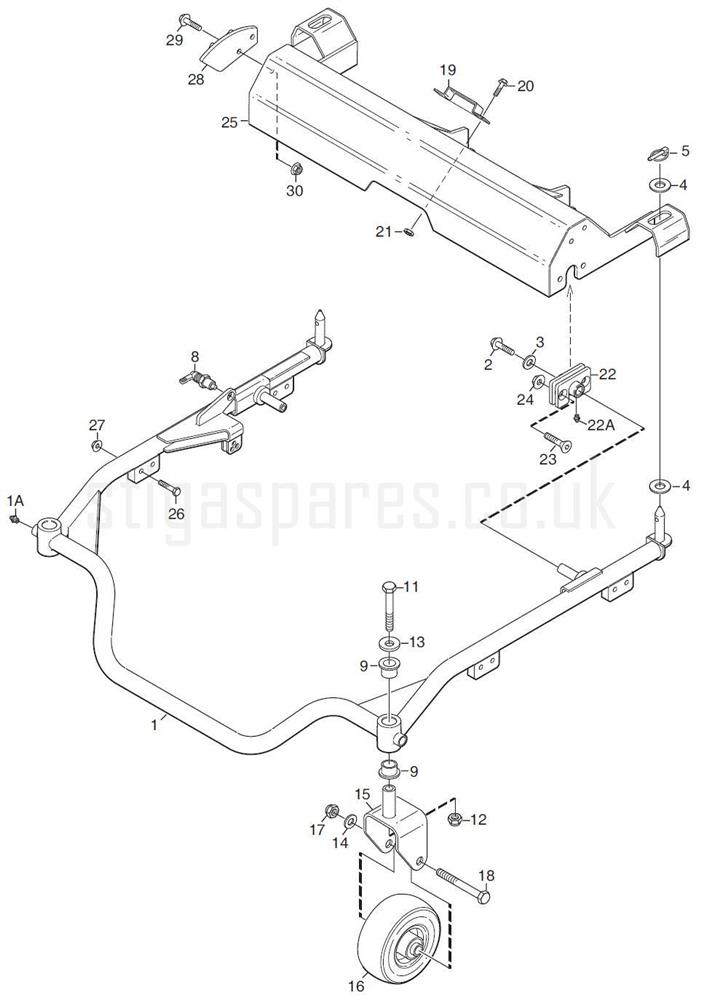

FRAME assembly details for Stiga 13-7825-24 TITAN RM155H COMBI DECK 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.90 Add to
0011137-1146-01CARRIER FRAME ASSEMBLY£1,398.55 Add to
0029959-1025-16SCREW M6SF M10 x 25 TL£3.78 Add to
0031134-5406-01WASHER M10 10.5 x 35 x 5£4.91 Add to
0041134-7411-01WASHER£4.28 Add to
0051134-7345-01LOCKING PIN£2.90 Add to
0081134-7330-01CATCH BOLT£108.36 Add to
0091134-5686-01BEARING BUSH D= 25.4mm£14.49 Add to
0119997-1211-02SCREW M6S M12 x 110£6.55 Add to
0129747-1231-02NUT£2.90 Add to
0131134-7410-01WASHER£4.28 Add to
014112521390/0WASHER M16 17 x 30 x 3£2.77 Add to
0151134-7477-01WHEEL FORK£115.92 Add to
0161135-3394-01PIVOT WHEEL£120.96 Add to
0179747-1631-02NUT£2.90 Add to
0189997-1616-02SCREW M6S M16 x 160£6.04 Add to
0191134-7333-01CLAMP£12.57 Add to
0209959-1025-16SCREW M6SF M10 x 25 TL£3.78 Add to
0219739-1031-22NUT M10£3.15 Add to
022112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.90 Add to
0221134-7002-01SUPPORT PLATE£79.38 Add to
0239924-1240-16SCREW£2.90 Add to
0249739-1241-22NUT£4.37 Add to
0251137-1059-01USE 387800033/0N/A POA
0269997-1045-12SCREW£3.91 Add to
027112156602/0LOW SELF-LOCKING NUT M10 UNI7474 ACC.6S£2.65 Add to
0281134-7435-01CATCH£78.12 Add to
0299959-1025-16SCREW M6SF M10 x 25 TL£3.78 Add to
0309739-1031-22NUT M10£3.15 Add to
0991135-3156-02LABEL KIT (TITAN 135H)£56.97 Add to
0991135-3156-04LABEL KIT (TITAN 155H)£77.13 Add to
