CONTROL HYDRAULICS

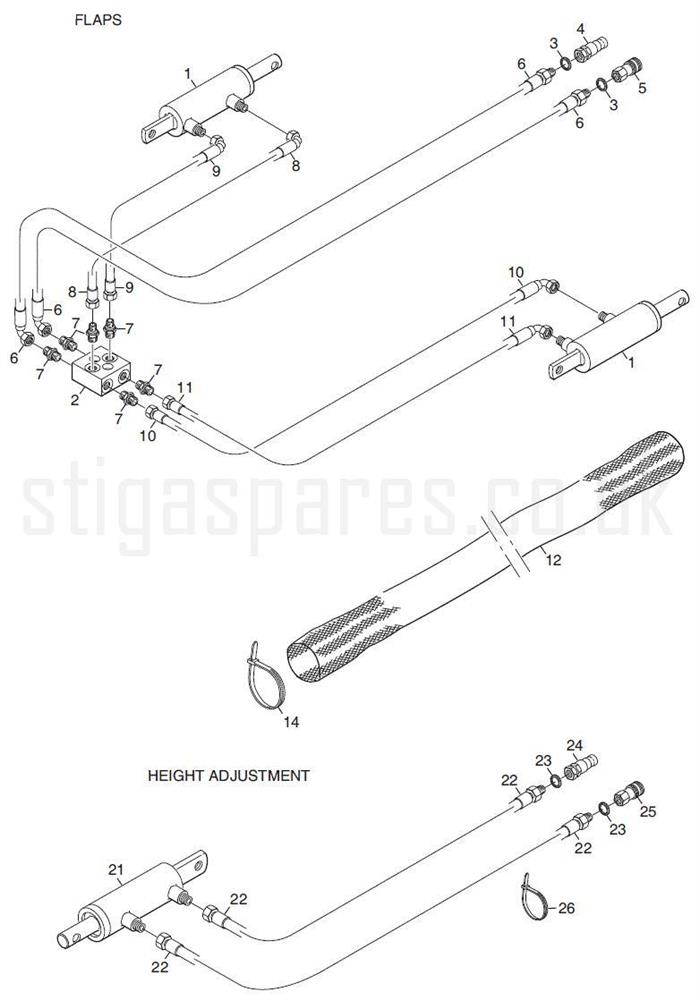

CONTROL HYDRAULICS assembly details for Stiga 13-7823-24 TITAN RM135H COMBI DECK 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-7052-01HYDRAULIC CYLINDER£278.46 Add to
0021134-7332-01DISTRIBUTION BLOCK£97.02 Add to
0031134-4948-01SEAL WASHER 1/4"£3.40 Add to
0041134-6042-01QUICK COUPLING-MALE 1/4"£28.53 Add to
0051135-2498-01KNOB£8.19 Add to
0061134-7287-01HYDRAULIC TUBE£61.41 Add to
0071134-7165-01HYDRAULIC CONNECTOR£8.95 Add to
0081137-0185-05HYDRAULIC HOSE 1/4"£41.42 Add to
0091137-0185-07HYDRAULIC HOSE 1/4"£45.36 Add to
0101134-7289-01HYDRAULIC TUBE£82.01 Add to
0111137-0185-08HYDRAULIC HOSE 1/4"£38.73 Add to
0121134-7627-01HOSE GUARD£57.00 Add to
0149579-0017-01CABLE TIE£6.13 Add to
0211134-7052-01HYDRAULIC CYLINDER£278.46 Add to
0221134-7292-01HYDRAULIC TUBE£70.89 Add to
0231134-4948-01SEAL WASHER 1/4"£3.40 Add to
0241134-6042-01QUICK COUPLING-MALE 1/4"£28.53 Add to
0251135-2498-01KNOB£8.19 Add to
0269579-0016-01CABLE TIE (YELLOW)£6.16 Add to
