TRANSMISSION

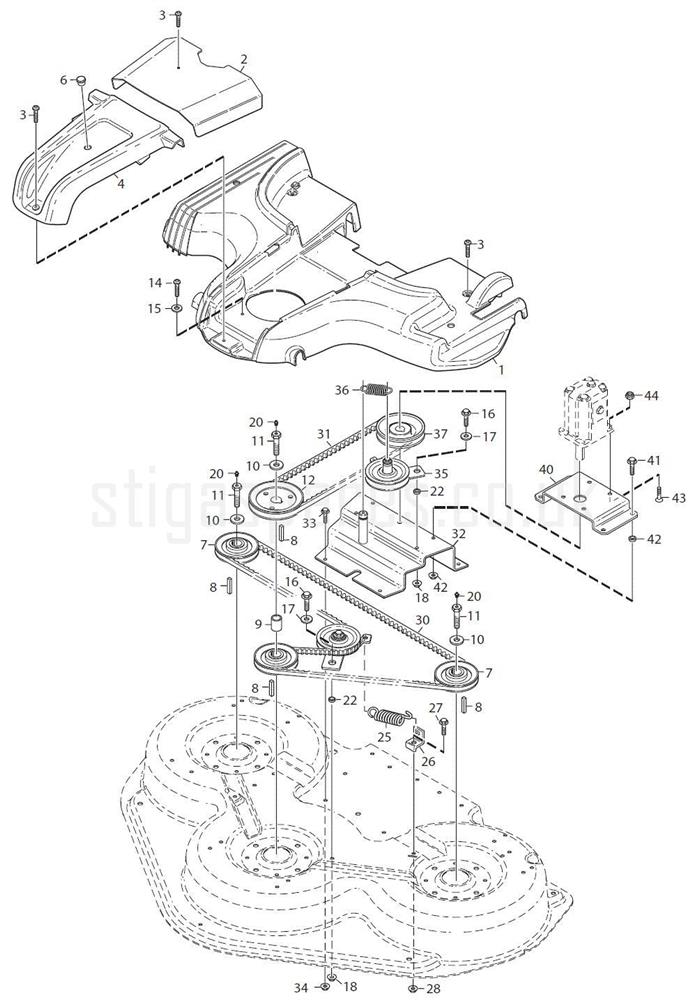

TRANSMISSION assembly details for Stiga 13-7822-24 TITAN RM125H COMBI DECK 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1137-0268-01	TRANSMISSION COVER [GREY]	£58.64	Add to
002	1134-7870-01	TRANSMISSION COVER	£84.99	Add to
003	9893-0616-16	SCREW M6 x 16	£2.47	Add to
004	1137-0270-01	COVER [YELLOW]	£16.36	Add to
006	1134-7518-01	PLASTIC PLUG	£3.55	Add to
007	1137-0015-01	PULLEY D = 106mm	£28.90	Add to
008	9600-0171-01	FLAT KEY 6 x 6 x 25mm	£3.55	Add to
009	1134-5400-03	SPACER (L=20mm)	£11.18	Add to
010	1134-5406-01	WASHER M10 10.5 x 35 x 5	£4.23	Add to
011	1134-7517-01	SCREW	£47.97	Add to
012	1137-0017-01	PULLEY D=150mm	£38.44	Add to
014	9893-0616-16	SCREW M6 x 16	£2.47	Add to
015	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
016	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
017	9699-0109-02	WASHER 10.5 x 40 x 2	£2.32	Add to
018	1137-0155-01	SPACER	£4.52	Add to
019	387605019/0	TENSION PULLEY ASSEMBLY	£111.34	Add to
020	112379511/0	STRAIGHT GREASE NIPPLE M6 x 1	£2.06	Add to
022	1134-7618-01	SPACER	£10.50	Add to
025	1134-0327-00	SPRING	£12.96	Add to
026	1134-5415-01	SPRING BRACKET	£14.45	Add to
027	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
028	1137-0155-01	SPACER	£4.52	Add to
030	1134-9087-01	DECK BELT	£57.52	Add to
031	9585-0186-01	DECK BELT [125H]	£38.44	Add to
032	1134-7868-01	PLATE ASSEMBLY	£232.10	Add to
033	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
034	1137-0155-01	SPACER	£4.52	Add to
035	1134-7610-01	TENSION PULLEY	£64.32	Add to
036	1134-7619-01	SPRING	£27.09	Add to
037	1134-7871-01	BELT PULLEY	£279.08	Add to
040	1134-7869-01	MOTOR BRACKET	£121.45	Add to
041	9945-0825-16	SCREW M6SF M8 x 25	£2.32	Add to
042	1134-7618-01	SPACER	£10.50	Add to
043	9924-0830-16	SCREW MF6S M8 x 30	£2.06	Add to
044	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
