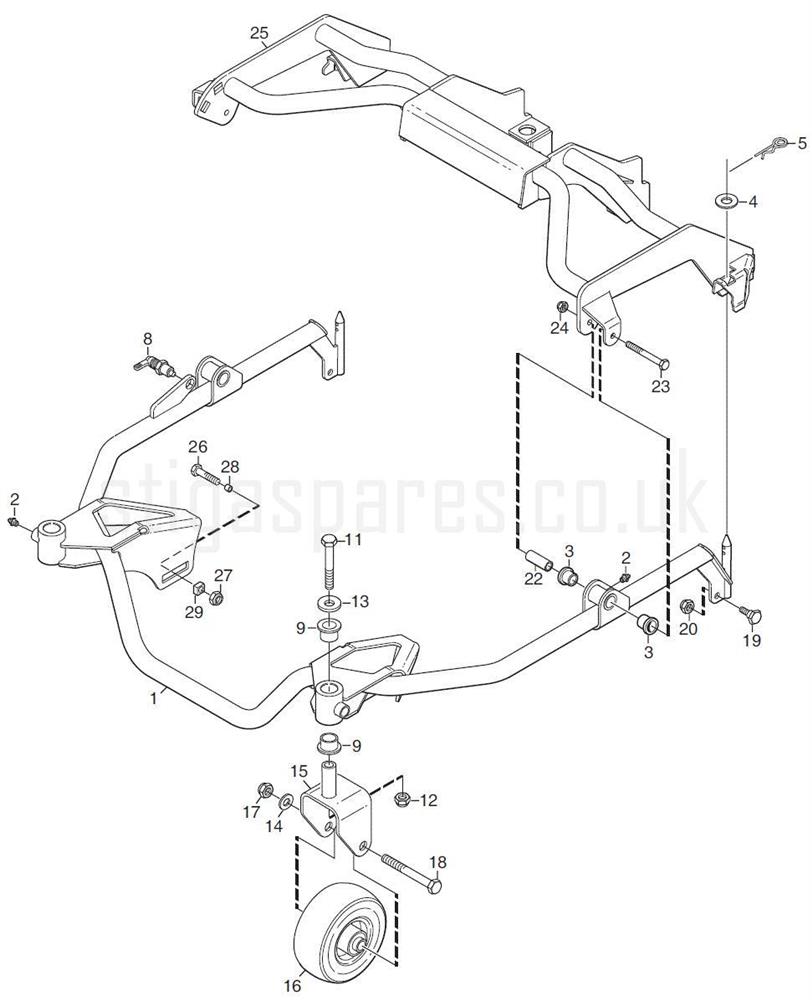

FRAME assembly details for Stiga 13-7822-24 TITAN RM125H COMBI DECK 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-7577-01FRAME ASSEMBLY£839.16 Add to
002112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.90 Add to
0039544-0002-01BUSH D. 20£8.69 Add to
004112523060/0WASHER M8 8.4 X 24 X 2 (NOT USED ON STIGA MODELS)£2.90 Add to
0059598-2001-02SPRING PIN£5.80 Add to
0081134-7330-01CATCH BOLT£108.36 Add to
0091134-5686-01BEARING BUSH D= 25.4mm£14.49 Add to
0119997-1211-02SCREW M6S M12 x 110£6.55 Add to
0129747-1231-02NUT£2.90 Add to
013112521390/0WASHER M16 17 x 30 x 3£2.77 Add to
0141134-7410-01WASHER£4.28 Add to
0151134-7477-01WHEEL FORK£115.92 Add to
0161135-3394-01PIVOT WHEEL£120.96 Add to
0179747-1631-02NUT£2.90 Add to
0189997-1616-02SCREW M6S M16 x 160£6.04 Add to
0191134-0240-01SCREW£10.08 Add to
020112154220/0SELF-LOCK NUT M8£2.90 Add to
0221134-7617-01SPACER£11.21 Add to
0239997-1080-12SCREW M6S M10 x 80£5.17 Add to
024112156602/0LOW SELF-LOCKING NUT M10 UNI7474 ACC.6S£2.65 Add to
0251134-7805-01LIFT FRAME ASSEMBLY£1,434.93 Add to
026112793301/0HEX-HEAD SCREW M8 x 25£2.90 Add to
027112154220/0SELF-LOCK NUT M8£2.90 Add to
0281134-5626-01SPACER£9.58 Add to
0291134-7595-01SPACER£5.92 Add to
