CONTROLS

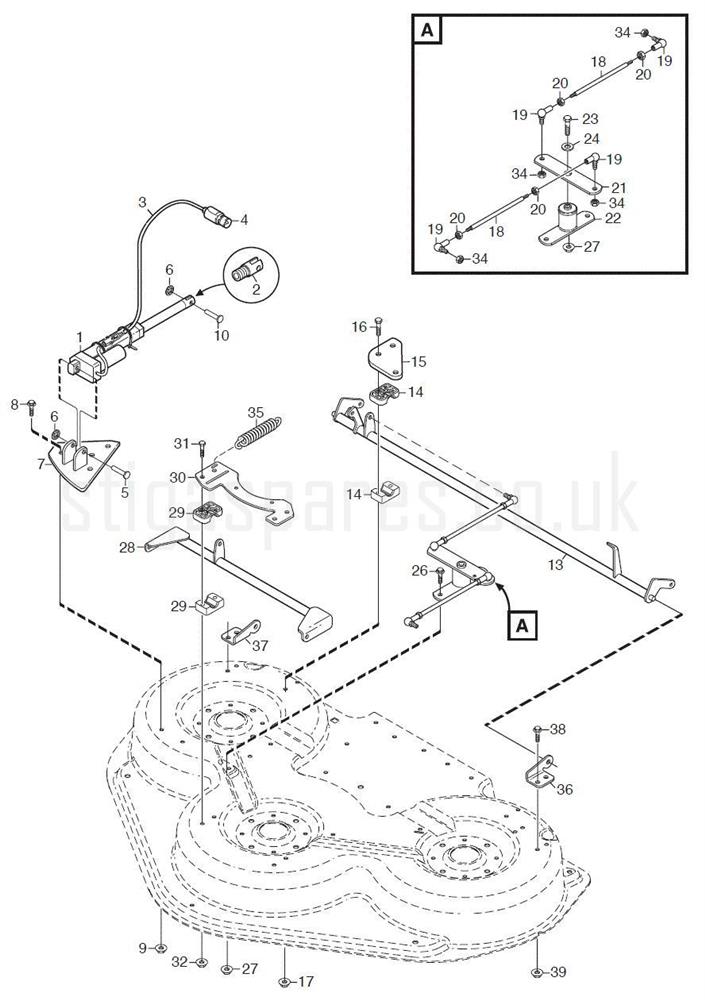

CONTROLS assembly details for Stiga 13-7822-24 TITAN RM125H COMBI DECK 2012 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	118001003/1	ELECTRIC LIFTER CD 110-125	£393.97	Add to
002	1134-6373-01	ROD END (OBSOLETE)	N/A
003	1134-6418-03	CABLE L=810mm	£35.67	Add to
004	1134-6182-01	MALE TERMINAL	£28.12	Add to
005	1134-0041-04	BUSH	£11.46	Add to
006	112604899/0	STARLOCK WASHER RPCO 308 D=8	£2.06	Add to
007	9739-1031-22	NUT M10	£2.32	Add to
008	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
009	1137-0155-01	SPACER	£4.52	Add to
010	9646-0098-22	RIVET 8 x 32	£2.87	Add to
013	1134-7603-01	REAR AXLE ASSEMBLY	£230.29	Add to
014	1134-5469-01	BEARING HALF	£12.00	Add to
015	1134-5471-01	BEARING PLATE-REAR	£20.04	Add to
016	112691200/0	HEX-HEAD SCREW M8 x 45	£2.06	Add to
017	1137-0155-01	SPACER	£4.52	Add to
018	137033108/0	PUSH ROD	£17.41	Add to
019	9570-0002-00	ELBOW LINK	£33.30	Add to
020	1137-0155-01	SPACER	£4.52	Add to
021	1134-5855-01	PIVOT ARM	£34.35	Add to
022	1134-5858-01	PIVOT BRACKET	£32.83	Add to
023	112692050/0	HEX-HEAD SCREW	£1.91	Add to
024	1134-5127-01	WASHER	£4.52	Add to
026	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
027	1137-0155-01	SPACER	£4.52	Add to
028	1134-5427-01	FRONT AXLE [GREY]	£91.78	Add to
029	1134-5469-01	BEARING HALF	£12.00	Add to
030	1134-5846-01	FRONT BEARING PLATE	£36.46	Add to
031	112691200/0	HEX-HEAD SCREW M8 x 45	£2.06	Add to
032	1137-0155-01	SPACER	£4.52	Add to
034	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
035	1134-5847-01	SPRING	£19.90	Add to
036	1134-7490-01	BRACKET L/H	£42.53	Add to
037	1134-7490-02	BRACKET R/H	£42.53	Add to
038	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
039	1137-0155-01	SPACER	£4.52	Add to
