CASING

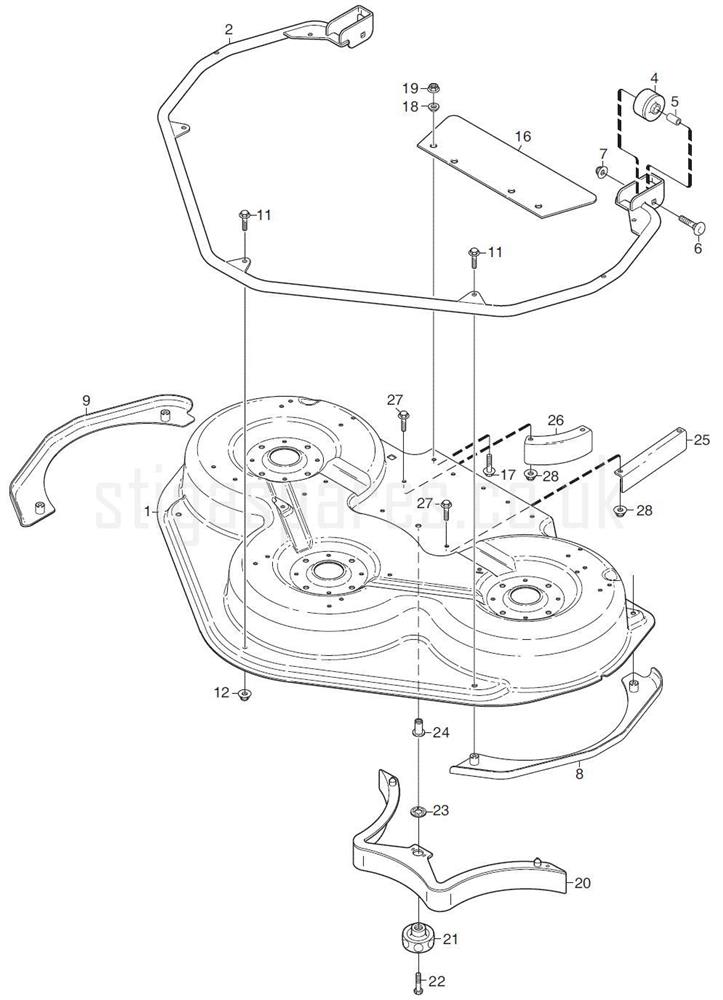

CASING assembly details for Stiga 13-7822-24 TITAN RM125H COMBI DECK 2012 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-7750-01	DECK CASING 125C [GREY]	£616.83	Add to
002	1134-6110-03	PROTECTION FRAME [GREY]	£480.54	Add to
004	1134-3434-01	ROLLER	£13.77	Add to
005	1134-0041-04	BUSH	£11.46	Add to
006	9897-1060-12	SCREW M10 x 60	£3.28	Add to
007	9739-1031-22	NUT M10	£2.32	Add to
008	1134-7520-01	WEAR PLATE L/H	£91.78	Add to
009	1134-7520-02	WEAR PLATE R/H	£91.78	Add to
011	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
012	1137-0155-01	SPACER	£4.52	Add to
016	1134-5885-01	RUBBER FLAP	£11.98	Add to
017	9959-0825-16	SCREW FLANGED TE M6SF M8 x 25	£2.06	Add to
018	1134-4185-01	FLANGE WASHER	£6.71	Add to
019	1137-0155-01	SPACER	£4.52	Add to
020	1134-5409-02	MULCH PLUG [BLACK]	£141.12	Add to
021	122399900/0	3 SPOKE HANDWHEEL [BLACK]	£2.06	Add to
022	112691115/0	HEX-HEAD SCREW M8 x 40	£2.06	Add to
023	112604899/0	STARLOCK WASHER RPCO 308 D=8	£2.06	Add to
024	1134-5595-01	BLIND RIVET NUT	£8.32	Add to
025	1134-5553-02	GUIDE PLATE (STRAIGHT)	£35.71	Add to
026	1134-5554-02	GUIDE PLATE (CURVED)	£38.44	Add to
027	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
028	1137-0155-01	SPACER	£4.52	Add to
