ELECTRIC CONTROL

ELECTRIC CONTROL assembly details for Stiga 13-2970-04 VILLA 105 COMBI EL DECK 2012 model

Parts list

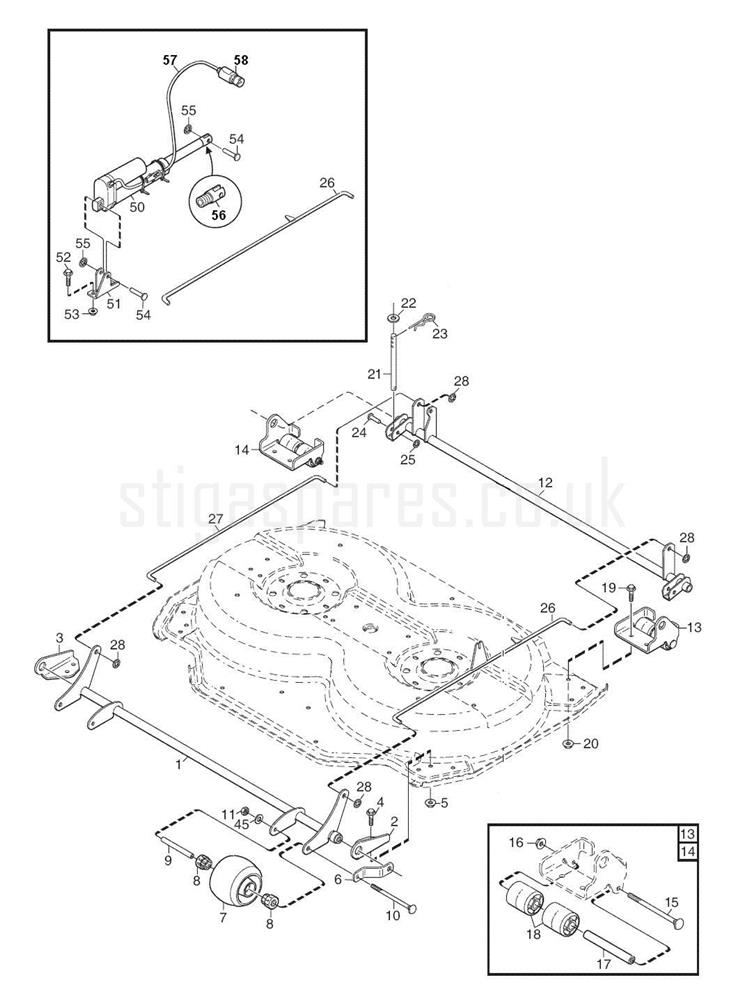

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-6275-01	FRONT AXLE [YELLOW]	£107.51	Add to
002	1134-6215-01	BRACKET FRONT-LH [YELLOW]	£14.86	Add to
003	1134-6215-02	BRACKET FRONT-RH [YELLOW]	£14.86	Add to
004	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
005	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
006	1134-6278-01	SUPPORT BRACKET [GREY]	£6.80	Add to
007	1134-4284-01	WHEEL	£32.99	Add to
008	1134-4319-01	PLASTIC BUSH	£7.10	Add to
009	1134-4318-01	SPACER TUBE	£10.50	Add to
010	9897-0813-02	SCREW M8 x 130	£5.06	Add to
011	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
012	1134-6197-01	REAR AXLE [YELLOW]	£90.21	Add to
013	1134-6282-01	ROLLER ASSEMBLY L/H	£57.52	Add to
014	1134-6282-02	ROLLER ASSEMBLY R/H	£57.52	Add to
015	9897-0813-02	SCREW M8 x 130	£5.06	Add to
016	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
017	1134-4318-01	SPACER TUBE	£10.50	Add to
018	1134-6206-01	ROLLER (SINGLE)	£23.47	Add to
019	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
020	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
021	1134-6198-01	STUD	£20.66	Add to
022	112521390/0	WASHER M16 17 x 30 x 3	£1.91	Add to
023	9598-2001-02	SPRING PIN	£5.19	Add to
024	9646-0098-22	RIVET 8 x 32	£2.87	Add to
025	112604899/0	STARLOCK WASHER RPCO 308 D=8	£2.06	Add to
026	1134-6250-01	PUSH ROD-LH	£22.08	Add to
027	1134-6246-01	PUSH ROD-RH	£15.81	Add to
028	MX585	PUSH ON FIXING (OBSOLETE) (OBSOLETE)	N/A
045	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
050	118001004/2	ELECTRIC LIFTER CD 95-100-105	£335.96	Add to
051	1134-6192-01	BRACKET	£11.05	Add to
052	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
053	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
054	9646-0098-22	RIVET 8 x 32	£2.87	Add to
055	112604899/0	STARLOCK WASHER RPCO 308 D=8	£2.06	Add to
056	1134-6373-01	ROD END (OBSOLETE)	N/A
057	387149301/0	ACTUATOR CABLE L=490	£23.72	Add to
058	387149301/0	ACTUATOR CABLE L=490	£23.72	Add to
