CONTROLS

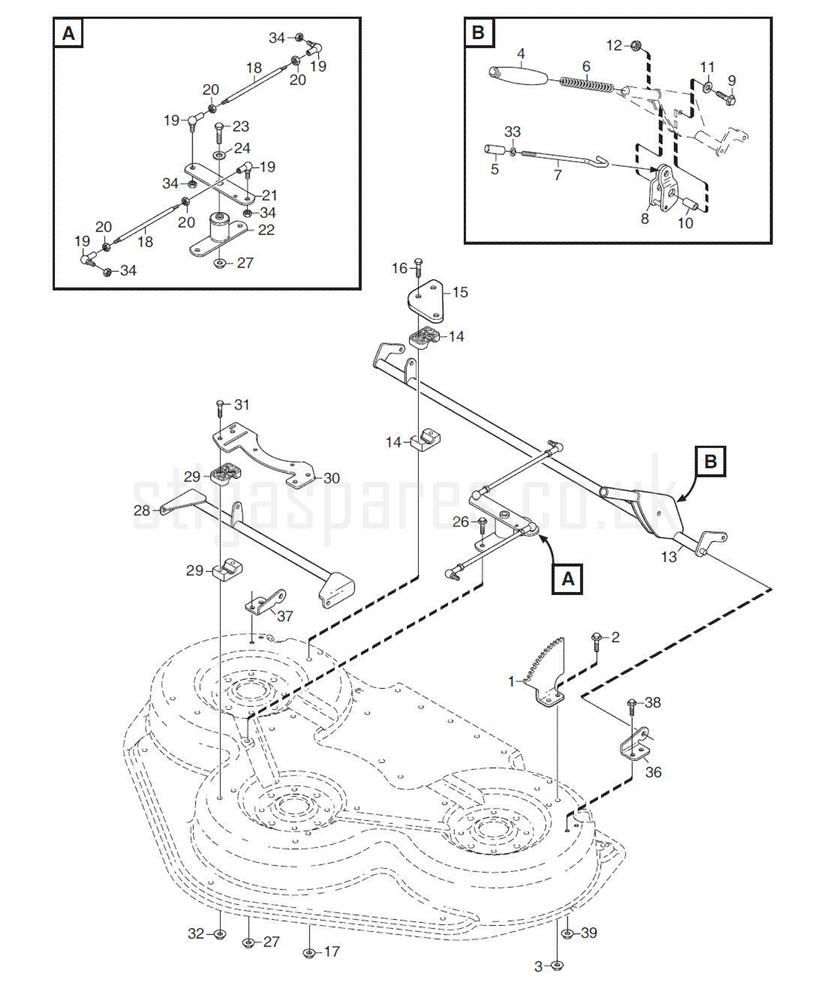

CONTROLS assembly details for Stiga 13-2938-43 PARK 125 COMBI PRO DECK 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-5447-01HEIGHT ADJUST QUADRANT£39.06 Add to
002112800815/0SCREW TE FL M8 x 16£2.90 Add to
003112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.90 Add to
0041134-3434-01ROLLER£13.73 Add to
0051134-0041-04BUSH£11.59 Add to
0069897-1060-12SCREW M10 x 60£4.03 Add to
0079739-1031-22NUT M10£3.15 Add to
0081134-5440-01CATCH£27.57 Add to
0099997-0840-16SCREW M6S M8 x 40£2.90 Add to
0101134-1565-13SPACER£6.68 Add to
011112521350/0WASHER M8 8.4 x 16 x 1.6£2.90 Add to
012112154220/0SELF-LOCK NUT M8£2.90 Add to
0131134-7602-01REAR AXLE ASSEMBLY£259.05 Add to
0141134-5469-01BEARING HALF£12.10 Add to
0151134-5471-01BEARING PLATE-REAR£19.53 Add to
016112691200/0HEX-HEAD SCREW M8 x 45£2.90 Add to
017112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.90 Add to
0181134-5473-01Push Rod£18.09 Add to
0199570-0002-00ELBOW LINK£31.79 Add to
020112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.90 Add to
0211134-5855-01PIVOT ARM£32.76 Add to
0221134-5858-01PIVOT BRACKET£31.36 Add to
023112692050/0HEX-HEAD SCREW M8x80 UNI 5737 ACC.8.8£2.77 Add to
0241134-5127-01WASHER£5.17 Add to
026112800815/0SCREW TE FL M8 x 16£2.90 Add to
027112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.90 Add to
0281134-5427-01FRONT AXLE [GREY]£85.86 Add to
0291134-5469-01BEARING HALF£12.10 Add to
0301134-5846-01FRONT BEARING PLATE£34.71 Add to
031112691200/0HEX-HEAD SCREW M8 x 45£2.90 Add to
032112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.90 Add to
0339699-0087-02WASHER 5.3 x 16 x 2£3.28 Add to
034112154220/0SELF-LOCK NUT M8£2.90 Add to
0361134-7490-01BRACKET L/H£40.32 Add to
0371134-7490-02BRACKET R/H£40.32 Add to
0389959-0820-16SCREW M6SF M8 x 20 TL£2.90 Add to
039112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.90 Add to
