FRAME

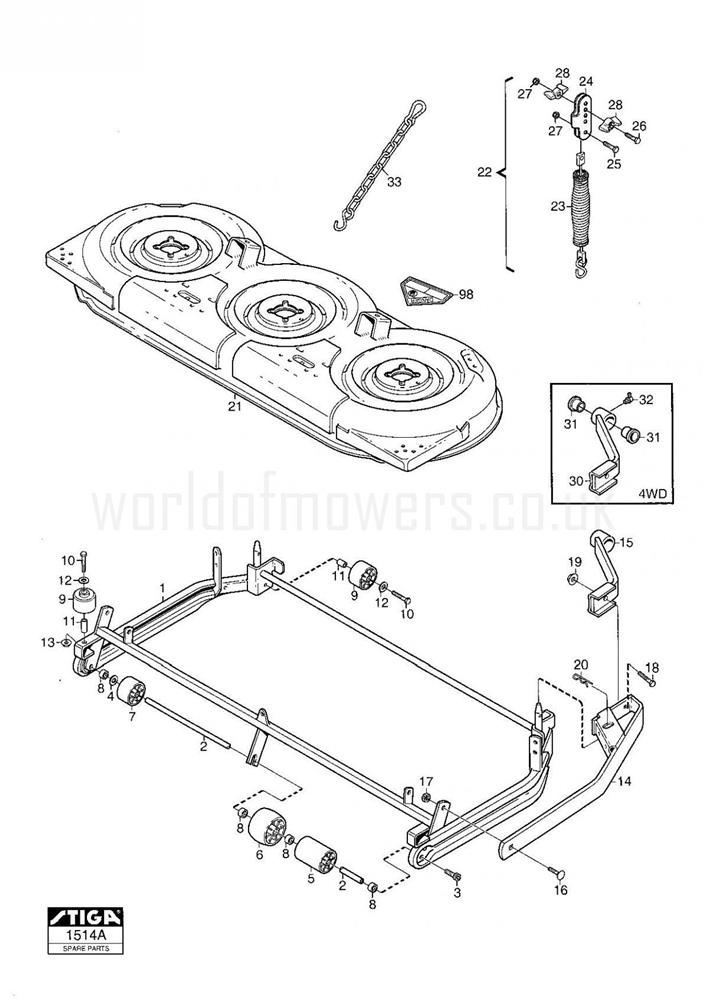

FRAME assembly details for Stiga 13-2915-29 Park 121M 2007 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-3433-01	FRAME-MOWER DECK	£582.84	Add to
002	1134-0304-06	SHAFT	£157.09	Add to
003	9935-1020-16	SCREW MC6S M10 x 20	£7.23	Add to
004	112521390/0	WASHER M16 17 x 30 x 3	£1.91	Add to
005	1134-2406-01	GUARD ROLLER	£24.95	Add to
006	1134-2405-01	CASING WHEEL	£24.95	Add to
007	1134-3434-01	ROLLER	£13.77	Add to
008	1134-3047-01	SPACER	£8.04	Add to
009	1134-3434-01	ROLLER	£13.77	Add to
010	9997-1060-12	SCREW M6S M10 x 60	£2.54	Add to
011	1134-0041-04	BUSH	£11.46	Add to
012	9699-0030-02	WASHER (10 X 26 X 2)	£2.14	Add to
013	9739-1031-22	NUT M10	£2.32	Add to
014	1134-3424-01	ATTACHING BAR	£191.18	Add to
015	1134-3710-01	ATTACHMENT ARM [2WD]	£34.64	Add to
016	9898-1035-16	SCREW 10 x 35	£3.15	Add to
017	1134-4775-01	LOCK NUT	£2.47	Add to
018	9997-1035-16	SCREW M6S M10 x 35	£3.28	Add to
019	9739-1031-22	NUT M10	£2.32	Add to
020	9598-0003-02	SPRING PIN	£2.32	Add to
021	1134-3681-01	DECK CASING 121M [YELLOW] (OBSOLETE)	N/A
022	1134-4688-02	ACCESSORY BAG	£94.93	Add to
023	1134-4574-01	DECK SPRING	£59.19	Add to
024	1134-4577-01	SPRING PIVOT	£50.70	Add to
025	112793301/0	HEX-HEAD SCREW M8 x 25	£2.06	Add to
026	119216047/0	HEX-HEAD SCREW M8 X 35	£2.06	Add to
027	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
028	1134-4481-01	WING NUT (M8)	£2.06	Add to
030	1134-5886-01	ATTACHMENT ARM [4WD]	£77.95	Add to
031	1134-5686-01	BEARING BUSH D= 25.4mm	£14.58	Add to
032	9501-0502-00	GREASE JOINT	£8.87	Add to
033	1134-5952-01	CHAIN	£41.16	Add to
098	9402-3124-00	WARNING DECAL "DANGER"	£16.50	Add to
098	9402-3203-00	WARNING LABEL W.SYMBOLS	£24.95	Add to
