Sweeper

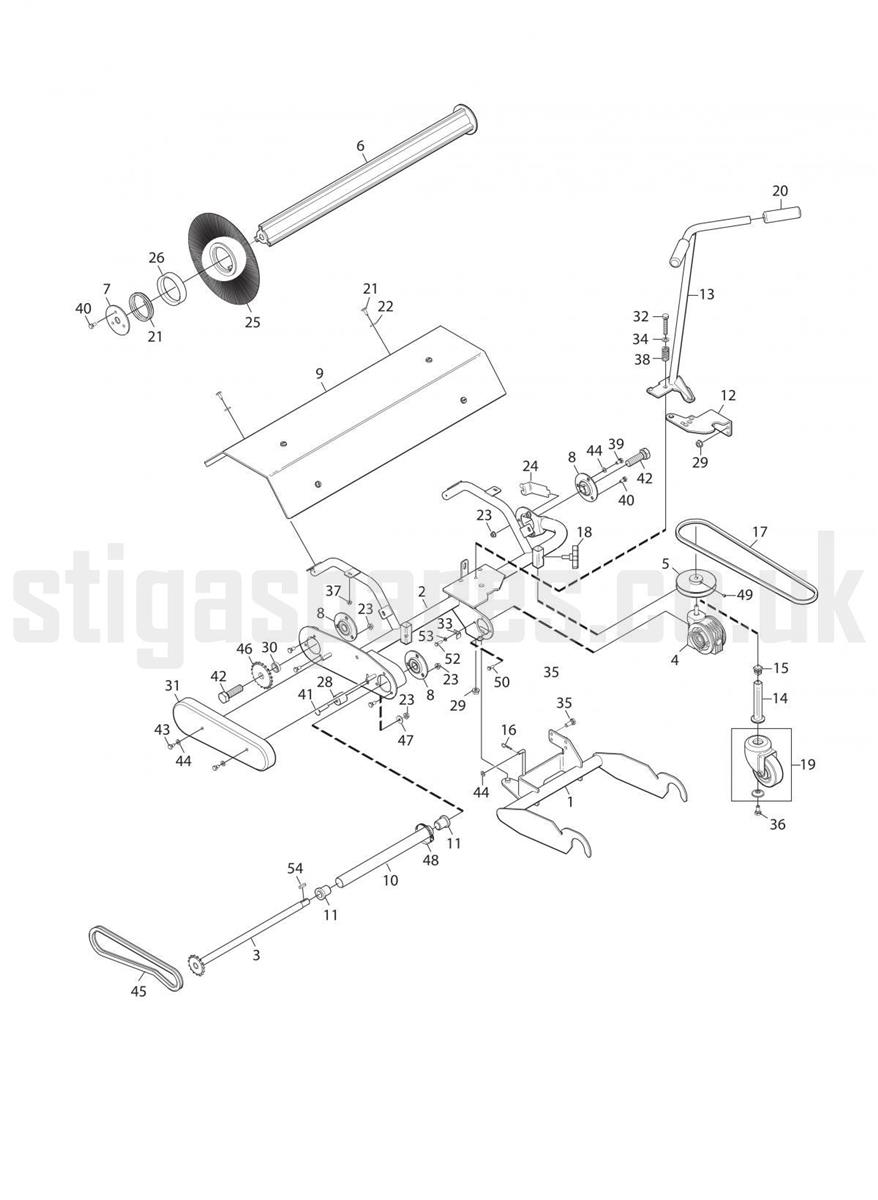

Sweeper assembly details for Stiga SWEEPER VILLA 300-500 13-3920-11 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1319-2304-01	***	N/A	POA
001	1319-2304-01	***	N/A	POA
002	1319-2267-01	MOUNTING FRAME	£726.43	Add to
002	1319-2267-01	MOUNTING FRAME	£726.43	Add to
003	1319-2275-01	DRIVE SHAFT	£87.40	Add to
003	1319-2275-01	DRIVE SHAFT	£87.40	Add to
004	1319-2263-01	WORM GEAR (7:1)	£588.19	Add to
004	1319-2263-01	WORM GEAR (7:1)	£588.19	Add to
005	1319-2261-01	PULLEY	£90.57	Add to
005	1319-2261-01	PULLEY	£90.57	Add to
006	1319-2279-01	ROLLER SHAFT (850 MM)	£339.22	Add to
006	1319-2279-01	ROLLER SHAFT (850 MM)	£339.22	Add to
007	1319-2278-01	FLANGE	£33.63	Add to
007	1319-2278-01	FLANGE	£33.63	Add to
008	1319-1539-01	BEARING	£84.77	Add to
008	1319-1539-01	BEARING	£84.77	Add to
009	1319-2268-01	GUARD, BRUSH ROLLER	£153.95	Add to
009	1319-2268-01	GUARD, BRUSH ROLLER	£153.95	Add to
010	1319-2271-01	GUARD, DRIVE SHAFT	£50.40	Add to
010	1319-2271-01	GUARD, DRIVE SHAFT	£50.40	Add to
011	1319-2253-01	BEARING	£9.82	Add to
011	1319-2253-01	BEARING	£9.82	Add to
012	1319-2295-01	BRACKET	£83.91	Add to
012	1319-2295-01	BRACKET	£83.91	Add to
013	1319-2276-01	ANGLE CONTROL TUBE	£219.26	Add to
013	1319-2276-01	ANGLE CONTROL TUBE	£219.26	Add to
014	1319-2280-01	TUBE, PIVOT WHEEL	£27.00	Add to
014	1319-2280-01	TUBE, PIVOT WHEEL	£27.00	Add to
015	1319-2254-01	Dust Cap	£4.37	Add to
015	1319-2254-01	Dust Cap	£4.37	Add to
016	1319-2305-01	***	N/A	POA
016	1319-2305-01	***	N/A	POA
017	9585-0075-00	Belt	N/A	POA
017	9585-0075-00	Belt	N/A	POA
018	1319-1900-01	ADJUSTING KNOB	£4.78	Add to
018	1319-1900-01	ADJUSTING KNOB	£4.78	Add to
019	1319-2256-01	SUPPORT WHEEL	£88.63	Add to
019	1319-2256-01	SUPPORT WHEEL	£88.63	Add to
020	1319-1703-01	GRIP	£38.60	Add to
020	1319-1703-01	GRIP	£38.60	Add to
021	1319-2258-01	Screw	£4.27	Add to
021	1319-2258-01	Screw	£4.27	Add to
022	1319-2259-01	Washer	£4.01	Add to
022	1319-2259-01	Washer	£4.01	Add to
023	9739-0931-22	***	N/A	POA
023	9739-0931-22	***	N/A	POA
024	1319-2270-01	COVER	£14.90	Add to
024	1319-2270-01	COVER	£14.90	Add to
025	1319-2260-01	BRUSH RING (3" x 300) "	£12.68	Add to
025	1319-2260-01	BRUSH RING (3" x 300) "	£12.68	Add to
026	1319-2257-01	P tic Collar	£4.48	Add to
026	1319-2257-01	P tic Collar	£4.48	Add to
027	1319-2255-01	Spring	£11.95	Add to
027	1319-2255-01	Spring	£11.95	Add to
028	1319-2045-01	CHAIN TIGHTENER	£28.84	Add to
028	1319-2045-01	CHAIN TIGHTENER	£28.84	Add to
029	9739-1031-22	NUT M10	£2.32	Add to
029	9739-1031-22	NUT M10	£2.32	Add to
030	1319-2273-01	COLLAR	£21.29	Add to
030	1319-2273-01	COLLAR	£21.29	Add to
031	1319-2277-01	CHAIN COVER	£194.03	Add to
031	1319-2277-01	CHAIN COVER	£194.03	Add to
032	9997-1060-12	SCREW M6S M10 x 60	£2.54	Add to
032	9997-1060-12	SCREW M6S M10 x 60	£2.54	Add to
033	1319-2265-01	Support	£12.66	Add to
033	1319-2265-01	Support	£12.66	Add to
034	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
034	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
035	112793301/0	HEX-HEAD SCREW M8 x 25	£2.06	Add to
035	112793301/0	HEX-HEAD SCREW M8 x 25	£2.06	Add to
036	9997-1020-016	***	N/A	POA
036	9997-1020-016	***	N/A	POA
037	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
037	118550275/1	STARTER PAWL KIT	£12.68	Add to
038	1319-2264-01	SPRING	£28.06	Add to
038	1319-2264-01	SPRING	£28.06	Add to
039	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
039	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
040	112792610/0	HEX-HEAD SCREW M8 x 16	£2.02	Add to
040	112792610/0	HEX-HEAD SCREW M8 x 16	£2.02	Add to
041	1319-2140-01	Screw	£4.01	Add to
041	1319-2140-01	Screw	£4.01	Add to
042	1319-2281-01	Screw	£6.25	Add to
042	1319-2281-01	Screw	£6.25	Add to
043	9997-0812-16	SCREW M6S M8 x 12	£2.47	Add to
043	9997-0812-16	SCREW M6S M8 x 12	£2.47	Add to
044	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
044	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
045	1319-2274-01	DRIVE CHAIN	£105.21	Add to
045	1319-2274-01	DRIVE CHAIN	£105.21	Add to
046	1319-2252-01	CHAIN WHEEL	£39.31	Add to
046	1319-2252-01	CHAIN WHEEL	£39.31	Add to
047	9699-0062-02	WASHER BRB 8,4X22X1,5	£2.06	Add to
047	9699-0062-02	WASHER BRB 8,4X22X1,5	£2.06	Add to
048	1319-2262-01	Clamp	£7.31	Add to
048	1319-2262-01	Clamp	£7.31	Add to
049	9915-0808-15	Screw	£4.01	Add to
049	9915-0808-15	Screw	£4.01	Add to
050	9997-0616-16	SCREW M6S M6 x 16	£4.01	Add to
050	9997-0616-16	SCREW M6S M6 x 16	£4.01	Add to
052	9997-0620-12	***	N/A	POA
052	9997-0620-12	***	N/A	POA
053	9699-0025-02	Bricka Washer	N/A	POA
053	9699-0025-02	Bricka Washer	N/A	POA
054	1319-1525-01	KEY	£23.72	Add to
054	1319-1525-01	KEY	£23.72	Add to
