Lawn sweeper

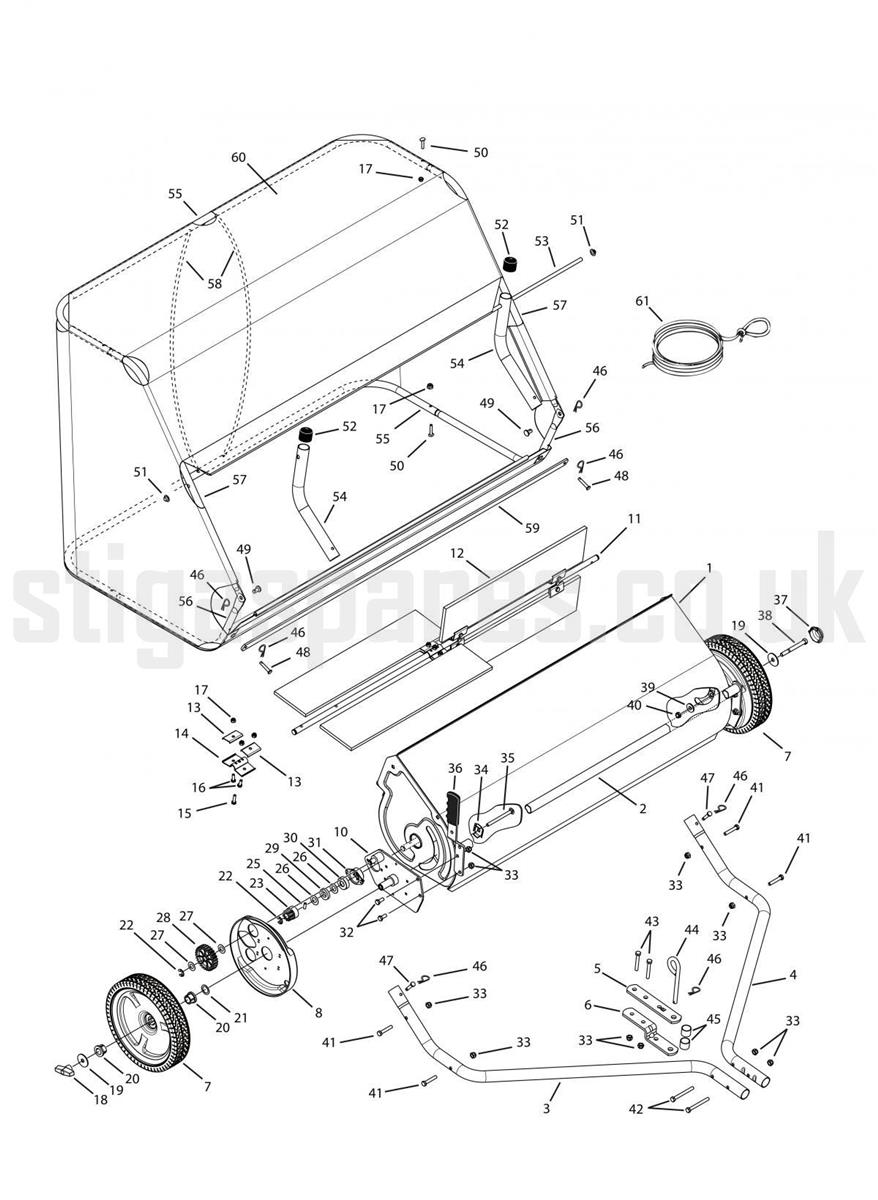

Lawn sweeper assembly details for Stiga GRASS & LEAF COLLECTOR 42 13-3926-11 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1319-2873-01	HOUSING ASSEMBLY 42"	£304.66	Add to
002	1319-2843-01	HEIGHT ADJUST TUBE	£83.40	Add to
003	1319-2627-01	HITCH TUBE R.H.	£74.94	Add to
004	1319-2628-01	HITCH TUBE L.H.	£76.04	Add to
005	1319-2613-01	HITCH BRACKET (STRAIGHT)	£12.68	Add to
006	1319-2606-01	HITCH BRACKET	£43.06	Add to
007	1319-2874-01	WHEEL	£103.58	Add to
008	1319-2875-01	DUST COVER	£14.05	Add to
009	1319-2876-01	WHEEL DRIVE-LH	£142.03	Add to
010	1319-2877-01	WHEEL DRIVE-RH	£142.03	Add to
011	1319-2878-01	BRUSH SHAFT	£64.32	Add to
012	1319-2630-01	BRUSH 42"	£41.16	Add to
013	1319-2516-01	BRUSH RETAINER (SINGLE)	£9.14	Add to
014	1319-2515-01	BRUSH RETAINER (DOUBLE)	£14.45	Add to
015	9988-3525-16	SCREW U6S 1/4 UNC x 25	£2.74	Add to
016	9988-3519-16	Screw	N/A	POA
017	9743-3521-32	NUT	£2.32	Add to
018	1319-2535-01	WING KNOB	£11.27	Add to
019	1319-2590-01	FLAT WASHER	£3.96	Add to
020	1319-2581-01	WHEEL BEARING	£17.09	Add to
021	1319-2562-01	FLAT WASHER	£4.10	Add to
022	1319-2836-01	E CIRCLIP	£2.47	Add to
023	1319-2879-01	R/H GEAR PINION	£8.14	Add to
024	1319-2880-01	L/H GEAR PINION	£8.14	Add to
025	1319-2659-01	DOWEL PIN-DRIVE	£7.11	Add to
026	1319-2881-01	WASHER	£2.32	Add to
027	1319-2565-01	WASHER	£6.69	Add to
028	1319-2882-01	GEAR WHEEL 27T	£7.63	Add to
029	1319-2883-01	SPACER	£13.91	Add to
030	1319-2618-01	BALL BEARING	£41.16	Add to
031	1319-2884-01	BEARING RETAINER	£3.00	Add to
032	9988-3619-16	SCREW U6S 5/16 UNC x 19	£2.47	Add to
033	120001085/0	NUT 5/16" UNC	£5.60	Add to
034	1319-2885-01	BRACKET	£11.05	Add to
035	1319-2886-01	CARRIAGE BOLT	£2.06	Add to
036	1319-2551-01	GRIP	£10.91	Add to
037	1319-2887-01	Hub Cap	£4.54	Add to
038	1319-2545-01	HEX BOLT	£8.04	Add to
039	1319-2888-01	SPACER	£16.62	Add to
040	9743-5221-32	Nut	N/A	POA
041	9988-3645-16	Screw	£4.01	Add to
042	9988-3676-12	Screw	£4.01	Add to
043	9988-3676-12	Screw	£4.01	Add to
044	1319-2507-01	HITCH PIN	£22.35	Add to
045	1319-2889-01	SPACER	£76.59	Add to
046	9598-0002-02	SPRING PIN 2.5mm L=47mm	£2.06	Add to
047	1319-2663-01	CLEVIS PIN	£9.14	Add to
048	1319-2664-01	CLEVIS PIN	£13.37	Add to
049	1319-2665-01	HOPPER BAG	£250.75	Add to
050	1319-2557-01	CURVED HEAD BOLT	£7.63	Add to
051	1319-2620-01	NUT	£4.37	Add to
052	1319-2619-01	VINYL CAP	£3.69	Add to
053	1319-2632-01	HOPPER BAG PIVOT ROD	£11.59	Add to
054	1319-2890-01	TUBE	£19.12	Add to
055	1319-2728-01	REAR FRAME	£31.63	Add to
056	1319-2729-01	FRONT LOWER FRAME	£31.58	Add to
057	1319-2891-01	FRONT FRAME	£50.70	Add to
058	1319-2547-01	HOPPER SUPPORT ROD	£19.22	Add to
059	1319-2610-01	BAG FRAME STRAP	£46.21	Add to
060	1319-2892-01	42" SWEEPER BAG ASSEMBLY	£245.56	Add to
061	1319-2536-01	HOPPER ROPE	£10.36	Add to
