Lawn rake (1)

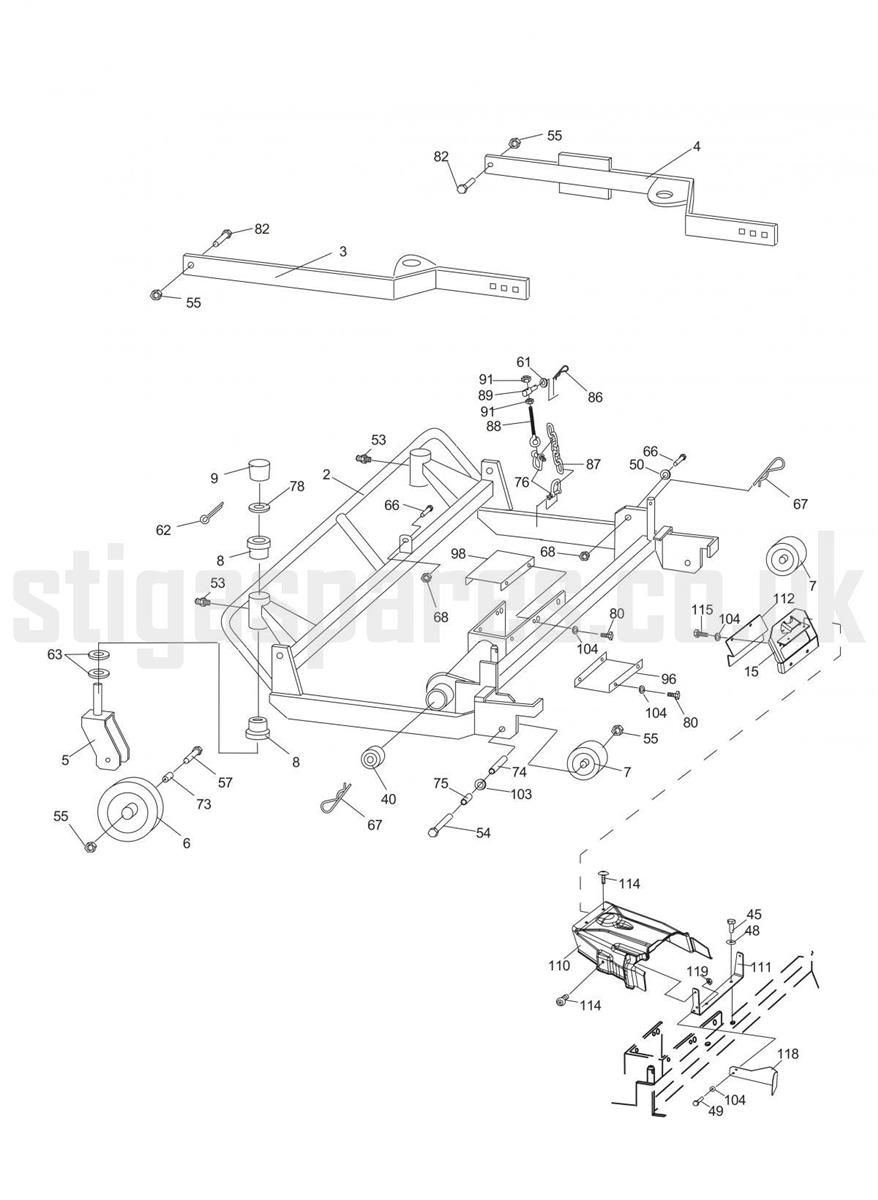

Lawn rake (1) assembly details for Stiga FLAIL MOWER - Park 2+4WD 13-0976-11 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	1319-1863-02	FRAME	£1,464.24	Add to
003	1319-1867-01	SIDE PLATE-LH	£77.95	Add to
004	1319-1868-01	SIDE PLATE-RH	£75.23	Add to
005	1319-1708-01	WHEEL FORK	£114.74	Add to
006	1134-3520-01	SUPPORT WHEEL	£82.05	Add to
007	1134-0305-00	CASING WHEEL	£31.63	Add to
008	1134-9024-01	PLASTIC BUSH (4 PCS)	£19.66	Add to
009	1319-1709-01	DUST CAP	£11.87	Add to
015	1319-1866-02	LIFTING POINT	£75.89	Add to
034	122446183/0	SPRING	£9.68	Add to
040	9549-0056-01	BALL BEARING	£15.76	Add to
045	112792610/0	HEX-HEAD SCREW M8 x 16	£2.02	Add to
048	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
049	112791200/1	SCREW TE M6 x 16	£1.79	Add to
050	112521370/0	WASHER M12 13 24 x 2.5	£2.06	Add to
052	9997-1035-16	SCREW M6S M10 x 35	£3.28	Add to
053	112379511/0	STRAIGHT GREASE NIPPLE M6 x 1	£2.06	Add to
054	112794970/0	HEX-HEAD SCREW M10 x 90	£3.15	Add to
055	112156602/0	LOW SELF-LOCKING NUT M10	£1.79	Add to
057	9997-1080-12	SCREW M6S M10 x 80	£4.52	Add to
061	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
062	9599-0085-02	SPLIT PIN	£2.47	Add to
063	9699-0042-02	WASHER 20 x 36 x 3	£2.47	Add to
064	9739-1031-22	NUT M10	£2.32	Add to
066	1134-0240-00	SCREW	£9.14	Add to
067	9598-0003-02	SPRING PIN	£2.32	Add to
068	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
073	1319-1735-01	COLLAR	£12.00	Add to
074	1319-1870-01	COLLAR	£9.54	Add to
075	1319-1871-01	SUPPORTN TUBE (OBSOLETE)	N/A
076	1134-2629-01	LIFT LINK	£15.69	Add to
078	9699-0042-02	WASHER 20 x 36 x 3	£2.47	Add to
080	112790780/0	HEX HEAD SCREW M6X12	£3.64	Add to
082	9997-1025-16	SCREW M6S M10 x 25	£2.06	Add to
086	1319-1692-01	SPRING PIN	£12.22	Add to
087	1319-1873-01	CHAIN	£49.34	Add to
088	9405-0031-00	EYE-BOLT	£8.32	Add to
089	1134-0576-00	PIN	£35.71	Add to
091	112293200/0	HEXAGON NUT M8 UNI 5588 ACC.6S	£1.86	Add to
096	1319-1869-01	DRIVE SHAFT PLATE	£24.63	Add to
098	1319-1859-01	DRIVE SHAFT PLATE	£24.63	Add to
103	112521390/0	WASHER M16 17 x 30 x 3	£1.91	Add to
104	112521330/0	WASHER M6 6.4 X 12 X 1.6	£2.06	Add to
107	1319-1903-01	KEY	£8.87	Add to
109	1134-6912-01	ELECTRIC ACTUATOR	£339.96	Add to
110	337060010/0	FLAIL/PARK BELT GUARD	£99.76	Add to
111	118890001/0	MOUNTING PLATE	£71.79	Add to
112	118890002/0	GUARD	£34.35	Add to
113	1319-2017-01	HAND GRIP	£14.18	Add to
114	9893-0616-16	SCREW M6 x 16	£2.47	Add to
115	9959-0612-16	SCREW M6SF M6 x 12 TL	£1.79	Add to
118	118890003/0	BELT GUARD	£26.93	Add to
119	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
