Oil Pan

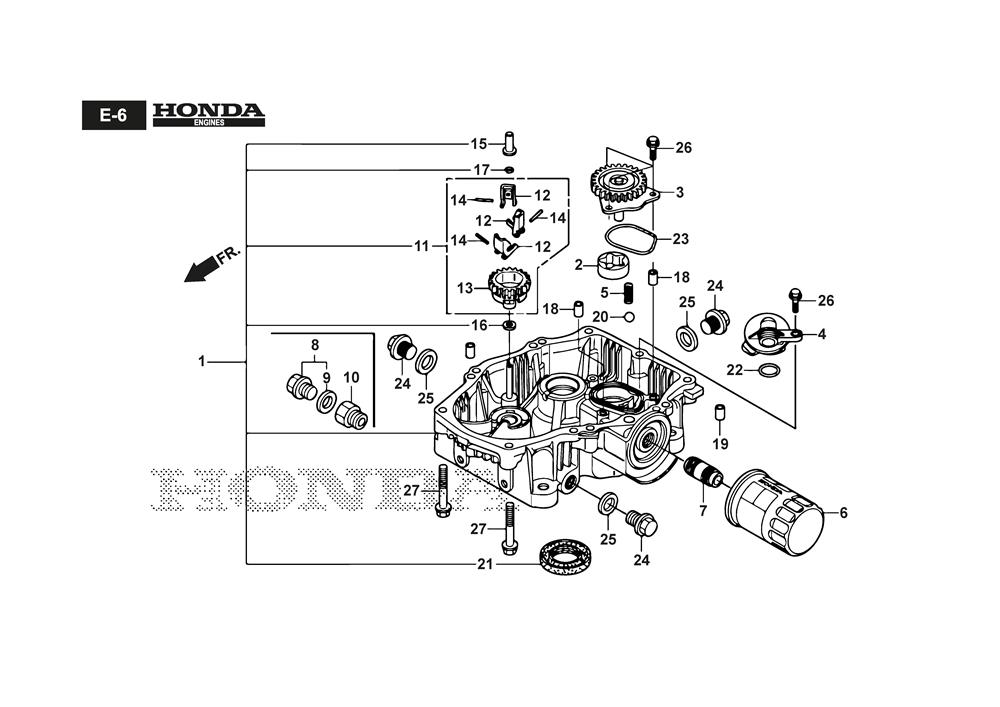

Oil Pan assembly details for Stiga Park Pro 540 IX (13-6471-11) 2019 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118551716/0PAN ASSY., OIL£1,172.20 Add to
002118551887/0ROTOR, OIL PUMP OUTER£41.16 Add to
003118551888/0GEAR COMP., OIL PUMP£211.50 Add to
004118551889/0STRAINER COMP., OIL£68.42 Add to
005118551890/0SPRING, RELIEF VALVE£4.52 Add to
006118551895/0CARTRIDGE, OIL FILTER (MAHLE TENNEX)£43.99 Add to
007118551900/0HOLDER, OIL FILTER£12.14 Add to
008118551902/0CAP ASSY., DRAIN£12.82 Add to
010118551915/0ADAPTER, OIL DRAIN EXTENSION£32.99 Add to
011118551967/0GOVERNOR ASSY.£42.53 Add to
017118552244/0GOVERNOR HOLDER CLIP£1.74 Add to
020118552247/0BALL, STEEL, #15 (15/32)£4.52 Add to
021118552253/0OIL SEAL, 38X58X9£16.50 Add to
022118552261/0O-RING, 14.8X2.4£4.10 Add to
023118552265/0O-RING, OIL PUMP£8.19 Add to
024118552272/0BOLT, DRAIN PLUG, 20MM£7.63 Add to
025118552274/0WASHER, DRAIN PLUG, 20MM£2.87 Add to
