Steering

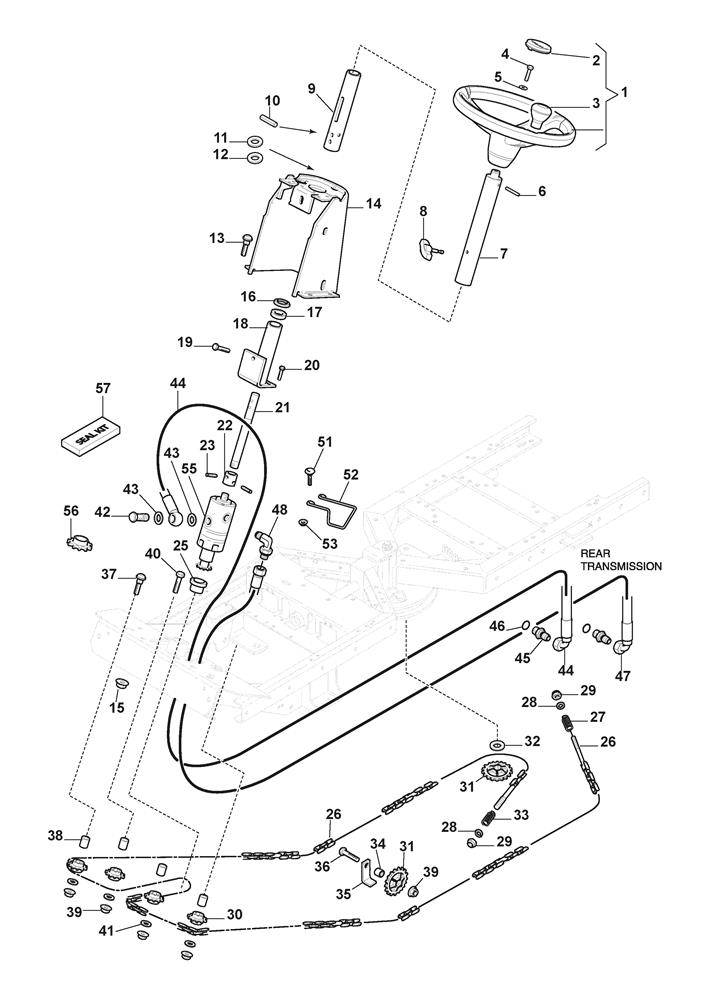

Steering assembly details for Stiga Park 340 PWX (2F6130621/S18) 2019 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001337961200/0STEERING WHEEL [BLACK]£287.40 Add to
002337580550/0STEERING WHEEL PLATE£8.75 Add to
003187593701/0STEERING WHEEL KNOB£48.11 Add to
004112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
005112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
006112620299/0SPIROL FLEXIBLE PIN 6 x 45£1.91 Add to
007387520101/2UPPER STEERING COLUMN£92.23 Add to
008337394201/0WING NUT£13.64 Add to
009387520119/0LOWER STEERING COLUMN£74.87 Add to
0109595-0262-00LOCATING PIN£2.06 Add to
0119699-0103-02WASHER£2.47 Add to
0129699-0114-02WASHER 16 x 38 x 1£2.32 Add to
014387785241/1STEERING CONSOLE (YELLOW)£101.60 Add to
015112154220/0SELF-LOCK FLANGED NUT M8£3.03 Add to
0169695-0011-00WASHER 16 x 22 x 1£2.47 Add to
0179549-0017-00BALL BEARING£12.14 Add to
018387650007/1STEERING COLUMN ASSYN/A POA
0199945-0816-16SCREW M8 X 16£2.54 Add to
0209939-0612-16SCREW M6 x 12£2.32 Add to
021137033111/0STEERING ROD£47.97 Add to
0221134-4118-01COUPLING£22.49 Add to
0239595-0256-01LOCATING PIN£2.47 Add to
025137038014/0STEERING COLUMN BUSH£12.82 Add to
026387106407/0STEERING CHAIN ASSEMBLY£302.40 Add to
0271134-3817-02COMPRESSION SPRING£12.68 Add to
0289699-0090-02WASHER 8.4 x 18 x 1.5£2.32 Add to
029112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
0301134-2816-01SPROCKET£10.77 Add to
0311134-3547-01SPROCKET£12.96 Add to
0331134-3817-01COMPRESSION SPRING£12.96 Add to
0341134-0041-01BUSH£9.41 Add to
0351134-0046-00BRACKET£2.14 Add to
036112794300/0SCREW TE M10 x 30£1.91 Add to
0379897-1040-12SCREW M10 x 40£3.49 Add to
0381134-0041-02BUSH£10.09 Add to
0399739-1031-22NUT M10£2.32 Add to
040112794900/0HEX-HEAD SCREW M10 x 50£2.06 Add to
041112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
0421134-6323-01BANJO BOLT 3/8"£10.50 Add to
0431134-4948-02SEAL WASHER 3/8"£2.06 Add to
0451134-4282-01HYDRAULIC NIPPLE£46.61 Add to
0469404-0028-01O RING 11.89 x 1.98£4.78 Add to
0481134-7073-01HYDRAULIC COUPLING 90°£34.35 Add to
051112815200/0SCREW TTDQ M6X16£2.06 Add to
052137295200/0CENTRAL HOSE FIXING GUIDE£20.58 Add to
053112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
055187305502/0STEERING BOOSTER£1,185.82 Add to
0561139-2106-01PINION (STEERING BOOSTER)£148.89 Add to
0571139-2124-01SEAL KIT£135.19 Add to
