Chassis

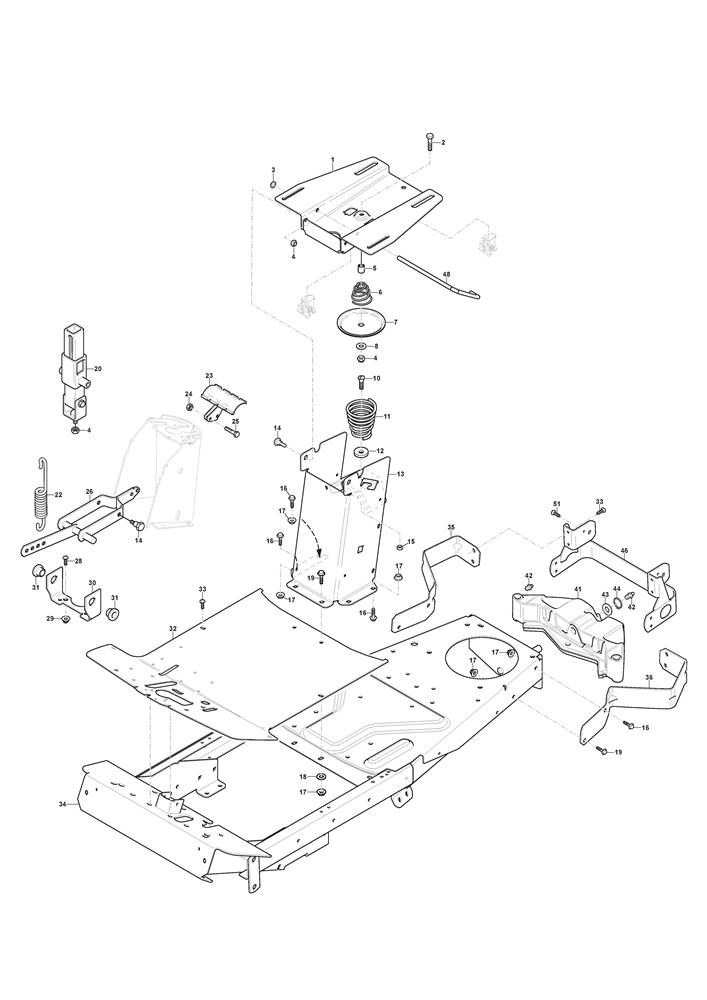

Chassis assembly details for Stiga Villa 12 (2F2700141/S16) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-5301-01	UPPER SEAT BRACKET	£109.29	Add to
002	112691115/0	HEX-HEAD SCREW M8 x 40	£2.06	Add to
003	112604899/0	STARLOCK WASHER RPCO 308 D=8	£2.06	Add to
004	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
005	1134-1565-06	SPACER	£11.32	Add to
006	1134-5302-01	SPRING	£8.87	Add to
007	1134-5299-01	PUSH PLATE	£17.86	Add to
008	9699-0090-02	WASHER 8.4 x 18 x 1.5	£2.32	Add to
010	9924-1235-19	SCREW MF6S M12 x 35	£4.23	Add to
012	137160001/0	SPACER WASHER	£10.26	Add to
013	1134-5296-04	SEAT BRACKET [YELLOW]	£163.80	Add to
014	1134-0240-00	SCREW	£9.14	Add to
015	112156603/0	SELF-LOCKING NUT M12	£2.06	Add to
016	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
017	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
018	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
019	9959-0825-16	SCREW FLANGED TE M6SF M8 x 25	£2.06	Add to
020	1134-4945-01	LIFT CATCH ASSEMBLY	£124.29	Add to
022	4231-0013-00	SPRING	£8.87	Add to
023	1134-4938-01	LIFT PEDAL	£24.95	Add to
024	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
026	387256053/0	LIFT LEVER ASSEMBLY	£76.59	Add to
028	9959-1025-16	SCREW M6SF M10 x 25 TL	£3.00	Add to
029	9739-1031-22	NUT M10	£2.32	Add to
030	1134-4117-01	BRACKET	£32.99	Add to
031	1134-2684-01	BUSH	£7.10	Add to
032	1134-5293-02	FLOOR PLATE	£161.04	Add to
033	9893-0616-16	SCREW M6 x 16	£2.47	Add to
034	387800059/0	BP VC FRONT FRAME ASSY	N/A	POA
035	387785215/0	ATTACHMENT-RH	£42.53	Add to
036	1134-6630-01	ATTACHMENT-LH	£42.53	Add to
041	1134-6703-01	REAR AXLE	£436.34	Add to
042	112379511/0	STRAIGHT GREASE NIPPLE M6 x 1	£2.06	Add to
043	9699-0088-02	WASHER	£2.47	Add to
044	112609260/0	CIRCLIP D=20	£2.02	Add to
046	387593601/0	HEAT GUARD	£98.40	Add to
048	1134-5454-01	CATCH ROD	£11.18	Add to
051	112735654/0	SELF-TAPPING SCREW M5 x 16	£2.74	Add to
