Transmission

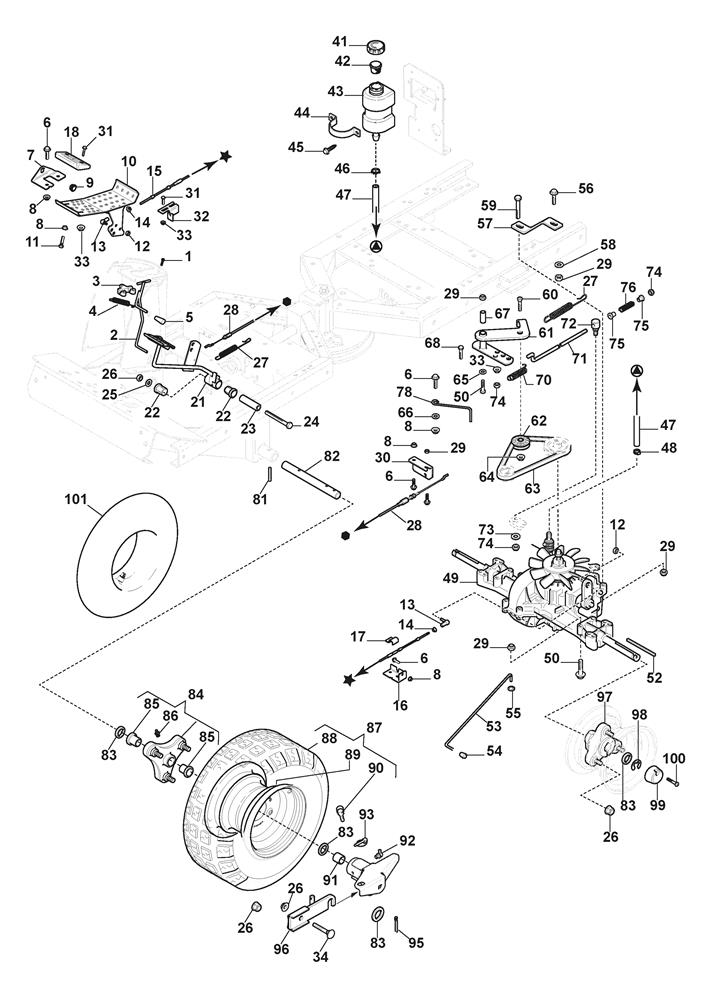

Transmission assembly details for Stiga Park 416 P VM (2F6220541/STX) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	112728697/0	SELF-TAPPING SCREW TORX K50 x 16	£2.06	Add to
002	1134-5353-01	BRAKE ROD	£29.61	Add to
003	1134-4002-01	BRAKE ROD ATTACHMENT	£12.27	Add to
004	1131-1497-01	BRAKE SPRING	£10.50	Add to
005	1134-2786-01	PLASTIC KNOB	£6.42	Add to
006	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
007	1134-2700-01	BRACKET	£17.45	Add to
008	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
009	1134-6313-01	BEARING	£7.36	Add to
010	1134-6353-01	IMPLEMENT PEDAL	£43.62	Add to
011	9997-0835-16	SCREW M6S 8 x 35	£2.32	Add to
012	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
013	9570-0001-00	ELBOW LINK	£18.90	Add to
014	9739-0531-22	NUT M5	£2.47	Add to
015	1134-2766-05	SPEED CONTROL CABLE	£76.59	Add to
016	1134-3395-01	ATTACHMENT BRACKET	£30.26	Add to
017	1134-2021-01	CLAMP	£7.36	Add to
018	1134-6340-02	FOOT REST	£7.92	Add to
021	1134-5655-01	BRAKE/CLUTCH PEDAL	£58.87	Add to
022	1134-9024-01	PLASTIC BUSH (4 PCS)	£19.66	Add to
023	1134-5677-02	SPACER	£11.04	Add to
024	9997-1070-12	SCREW M6S (M10 X 70)	£3.81	Add to
025	9699-0030-02	WASHER (10 X 26 X 2)	£2.14	Add to
026	9731-1031-22	LOCK NUT M6MF M10	£2.47	Add to
026	9739-1031-22	NUT M10	£2.32	Add to
027	4231-0013-00	SPRING	£8.87	Add to
028	187000211/1	BRAKE CABLE	£35.71	Add to
029	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
030	1134-6467-01	CABLE HOLDER	£6.55	Add to
031	9959-0620-16	SCREW	£2.32	Add to
032	1134-6317-01	WIRE BRACKET	£8.73	Add to
033	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
034	9898-1035-16	SCREW 10 x 35	£3.15	Add to
041	1134-2777-02	OIL TANK CAP	£16.78	Add to
042	1134-3734-01	VENT PLUG	£11.18	Add to
043	1134-2765-02	OIL TANK	£45.26	Add to
044	1134-2778-01	BAND	£14.18	Add to
045	9852-8013-16	SCREW	£2.47	Add to
046	9578-0023-04	HOSE CLAMP	£5.32	Add to
046	9578-0036-01	HOSE CLAMP	£3.41	Add to
047	1134-2779-03	TUBE	£35.71	Add to
049	1137-0126-01	TRANSAXLE K57V	£1,165.38	Add to
050	9960-0860-12	SCREW M8 x 60	£2.32	Add to
052	1134-2471-01	KEY	£9.41	Add to
053	1134-4015-01	PULL ROD	£11.59	Add to
054	1134-4014-01	KNOB	£5.19	Add to
055	112604896/0	STARLOCK WASHER D=6	£2.06	Add to
056	9959-0825-16	SCREW FLANGED TE M6SF M8 x 25	£2.06	Add to
057	1134-3913-01	STRUT BRACKET	£17.59	Add to
058	9699-0090-02	WASHER 8.4 x 18 x 1.5	£2.32	Add to
059	112691200/0	HEX-HEAD SCREW M8 x 45	£2.06	Add to
060	9924-1035-16	SCREW MF6S M10 x 35	£6.27	Add to
061	387205001/0	TENSION ARM ASSEMBLY	£46.61	Add to
062	387605028/0	TENSION ROLLER	£46.79	Add to
063	1134-9058-01	TRANSMISSION BELT	£23.04	Add to
064	112295200/0	HEXAGON NUT M10	£1.79	Add to
065	112583500/0	WASHER M8 UNI 1751 WZ	£2.06	Add to
066	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
067	137038008/0	TRANSMISSION PULLEY BUSH	£9.00	Add to
070	1134-6414-01	SPRING	£5.73	Add to
071	1134-3377-02	CONTROL ROD	£16.91	Add to
072	1134-4171-01	PIVOT PIN	£17.45	Add to
073	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
074	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
075	1134-3456-01	BUSH	£6.14	Add to
076	1134-4183-01	COMPRESSION SPRING	£8.73	Add to
078	1134-3289-02	BELT GUIDE	£21.40	Add to
081	112645710/0	ROLL PIN D=6 x 32	£2.47	Add to
082	1134-0075-00	FRONT AXLE	£19.09	Add to
083	1134-0341-01	WASHER	£7.10	Add to
084	1134-4844-05	WHEEL HUB ASSEMBLY	£60.24	Add to
085	137038009/0	WHEEL BUSH	£6.09	Add to
086	112379511/0	STRAIGHT GREASE NIPPLE M6 x 1	£2.06	Add to
088	9545-0116-00	TYRE 16 x 7.50-8	£86.13	Add to
089	187000454/0	WHEEL RIM 5.5" x 8"	£84.77	Add to
090	9545-0500-00	VALVE ASSY.	£5.73	Add to
091	9548-0026-01	BEARING 20E7x26-20	£32.99	Add to
093	1137-0077-01	LOCKING PIN	£3.81	Add to
094	9699-0042-02	WASHER 20 x 36 x 3	£2.47	Add to
095	9599-0080-02	COTTER PIN	£2.47	Add to
096	1134-7465-01	ATTACHMENT HOOK PLATES [LH & RH]	£53.42	Add to
097	1134-4844-02	WHEEL HUB ASSEMBLY	£57.52	Add to
