Body

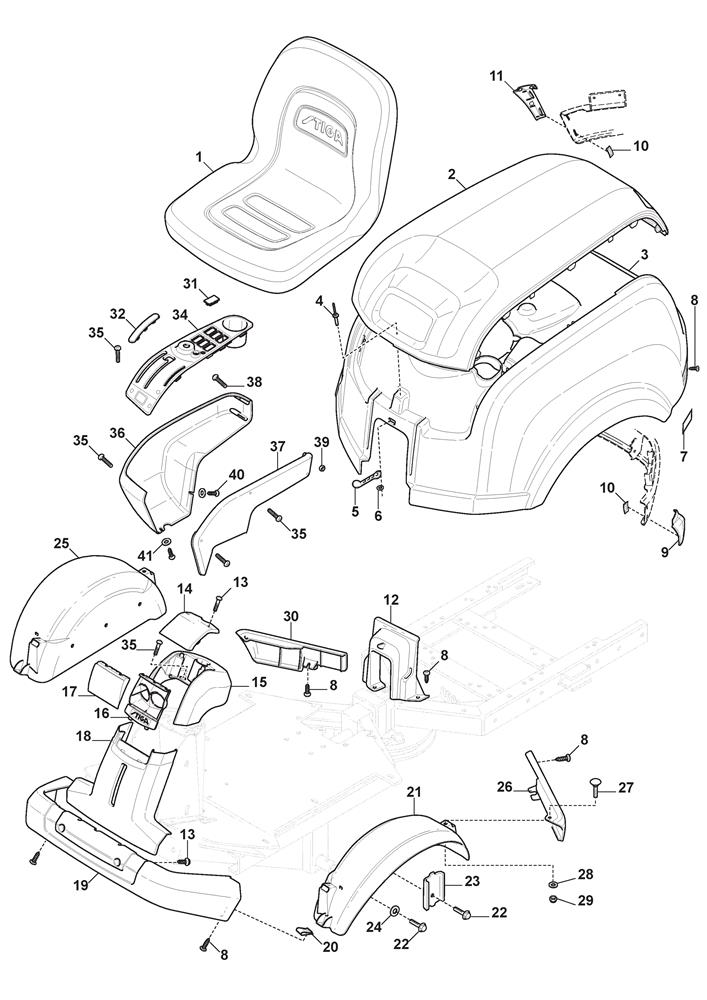

Body assembly details for Stiga Park 416 P VM (2F6220541/ST1) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	137722604/0	SEAT [VILLA/PC/PCH]	£338.69	Add to
002	337110334/0	TOP ENGINE COVER [GREY]	£77.95	Add to
003	337076805/0	ENGINE HOOD PCH YELLOW	£313.70	Add to
004	9632-0513-00	POP RIVET 3.2 x 20	£2.06	Add to
005	1134-9028-01	RUBBER STRAP (3 PCS)	£26.46	Add to
006	9699-0120-02	WASHER 3.2 x 14 x 1.5	£2.32	Add to
007	337580302/0	PLATE [YELLOW]	£7.63	Add to
008	9893-0616-16	SCREW M6 x 16	£2.47	Add to
009	337110336/0	LEFT BUMPER END	£15.00	Add to
010	1134-6310-01	CLIP	£2.32	Add to
011	337110335/0	RIGHT BUMPER END	£14.32	Add to
012	1134-6241-01	HOOD SUPPORT	£42.53	Add to
013	112728697/0	SELF-TAPPING SCREW TORX K50 x 16	£2.06	Add to
014	337110330/0	TOP PANEL [GREY]	£6.27	Add to
015	1137-0051-01	UPPER FRONT PANEL	£21.12	Add to
016	337110329/0	FRONT LAMP COVER [GREY]	£6.23	Add to
017	1137-0054-01	LAMP GLASS	£8.45	Add to
018	1137-0050-01	LOWER FRONT PANEL	£22.91	Add to
019	337502507/0	FRONT BUMPER [GREY]	£45.26	Add to
020	1134-4176-01	CLIP	£5.19	Add to
021	337491251/0	LEFT FRONT MUDGUARD [GREY]	£110.66	Add to
022	9945-0816-16	SCREW M8 X 16	£2.54	Add to
023	1137-0088-01	SUPPORT PLATE	£2.74	Add to
024	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
025	337491250/0	RIGHT FRONT MUDGUARD [GREY]	£117.47	Add to
026	337110331/0	LEFT MOULDING [GREY]	£57.15	Add to
027	112815200/0	SCREW TTDQ M6X16	£2.06	Add to
028	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
029	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
030	337110332/0	RIGHT MOULDING [GREY]	£54.79	Add to
031	1134-4129-01	COVER	£6.14	Add to
032	1134-4154-01	GEAR LEVER COVER	£8.73	Add to
034	1134-6096-05	DASHBOARD	£117.47	Add to
035	9946-0525-16	SCREW M5 x 25	£2.47	Add to
036	1134-3979-01	OUTER COVER	£102.48	Add to
037	1134-4360-01	INNER COVER	£67.05	Add to
038	9950-0570-12	SCREW M5 x 70	£2.74	Add to
039	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
040	9840-8013-16	SCREW 4.8 x 13	£2.06	Add to
041	9699-0099-02	WASHER 5.2 x 14 x 1.0	£2.18	Add to
