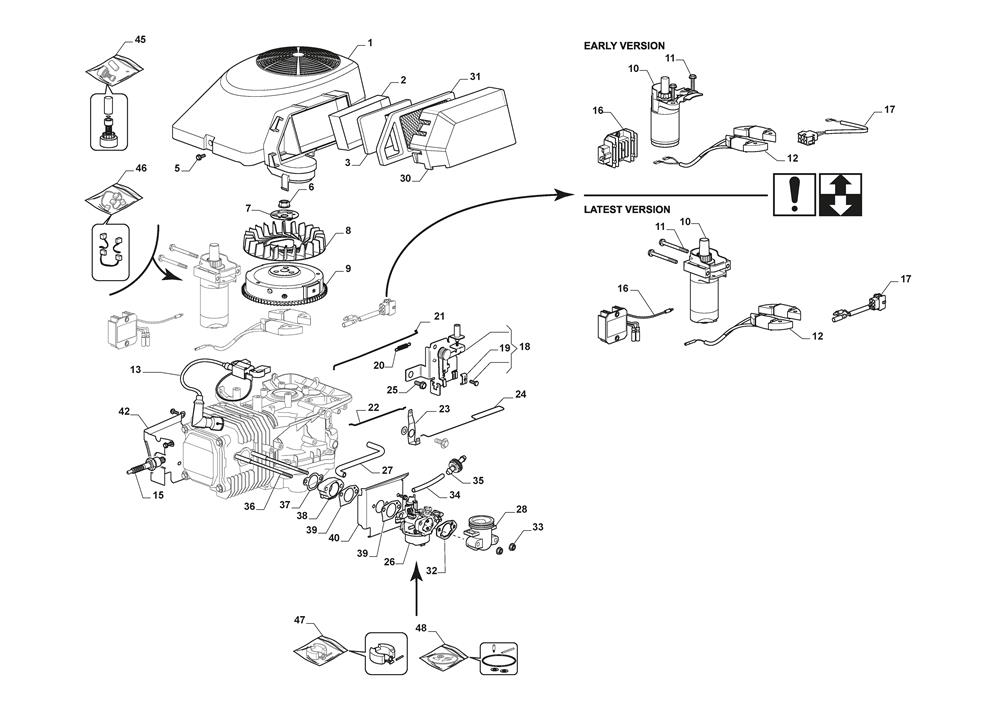

Engine - Carburettor, Air Cleaner Assy

Engine - Carburettor, Air Cleaner Assy assembly details for Stiga Park 120 (2F5820241/S16) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118551217/0FAN COVER£50.80 Add to
002118551273/0INNER COVER£3.41 Add to
003118550527/0PRE-FILTER£7.36 Add to
005112791213/1SCREW M6 X 18£1.74 Add to
006118550237/0NUT£3.69 Add to
007118550236/0STARTER CUP£6.69 Add to
008118550235/1FLYWHEEL FAN£26.18 Add to
009118550234/2FLYWHEEL£231.93 Add to
010118550214/0STARTER MOTOR (EARLY VERSION)£162.96 Add to
010118551440/0STARTER MOTOR (LATEST VERSION)£135.19 Add to
011119216047/0HEX-HEAD SCREW M8 X 35£2.06 Add to
011119216047/0HEX-HEAD SCREW M8 X 35£2.06 Add to
012118550210/1CHARGE COIL ASSEMBLY (EARLY VERSION)£60.24 Add to
012118551441/0CHARGE COIL ASSEMBLY (LATEST VERSION)£58.87 Add to
013118550209/1IGNITION COIL (EARLY VERSION)£43.89 Add to
013118551438/0IGNITION COIL (LATEST VERSION)£45.26 Add to
0159400-0244-00SPARK PLUG [CHAMPION RC12YC]£6.35 Add to
016118550208/1RECTIFIER (EARLY VERSION)£77.95 Add to
016118551428/1RECTIFIER (LATEST VERSION)£58.87 Add to
017118550207/1OUTPUT WIRE-RECTIFIER (EARLY VERSION)£13.37 Add to
017118551439/0OUTPUT WIRE-RECTIFIER (LATEST VERSION)£13.23 Add to
018118550331/1REMOTE CONTROL ASSEMBLY£42.53 Add to
020118550213/0SPRING£2.47 Add to
021118551219/0GOVERNOR ROD£5.73 Add to
022118551218/0CHOKE ROD£5.19 Add to
023118551267/0CHOKE LEVER£6.47 Add to
024118551221/0THROTTLE ROD£3.41 Add to
026118551513/0CARBURETTOR£84.77 Add to
027118550225/1BREATHER FUEL PIPE£9.28 Add to
028118551512/0INTAKE MANIFOLD£20.31 Add to
030118550322/0AIR FILTER COVER£32.99 Add to
031118550321/0AIR FILTER£19.62 Add to
032118550764/0CARBURETTOR GASKET£6.01 Add to
033112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
034118551514/0FUEL PIPE£6.69 Add to
035118550427/0FUEL FILTER£5.87 Add to
036118551279/0STUD BOLT£3.55 Add to
037118551263/0INTAKE MANIFOLD GASKET£2.18 Add to
038118550220/0ENGINE GUARD ASSEMBLY£27.27 Add to
039118551262/0CARBURETTOR GASKET£2.18 Add to
040118551259/0GUARD£17.72 Add to
045118550365/1STARTER DRIVE KIT£52.06 Add to
046118550332/1BRUSH HOLD£35.71 Add to
047118550440/0CARBURETTOR FLOAT KIT£10.77 Add to
048118550442/0CARBURETTOR GASKET SET£15.36 Add to
