Electrical System

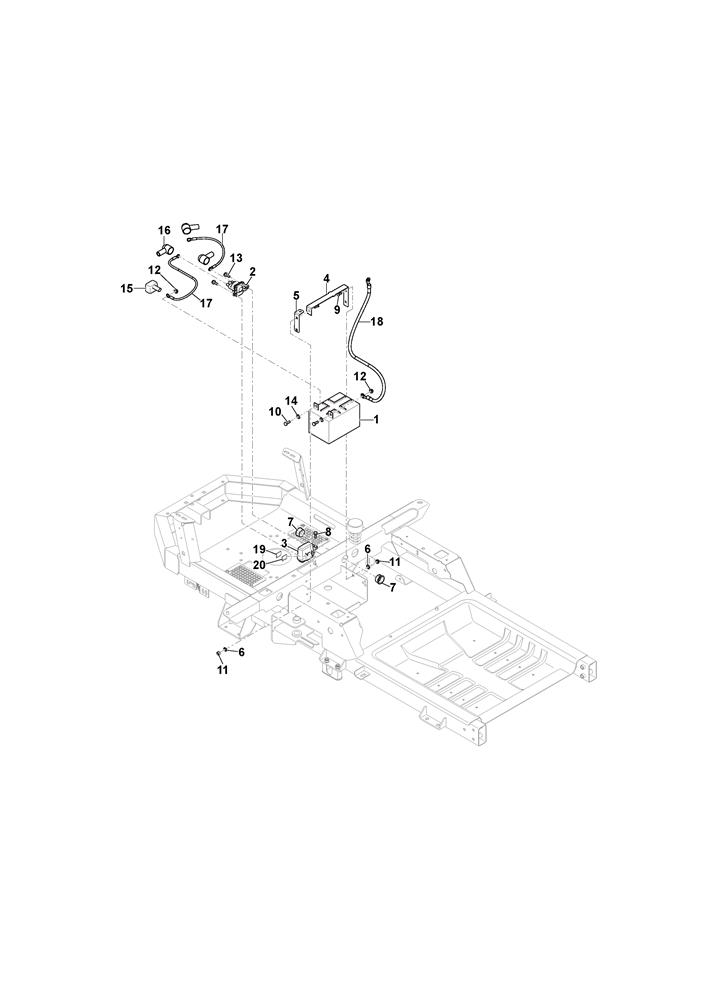

Electrical System assembly details for Stiga ZT 5132 T (2F1020821/S17) 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118830007/0BATTERY 12V 12AH ( NO RETURNS)£122.47 Add to
002118830121/0SOLENOID£76.59 Add to
003118830277/0FUSE AND RELAY HOLDER£170.61 Add to
004118830249/0BATTERY BRACKET£14.32 Add to
005118830265/0BATTERY BRACKET£12.00 Add to
006118830662/0NUT£5.19 Add to
007118830328/0BUSH£4.91 Add to
008118830673/0SCREW£2.71 Add to
009118830594/0BOLT£2.71 Add to
010118830560/0BOLT£2.71 Add to
011118830654/0NUT£5.05 Add to
012118830636/0NUT£2.71 Add to
013118830673/0SCREW£2.71 Add to
014118830616/0WASHER£5.05 Add to
015118830177/0INSULATOR GUARD£14.18 Add to
016118830677/0TERMINAL CAP£6.42 Add to
017118830123/0BATTERY CABLE [+]£12.96 Add to
018118830542/0BATTERY CABLE [-]£27.27 Add to
019133340040/0FUSE 10A£2.47 Add to
020133340036/0FUSE 25A£2.06 Add to
