Electrical System

Electrical System assembly details for Stiga ZT 3107 T (2F1020611/S17) 2017 model

Parts list

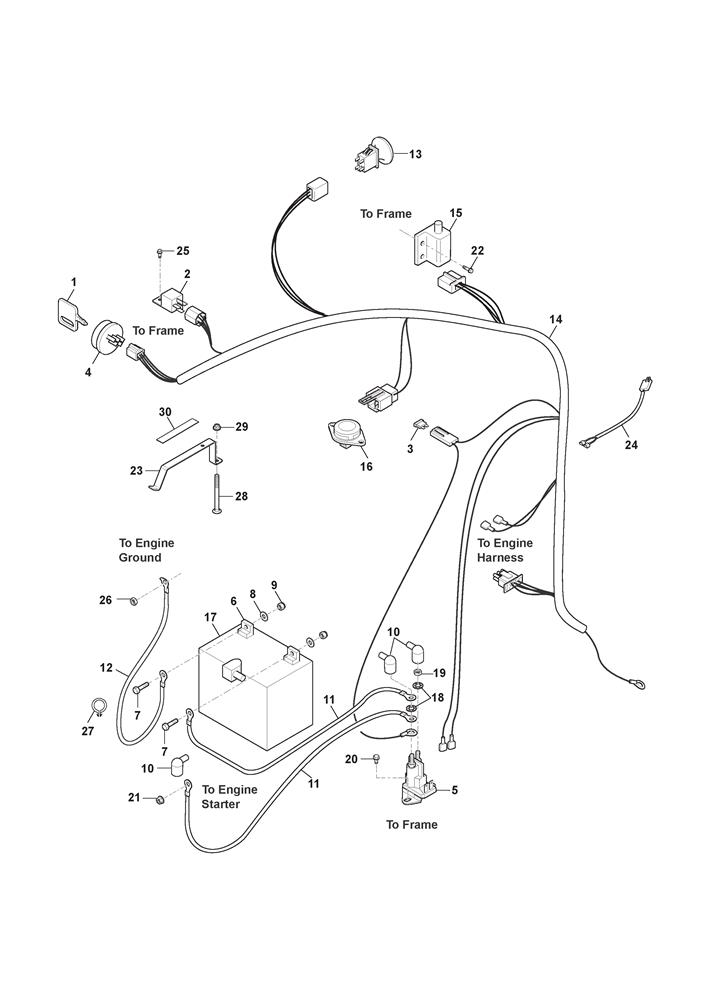

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118830126/0IGNITION KEY£7.78 Add to
002118830022/0RELAY£42.53 Add to
0031134-3496-07FUSE 30A£5.05 Add to
004118830030/0IGNITION SWITCH ASSEMBLY£49.34 Add to
005118830121/0SOLENOID£76.59 Add to
006118830007/0BATTERY 12V 12AH ( NO RETURNS)£122.47 Add to
007118830560/0BOLT£2.71 Add to
008118830616/0WASHER£5.05 Add to
009118830640/0NUT£3.15 Add to
010118830677/0TERMINAL CAP£6.42 Add to
011118830123/0BATTERY CABLE [+]£12.96 Add to
012118830089/0GROUND CABLE£59.99 Add to
013118830109/0CLUTCH SWITCH£75.23 Add to
014118830141/0WIRING HARNESS£175.19 Add to
015118830032/0MICROSWITCH [DOUBLE POLE N.O./N.O.]£32.99 Add to
016118830034/0MICROSWITCH [SNAP MOUNTING N.O.]£143.37 Add to
017118830177/0INSULATOR GUARD£14.18 Add to
018118830601/0WASHER£3.00 Add to
019118830652/0NUT£2.74 Add to
020118830673/0SCREW£2.71 Add to
021118830654/0NUT£5.05 Add to
022118830666/0SCREW£2.71 Add to
023118830104/0BATTERY STRAP£21.26 Add to
024118830348/0CLUTCH CABLE£66.29 Add to
025118830676/0SCREW£2.71 Add to
026118830021/0HOSE CLAMP£5.05 Add to
027118830159/0CARRIAGE BOLT .25-20 x 4.50£3.69 Add to
028118830632/0NUT£4.23 Add to
029118830334/0SAFETY DECAL£7.63 Add to
030118830179/0CABLE TIE LG 5 1/2£4.91 Add to
031118830122/0CABLE, POS W/(2)1/4 RING 21.5LG£16.22 Add to
