Seat and Steering Wheel

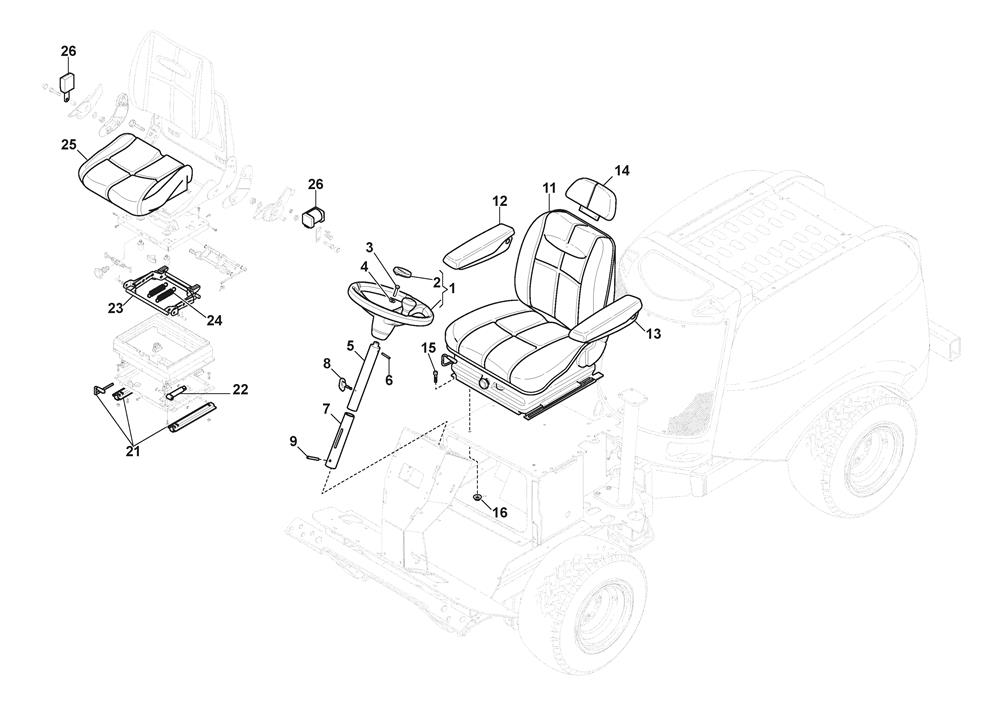

Seat and Steering Wheel assembly details for Stiga TITAN 740 DCR 2017 (13-7462-11) 2017 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	337961200/0	STEERING WHEEL [BLACK]	£287.40	Add to
002	337580550/0	STEERING WHEEL PLATE	£8.75	Add to
003	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
004	112583500/0	WASHER M8 UNI 1751 WZ	£2.06	Add to
005	387520101/1	UPPER STEERING COLUMN	£95.67	Add to
006	112620300/0	SPIROL PIN 6 x 50	£2.02	Add to
007	1134-5216-01	INNER STEERING TUBE	£87.50	Add to
008	337394201/0	WING NUT	£13.64	Add to
011	1134-7215-01	SEAT	£1,590.14	Add to
012	1134-7532-02	ARM REST R/H	£170.61	Add to
013	1134-7532-01	ARM REST L/H	£170.61	Add to
014	1134-7258-01	NECK REST	£109.88	Add to
015	9930-0820-16	SCREW	£2.06	Add to
016	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
021	1139-0031-01	SEAT RAILS C/W ADJUSTING LEVER	£143.37	Add to
022	1139-0028-01	SEAT DAMPER	£79.98	Add to
023	1139-0032-01	SPRING FRAME	£211.50	Add to
024	1139-0029-01	SPRING	£17.45	Add to
025	1139-0036-01	BOTTOM SEAT	£393.97	Add to
026	1134-7604-01	SAFETY BELT	£233.44	Add to
