Cabin

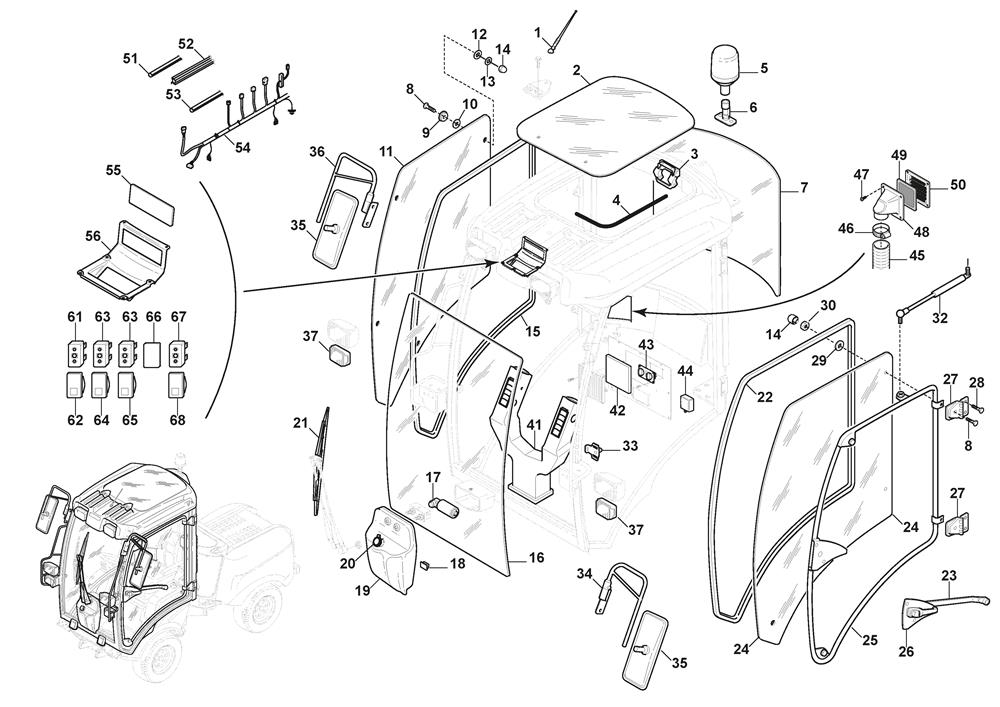

Cabin assembly details for Stiga TITAN 740 DCR 2017 (13-7462-11) 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1319-1131-01	ANTENN	£102.01	Add to
002	1319-1174-01	UPPER GLASS	£674.81	Add to
003	1319-1175-01	HANDLE	£129.74	Add to
005	082-688-01	WARNING LIGHT	£220.85	Add to
006	1319-1127-01	SPACER	£7.63	Add to
007	1319-1137-01	REAR GLASS	£1,853.54	Add to
009	1319-1158-01	PLATE	£9.07	Add to
010	1319-1160-01	RUBBER GASKET	£2.74	Add to
011	1319-1136-01	SIDE GLASS R/H	£804.27	Add to
012	1319-1178-01	GASKET	£5.19	Add to
013	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
014	1319-1177-01	NUT COVER	£2.06	Add to
015	1319-1142-01	RUBBER SEAL (METRE)	£37.08	Add to
016	1319-1134-01	WIND SCREEN	£1,008.67	Add to
017	1319-1150-01	WIND SCREEN WIPER MOTOR	£545.36	Add to
019	1319-1190-01	WATER TANK	£225.12	Add to
021	1319-1151-01	WIND SCREEN WIPER ARM	£272.82	Add to
022	1319-1142-01	RUBBER SEAL (METRE)	£37.08	Add to
023	1319-1148-01	DOOR LOCK L/H	£415.91	Add to
024	1319-1135-01	DOOR GLASS L/H	£574.97	Add to
025	1319-1180-01	DOOR FRAME	£668.00	Add to
026	1319-1143-01	DOOR HANDLE W KEYS	£231.93	Add to
027	1319-1133-01	HINGE	£61.60	Add to
029	1319-1182-01	RUBBER GASKET	£3.00	Add to
032	1319-1132-01	GAS SPRING	£211.50	Add to
033	1319-1147-01	BOLT STRIKER	£45.26	Add to
034	1319-1124-01	MIRROR ARM L/H	£170.61	Add to
035	1319-1125-01	MIRROR	£129.74	Add to
036	1319-1123-01	MIRROR ARM R/H	£170.61	Add to
037	1319-1100-01	DIRECTION LIGHT	£150.18	Add to
041	1137-0844-01	PLASTIC DUCT INCL LOUVERS	£524.92	Add to
042	1139-0080-01	REC FILTER	£163.80	Add to
043	1139-0078-01	CONTROL PANEL	£409.09	Add to
044	1139-0077-01	THERMO SWITCH	£409.09	Add to
045	1135-2954-01	HOSE	£101.22	Add to
046	085-018-01	HOSE CLAMP 50-65 ABA	£8.15	Add to
047	9893-0616-16	SCREW M6 x 16	£2.47	Add to
049	1319-1171-01	AIR FILTER	£57.52	Add to
050	1319-1170-01	FILTER GRID	£161.04	Add to
053	084-237-01	SEALING STRIP 710610	£8.45	Add to
054	1319-1115-01	FRONT LIGHT CABLES	£129.74	Add to
055	1319-1104-01	COVER-WORK LIGHT	£61.60	Add to
061	1319-1111-01	SWITCH-WIND SCREEN WASHER	£87.50	Add to
063	1319-1109-01	SWITCH-WORK LAMPS	£95.67	Add to
064	1319-1108-01	COVER-BEACON	£48.50	Add to
065	1319-1104-01	COVER-WORK LIGHT	£61.60	Add to
067	1319-1110-01	SWITCH-WIND SCREEN WIPER	£95.72	Add to
068	1319-1106-01	COVER-WIPER	£49.60	Add to
