Engine 1

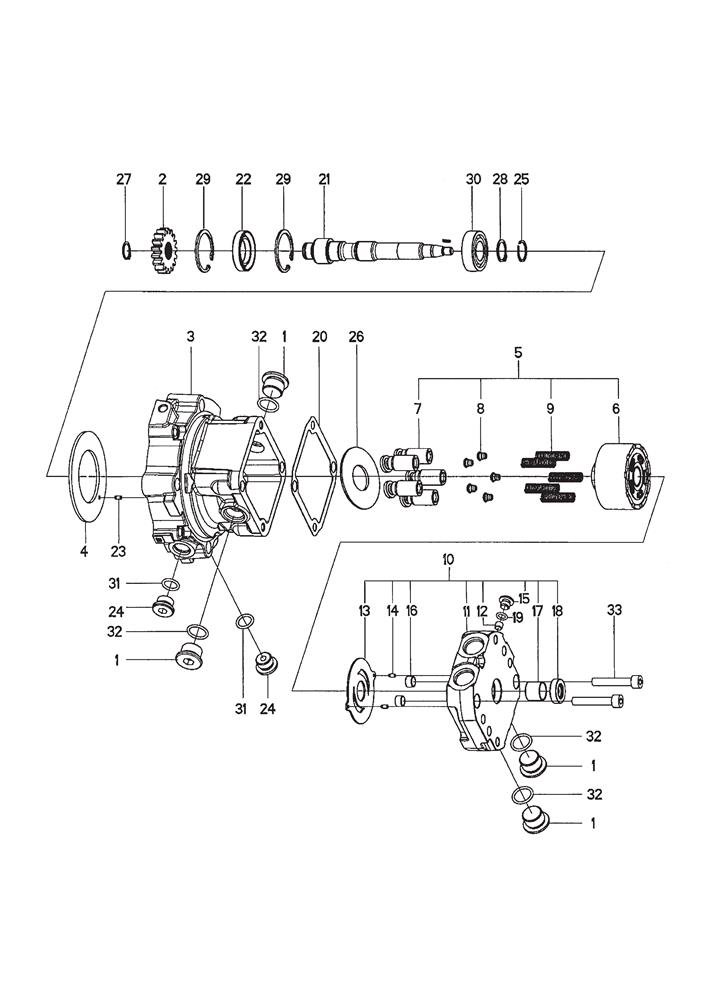

Engine 1 assembly details for Stiga TITAN 740 D 2017 (13-7460-11) 2017 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
004	1139-1627-01	PLATE	£66.11	Add to
005	1139-1628-01	PLUNGER BLOCK ASSEMBLY	£1,458.36	Add to
013	1139-1630-01	VALVE PLATE	£244.45	Add to
016	1139-1166-01	PIN	£4.94	Add to
018	1139-1614-01	SEAL	£56.15	Add to
020	1135-3981-01	GASKET WHEEL MOTOR	£16.22	Add to
022	1139-1633-01	OIL SEAL	£149.23	Add to
024	1139-1572-01	PLUG	£14.74	Add to
026	1139-1616-01	THRUST PLATE	£122.47	Add to
029	1139-1444-01	CIRCLIP	£7.57	Add to
031	1139-1115-01	O RING	£1.79	Add to
032	1139-1116-01	O RING	£2.87	Add to
